4x1 HDMI SWITCH 8K60 WITH AUDIO EXTRACTION

The Prolink 4-in, 1-out 8K HDMI Switch lets you connect and switch between four HDMI sources with ease. It supports video resolutions up to 8K @ 60Hz, ensuring excellent compatibility with modern displays and high-performance media devices. The unit provides Toslink optical and 5-pin Phoenix (L/R) audio outputs for audio extraction from your HDMI sources.

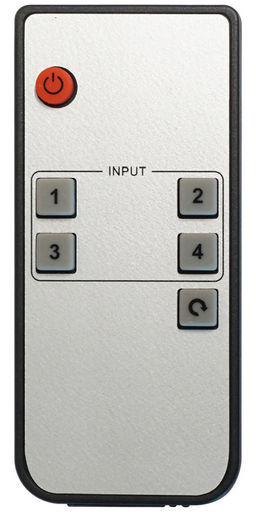

For advanced integration, the switch features a 4-pin DIP switch for EDID management, giving installers precise control over format and compatibility settings. It can be operated via front-panel buttons, the included IR remote, or RS-232 API commands for automation systems. A built-in HDMI signal generator further simplifies setup by enabling quick diagnosis of external device connections.

• HDMI 2.1 and HDCP 2.3 compliant, 48Gbps, 8K@60Hz (4:2:0).
• Supports HDR, HDR10, HDR10+, Dolby Vision.
• Control panel button, remote control or RS-232 API commands.
• Supports LPCM, Dolby True HD, Dolby Atmos, DTS-HD, Audio.

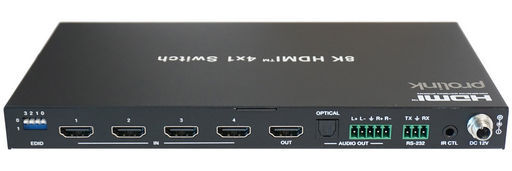

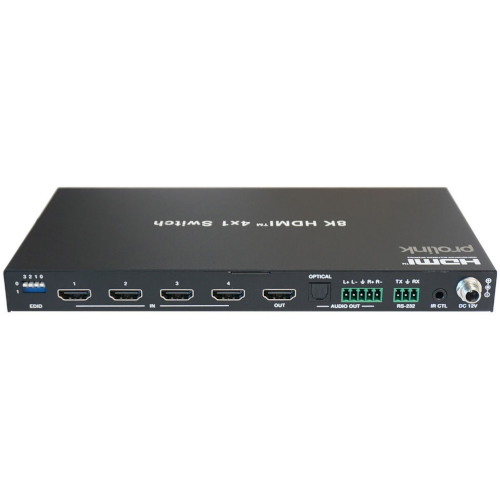

• Toslink and 5-pin phoenix (L+/L-/R+/R-) analogue audio outputs.

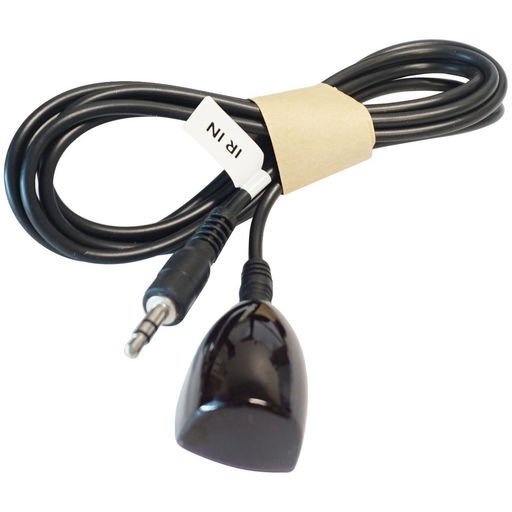

• Advanced EDID management. Includes IR control & receiver.
• Dimensions: 220x110x22mm. Includes power supply
