8K HDMI ARMOURED ACTIVE OPTICAL FIBRE CABLES - PRE-INSTALL

These Active Optical Fibre Cables support HDMI 2.1, 8K@60Hz HDR, and 48Gbps of bandwidth. They are ideal for connecting your devices to the latest TVs and monitors, delivering sharp detail, high image quality, and stunning colours. These cables are protected by reinforced stainless steel armour for greater durability. They also include an IP68 cable connector housing to help builders and installers protect the connectors during roll-out. Due to the use of optical conductors, the active cable is very slim and only has an OD of 6mm. Furthermore, they support ARC (Audio Return Channel) up to 30M and HDCP 2.2, ensuring compatibility with your audio and video sources.

PRE-INSTALL PREWIRE

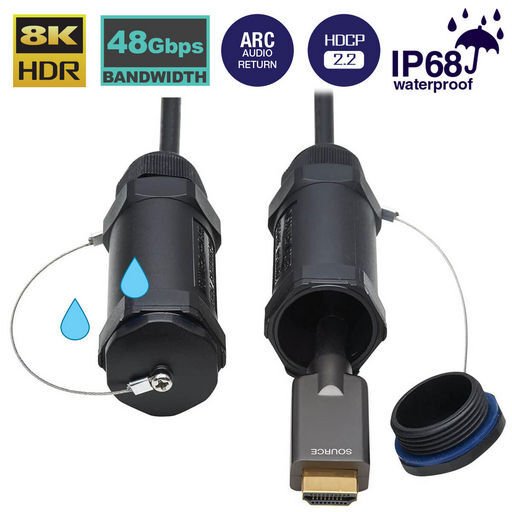

Capped ends IP68 for the rigour of pulls and building sites. The delicate HDMI plug is protected. Simply unscrew and push-back the canister when ready to connect.
NO HDMI EXTENDERS REQUIRED
Fibre HDMI cables offer a streamlined solution for long-distance signal transmission without the complexity and potential signal degradation associated with traditional HDMI extenders. The integration of all necessary electronics within the cables plugs eliminates the need for additional components, simplifying the setup and reducing points of failure. This direct connection method not only facilitates easier verification but also enhances reliability, making fibre HDMI an efficient choice for maintaining signal integrity over extended distances up to 100 metres.
LOSSLESS
All copper-based HDMI cables have attenuation and interface issues. As a result, the longest passive HDMI cable runs cannot be over 3M for 8K.
Compared to copper cables, fibre cables are effective in cable runs of 100 metres or more! They are also 60% lighter than copper cables. Furthermore, fibre cables are extremely flexible. It can be bent to 180° with a radius as low as 10 mm. This makes fibre cables easy to install in tight spaces. HDMI over fibre uses light waves to transmit audio and video data through the fibre cables in one direction, and it uses copper strands for +5v power, EDID detection, and HDCP authentication, making the cable a hybrid. Fibre optic cables offer high bandwidth, low signal attenuation, and resistance to external interference.
HOW IT WORKS
The opt-electronic converters inside the cable heads convert the incoming electrical signal into optical on one end and back into electrical on the other end. Cable is a hybrid composed of fibre and copper cables. The copper cables are used for non-video information such as EDID, HDCP authentication, hot plug detection, grounding, and +5v power. The fibre strands carry all the video and audio content; there is no need for an extra power supply.
DIRECTIONAL

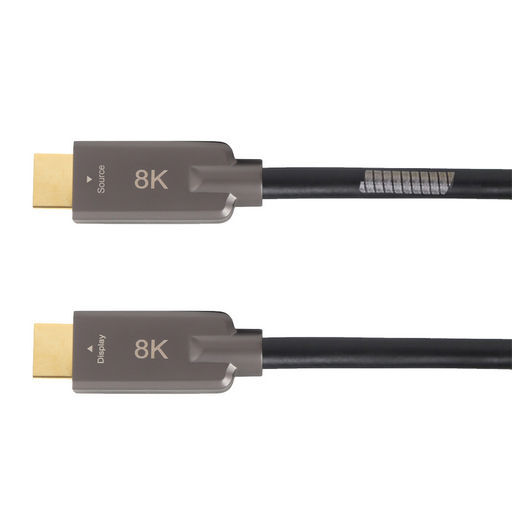

Dont forget, these cables need to be run in one direction. Source to Monitor.

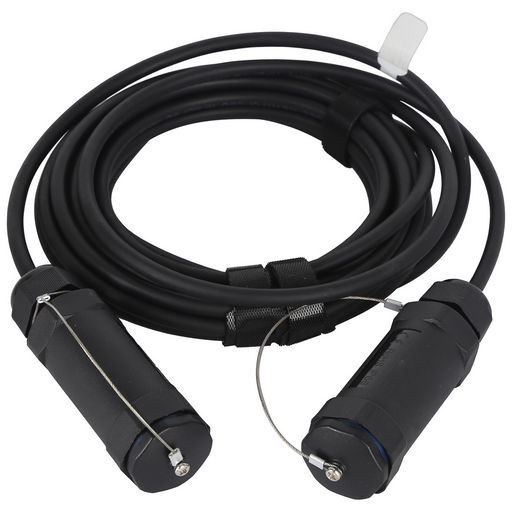

Protected by reinforced stainless steel armoured HDMI Active Optical cable.

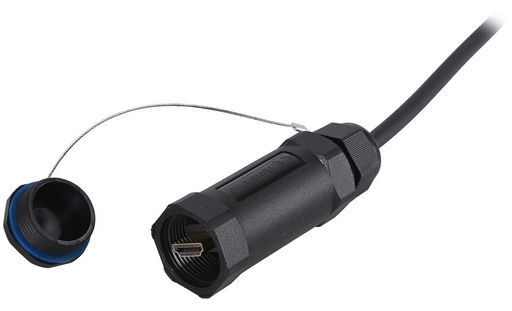

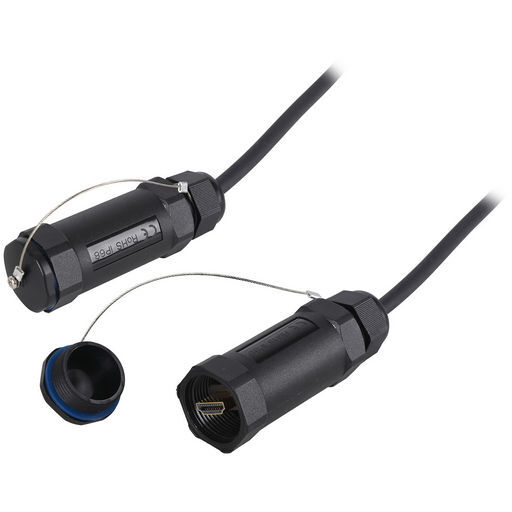

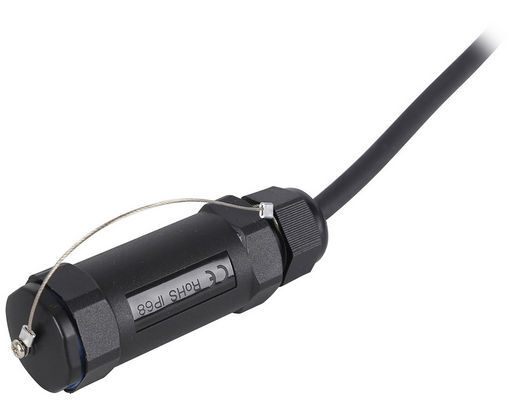

HDMI connectors are protected by IP68 rated cable connector protectors.
6mm diameter OD heavy-duty TPU outer jacket.
Supported up to 8K @ 60Hz video resolution (4K @ 120Hz).
Supports Dynamic HDR (High Dynamic Range) for brighter, deeper, and more lifelike colours.
High speed data transfer, up to 48Gbps bandwidth.
Supports ARC up to 30M.
HDCP2.2 support and easy plug & play installation.
Light weight compared to copper cable.

Cable Length: Up to 100m
Bandwidth: HDMI2.1, 48Gbps, support 8k@60hz UHD display
Power Consumption: 250mW
Bend Radius (Dynamic/Static): 80mm/40mm
Tensile Strength (Long Term/Short Term):100N/200N
Crush Resistance (Long Term/Short Term):200N/400N
Operating and Storage Temp: -40°C to 70°C

(CLF2050)
