HDMI EXTENDER 2-WAY OVER CAT6 4K60 WITH IR

4K HDMI over CAT6 Splitter Extender Kit PtM, 1x Transmitter to 2x Receivers, Range up to 35M (4K)

WITH AUDIO EXTRACTION / PoC / IR

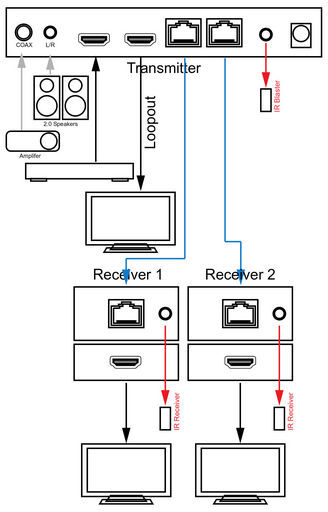

The 18Gbps HDMI 1x2 Splitter Extender kit includes one transmitter and two receivers, enabling a single HDMI source to be distributed to two displays with resolutions up to 4K@60Hz (4:4:4). HDMI signals can be extended up to 35 m at 4K@60Hz or 50 m at 4K@30Hz over a single CAT6 cable. The transmitter features a built-in HDMI loop output for local monitoring. The system also supports one-way IR pass-through, one-way PoC, audio extraction, and advanced EDID management for enhanced compatibility and installation flexibility.

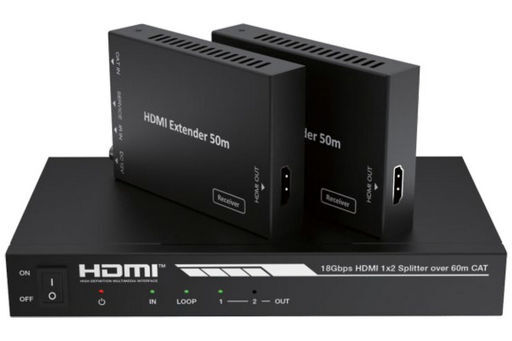

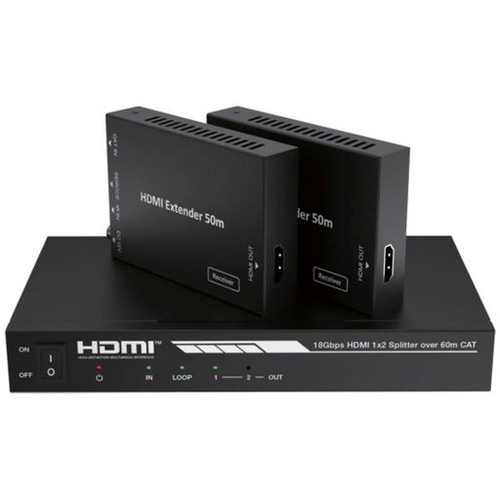

• Includes one HDMI transmitter and 2 receivers.
• HDMI 2.0b and HDCP 2.2 compliant.
• HDMI local loop out on the transmitter.
• Support 18Gbps video bandwidth.
• Support HDR, HDR10+, HLG, Dolby Vision.
• Up to 7.1CH HD audio pass-through.
• Support digital and analog audio extraction.
• Transmission distance up to 35m (4K@60) over a single Cat6 cable.
• Supports one-way IR control pass-through.
• Support one-way PoC function (only from transmitter to receiver).
• Advanced EDID management through a dip switch.
• Includes power supply, IR blaster (1.5M) and 2x IR receiver (1.5M).
• Dimensions: 175x100x25mm (Tx), 88x61x18mm (Rx).
