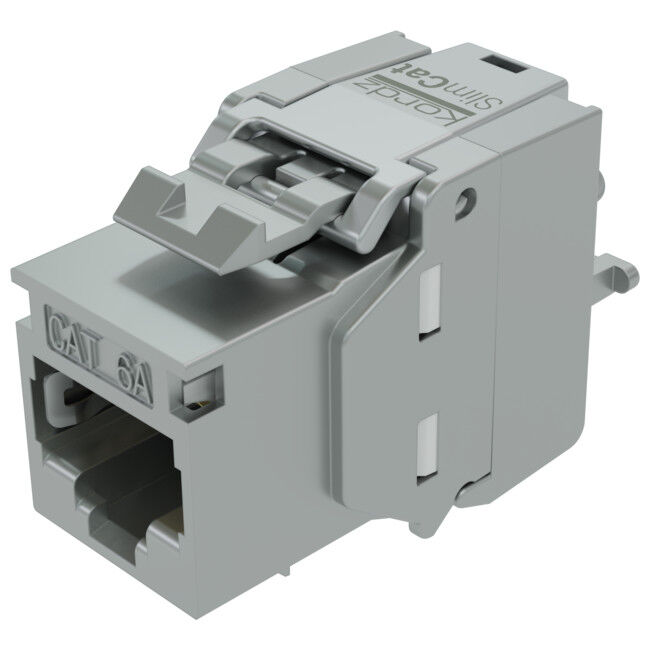

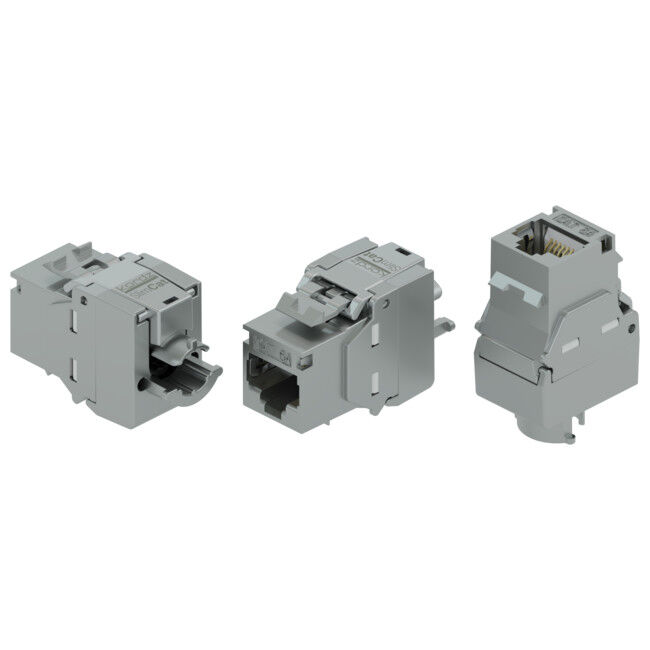

Kordz T3R48J-C6AS-ME PRS Series SlimCat™ CAT6A Toolless Keystone Socket - Box of 12

The Kordz PRS SlimCat™ Cat6A RJ45 Keystone Socket is designed specifically for use with the Kordz PRS SlimCat™ Network Cable, enabling professional integrators to deliver ANSI/TIA-568.2-D Cat6A permanent link performance up to 50 metres. Featuring a die-cast zinc-alloy metallic clamshell design and metal latching mechanism, Kordz PRS SlimCat™ Keystones make installation easier, support PoE++ at 100W and fit standard keystone panel cut-outs.

Match with other Kordz PRS SlimCat™ Cat6A components for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

• Enables delivery of ANSI/TIA-568.2-D Cat6A permanent link performance up to 50m when paired with Kordz PRS SlimCat™ Cat6A Network Cables
• Contacts and wire manager customised for 28AWG conductors
• Easy to terminate with metal latching mechanism
• die-cast zinc-alloy metallic clamshell design
• 3bt 100W PoE++ capable
• UL94 V-0 fire-rated
• Eco-friendly packaging
• Manufactured with quality materials and using advanced manufacturing methods
• Lifetime warranty

Technical Info

General Information

Mechanical

Keystone Body Length: 37.65mm | 1.48in
Keystone Body Width: 17.10mm | 0.67in
Keystone Body Height: 23.64mm | 0.93in
Panel Mating Height: 16.10mm | 0.63in
Panel Mating Width: 14.50mm | 0.57in

Electronic

Voltage/Current rating UL Applications: 125 Volts AC / 1.5 Amps
Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
Contact Resistance: ≤ 20m?
Insulation Resistance: ≥ 500M?
RJ45 Cycle: 750 times
Insertion IDC: 20 times
Wire Gauge min/max: 28AWG
Conductor Diameter:0.5mm Ø
Cable Jacket Diameter: 5.5mm Ø
