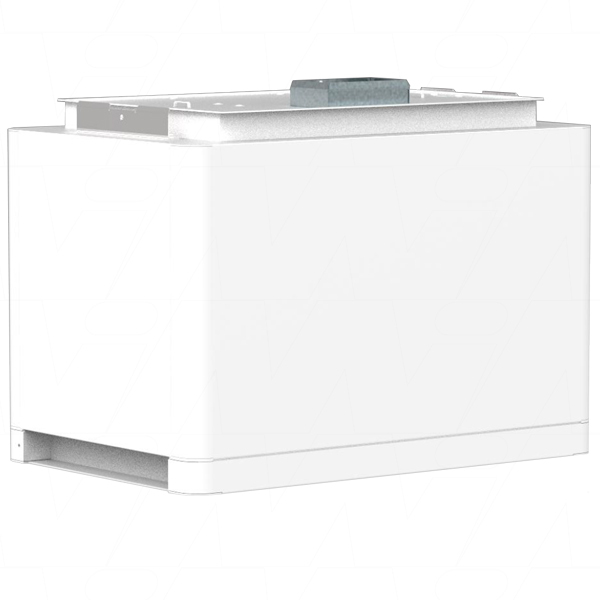

Pylontech FL4874M Force L2 Home Storage ESS 48V 74Ah Battery Module/Cartridge

Brand New

Selling Unit	EACH
Description	Force L2 Home Storage ESS 48V 74Ah 3.55kWh Battery Module/Cartridge
Application	Home & SME Solar Storage
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	48V
Nominal Capacity	74Ah
Watt Hour	3552.0Wh
Size	3.55kWh
Width	300mm
Height	300mm
Length/Breadth/Depth	450mm
Brand

Pylontech Force L2 48V 3.5kWh Managed Battery System Module/Cartridge

*Please note this is a component of the Force L2 range of HESS Modules and must be used with the FC0048M-100S BMS controller

The Force-L1 & L2 are a 48V DC modular stackable Energy storage system based on the lithium iron phosphate battery technologies. Its attractive Furniture type design and IP55 Rating makes it ideally suited for installing as a home energy storage system.

The Force L1 & L2 battery systems is designed to be installed without the aid of the inter connection battery cables, significantly reducing the installation time. The basic module is 3.55 kWh cassette, with a 90% DOD, and is available in two shapes, the L1 wider and lower or L2 narrower and higher, to meet all space requirements.

Features & Benefits of the Force L1/L2 HESS:

Modular design from 7.1kWh to 24.86kWh enables quick and secure installation, & maintenance with no exposed wiring or connectors
Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C) with excellent discharge performance & cycle life
The solar battery is suitable for indoor and outdoor (IP55) installation
Cathode material is made from LiFePO4 for safety performance and long cycle life
The BMS has protection functions including over discharge, over charge, over current and high/low temperature
Compatible with many available Hybrid inverters
Safety Cert. CE,TüV, UL, RoHS, UN38.3, IEC62619, IEC62040, IEC62477, IEC61000-6-2,IEC61000-3
Clean Energy Council Approved (CEC)

Warranty: The Force-L1 & L2 comes with a standard warranty of 10 years. Register your product on the Pylontech website. A linear depreciation to a minimum of 80% of capacity over 10 years is expected and is not covered by the warranty.

This product appears on the Clean Energy Council list of currently approved batteries (energy storage devices)

SHIPPING RESTRICTIONS APPLY

This lithium based product is classified as Class 9 DG (UN3480) where it contains more than 20Wh/cell or 100Wh/pack (Lithium Ion) and therefore cannot be sent by airfreight.

Transport via ROAD or SEA FREIGHT ONLY for this product.

(FL4874M)
