Brand New

Selling Unit	EACH
Description	50Ah 2400Wh 15S2P LiFePO4 Battery 19" Premium Look Rack Mount Metal Enclosure + Cables
Application	Home Power Storage, Telecommunications, Off Grid power, Industrial Power
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	48V
Nominal Capacity	50Ah
Watt Hour	2400.0Wh
Maximum Continuous Discharge Current	50A
Size	15S2P
Width	442mm
Height	88.5mm
Length/Breadth/Depth	440mm
Weight	24000g
Brand

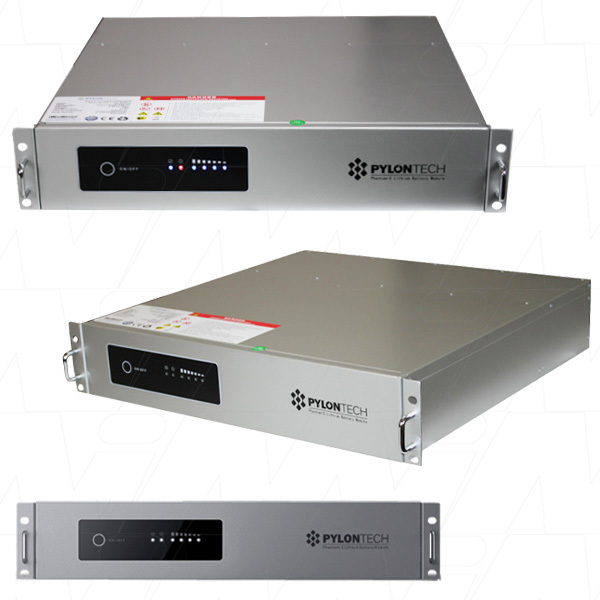

Pylontech Phantom-S 48V 50Ah Rack Mounted LiFePO4 Battery Module

Phantom-s is a member of HESS battery system designed by Pylontech. It's long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.

Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.

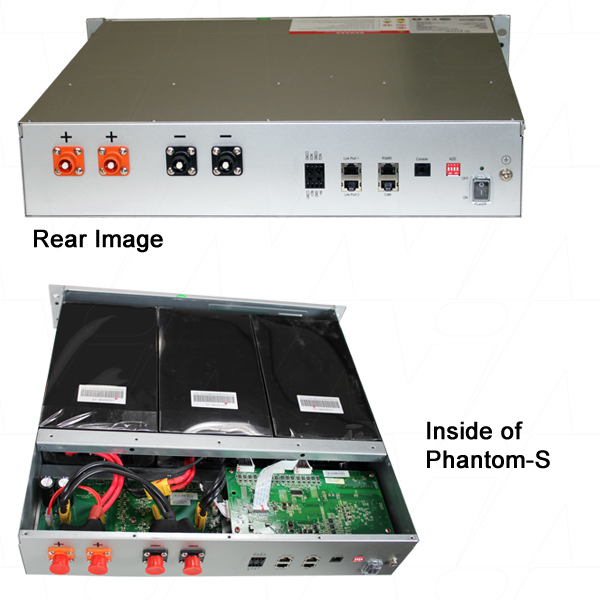

The Phantom-S is the same size and specifications as the US2000. The Phanton-S has an aesthetically pleasing facia with all cabling at the rear of the module.

Features:

• Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
• Usable capcity of 2.16kWh @ 48 VDC
• Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C)
• Compact and fashionable 19" rack design to suit bracket, rack or cabinet installations
• Modular design gives the you the power to design systems from 2.4kWh to a commercial sized 480kWh
• Compatible with many available Hybrid inverters
• Safety Cert.TüV, CE, R0HS, UN38, IEC62619
• Communication Protocols: CAN, RS485, RS232
• 15+ Year Design Life
• 10 year Warranty

SHIPPING RESTRICTIONS APPLY

This lithium based product is classified as Class 9 DG (UN3480) where it contains more than 20Wh/cell or 100Wh/pack (Lithium Ion) and therefore cannot be sent by airfreight.

Transport via ROAD or SEA FREIGHT ONLY for this product.
