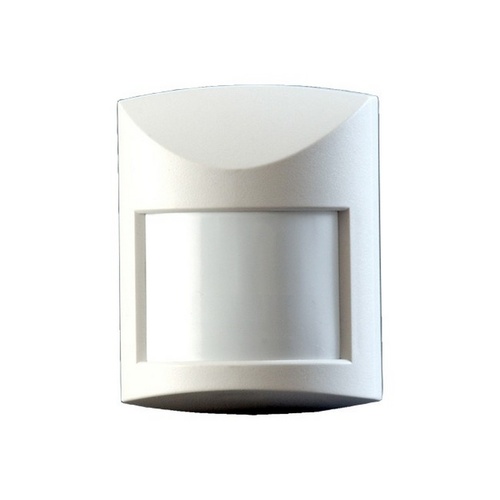

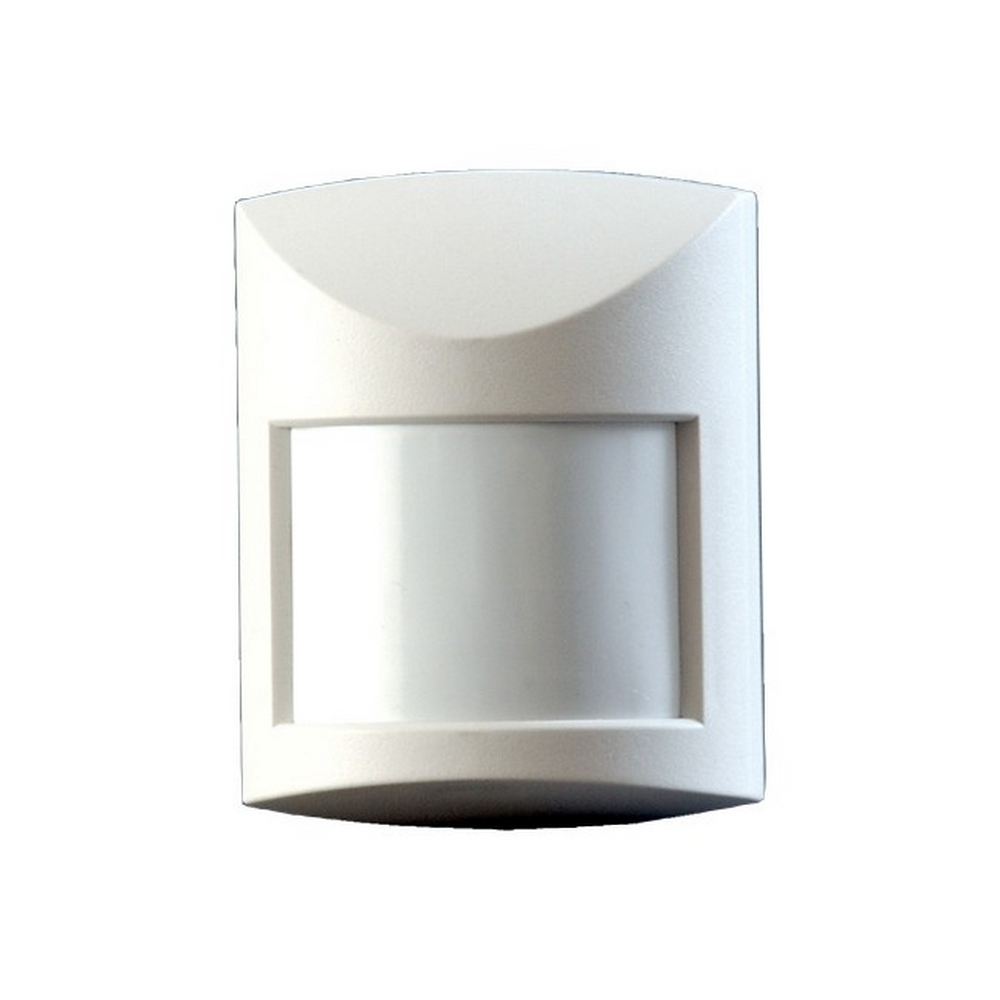

106-259 QUANTUM-Q PET AWARE PIR - NESS

The Ness Quantum -Q PET is the most popular PIR ever produced by Ness Corporation. Now boasting a QUAD Element Pyro Sensor it has a better detection rate and higher noise immunity for lower false alarms.
Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15 metre wide angle coverage, selectable Pulse Count and Sensitivity adjustmentsproviding the flexibility to use the Quantum-Q in most environments.
Installed in rooms or in hallways, Ness Quantum-Q protectsyou by detecting intruders body temperature using infra-red technology. It offers quality, performance and reliability at the right price.
Pet Immunity is set typically for a single pet up to 18kg or multiple pets uo to 10kg total.
Very discrete in size, designed for all types of interiors with a detection range of 15m.

Quad element pyro sensor
15m x 15m wide angle coverage
Standard (Std model refer Ness Part No. 106-079) and Pet Aware models
Adjustable Pulse Count
Adjustable Range
High R.F. and E.S.D. immunity
High white light immunity
High quality patented Fresnel lens
Front cover tamper protection
Totally silent solid state relay with high immunity tomagnetic fields
Optional mounting bracket available
9~15VDC Operation

MOUNTING HEIGHT	1.1m min, 3.1 max, 2.1m-2.3m for optiomal detection
COVERAGE	15m x 15m @ 90°
DETECTION ZONES	20 QUAD element zones
PET IMMUNITY	Single pet up to 18kg or multiple pets up to 10kg total
RANGE SELECT	Selectable High/Low (15m/12m)
PULSE COUNT	Selectable 1–2 or 3–4.
VISUAL DISPLAY	Red Alarm LED
OPERATING VOLTAGE	9 - 15 VDC
DIMENSIONS (H-W-D)	85 x 66 x 45 mm
ALARM PERIOD	5 seconds
WARM UP PERIOD	30 seconds
CURRENT DRAW	7mA
ALARM OUTPUT	Normally closedrelay, dry contacts. Max. 100mA@24V
TAMPER OUTPUT	Normally closeddry contacts
