RECON TEST SET

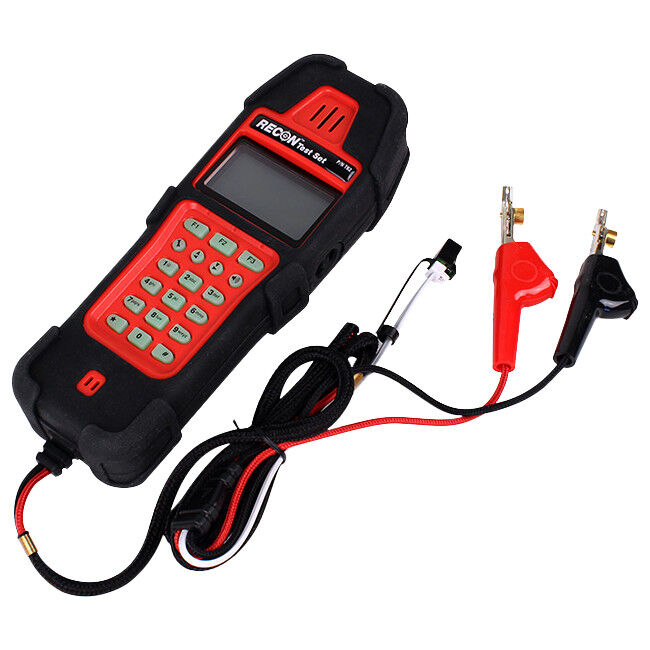

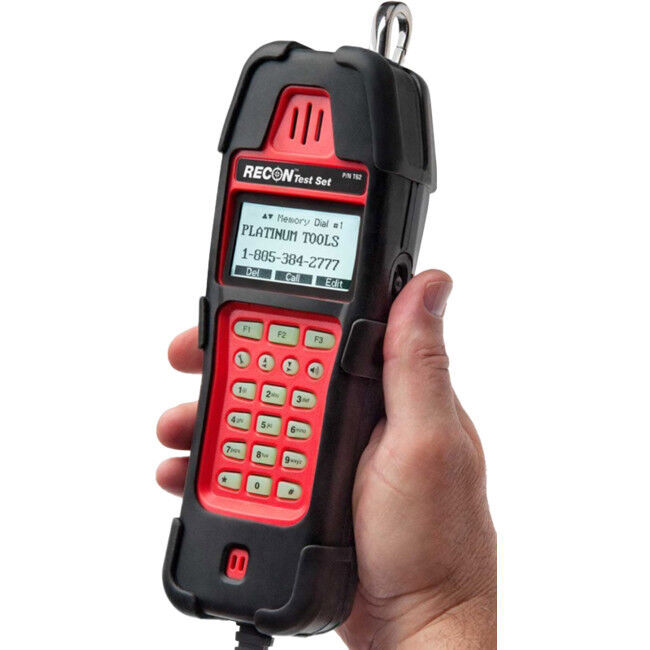

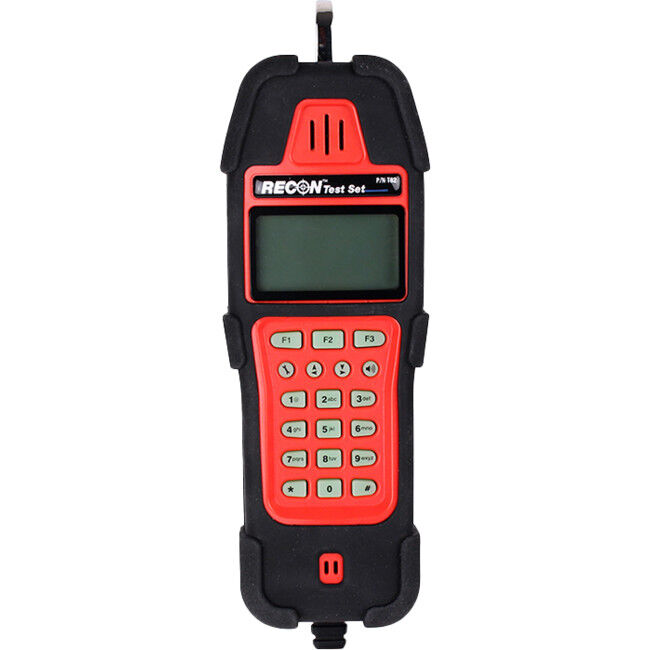

The T62 Recon Test Set by Platinum Tools is a self-contained, battery-powered, telecommunication line analyzer for use by installers and repair technicians. Its state-of-the-art design makes it rugged and water-resistant. The Recon Test Set is ideal for temporary communication, servicing, and installing telephone and data lines. It comes with a protective silicone boot as well as a deluxe cord set made from nylon cloth-covered test lead wire. This field instrument delivers extensive information on online conditions and status.

General Features

Advanced data detection & identification
Large backlit display for low-light environments
Glow-in-the-dark keypad
100% data safe
Rugged weatherproof case, IP54 Standard
Drop proof (tested at 20ft)

Digital Protection Features

Data Defender Data line-in-use capability
High-line voltage detection with next-step options
Data measurement options
Active monitor circuitry minimizes load on the subscriber line
DTMF digit detection and display in monitor mode
DigitView, DTMF decode sees defects on customer equipment while dialing out
PwrSave circuitry for long battery life

Other Features and Functions

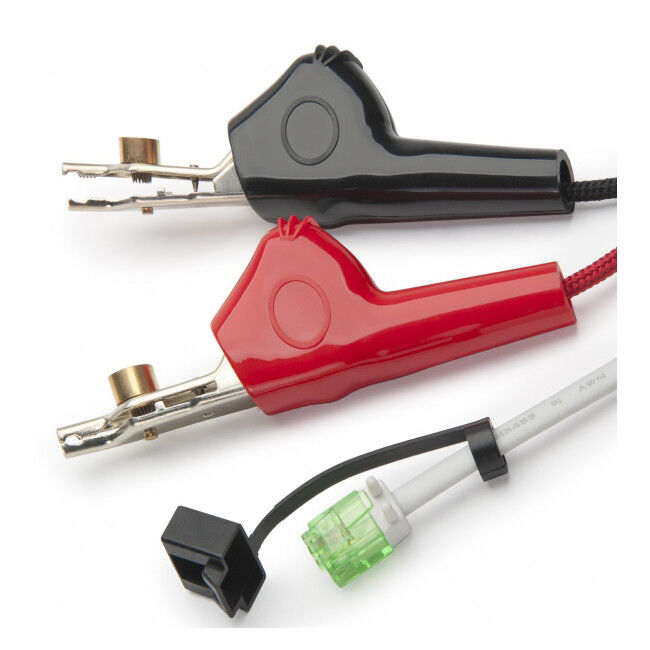

Angled Bed of Nails, piercing clip and No-Faut RJ12 Cord set with dust-cap
Speaker with fine volume adjustment
Noise cancelling microphone
Microphone mute with toggle on/off locking feature
Soft key menu system
Metal spring-loaded belt clip
Cushion boot for extra protection
Off-hook current and polarity
On-hook voltage and polarity
Ring amplitude and frequency
On-hook and call waiting caller ID info
Amplified Line Monitor for volume levels comparable to "off-hook" operation
8 number Stored memory with Alpha/Numeric tags
Continuous Polarity Indication
Fuel gauge battery condition
Caller ID/Call Waiting and Caller ID error detection
Tone and Pulse dialing
Configurable Auto Off in all modes
Detects and identifies DSL and T1 lines
The last number dialed, redialed, or received
Backlight 0-100% adjustable with on/off option
Adjustable earpiece volume, hearing aid compatible

Specifications

Interface	Attached cord set, 60" (152.4 cm)
Languages	English, Spanish and French
Ringer Equivalence	In BELL mode: 0.0 (no ringer load)
Pulse Dialing	Pulse rate: 10 pps ± 10%;
	Make/break ratio: 60% to 40% ±2%; USA
	Interdigit interval: 820 mS;
	Resistance during break: 120kΩ minimum
Tone Dialing	DTMF output (into 600Ω):
	Tone-frequency error: ±1.5%;
	Tone Level:
	High group: -6 ±2 dBm;
	Low group: -8 ±2 dBm;
	High group vs. Low group difference
	(twist): 2 ±1 dBm
Flash Duration	600 ±50 mS
Pause Duration	Tone: 3 seconds;
	Pulse: 3.4 seconds
Memory	8 programmable locations, 32 digits with 12 character tag, stored in non-volatile memory. Last number redial plus list of last 10 numbers dialed.
Return Loss	Minimum 14 dB at 600Ω
Line Current	10 to 110 mA
Resistance Measurement	Apparent Line Resistance:
	275Ω @ 20 mA
Impedance	Monitor Mode Impedance:
	DC: 1MΩ typical - AC: 390 KΩ @ 1 kHz typical
Measurement	Voltage: 0 to 200 VDC ±5%;
	Current: 10 to 110 mA ±5%;
	Note: Do not attach test set to electric-power lines
User Controls	1 x Left-side-mounted TALK/BELL/MON push button switches for operating modes
	1 x Right-side-mounted microphone mute pushbutton
	4 x Front-mounted pushbuttons for various options
	1 x Standard front-mounted 12-key phone keypad
Display	Transflective 128 by 64 pixel graphical liquid crystal display (LCD) with LED backlight
Power	4 x AAA alkaline batteries
Battery Life	With 100% backlight and in speaker mode: 20 hours
	Backlight off and speaker off: 75 hours
	Standby: 2 years
Dimensions	8.25 x 2.5 x 2.0" (21 x 6.4 x 5.1 cm)
Weight	19.74 oz (559.7 grams) with battery, cord set and belt clip
