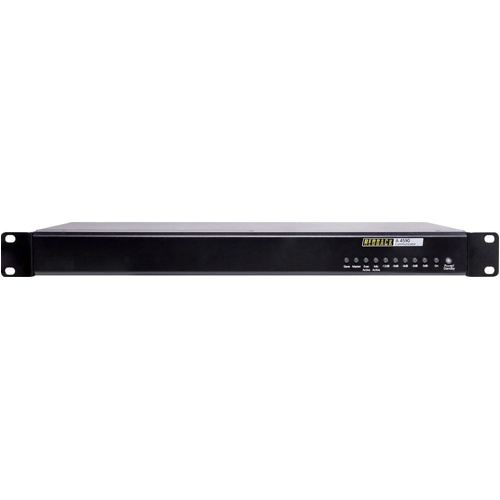

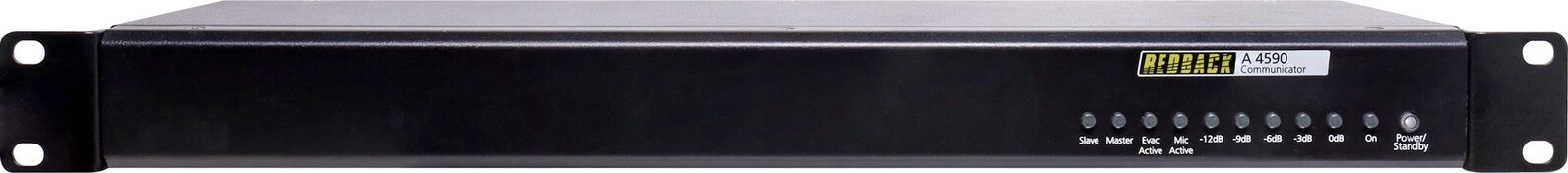

REDBACK 16-Zone Paging System Switch Box Audio Communicator Controller A4590

Overview

The Redback Communicator is a paging system controller utilising the latest microprocessor circuitry that allows for both 100V line level or low level balanced line signals to be switched. Incredibly flexible and expandable, the Redback communicator is the result of many years development with direct feedback from pro sound contractors.

Ideal for paging and background music (BGM) control in large scale PA systems up to 16 zones (expandable to 32 zones with the addition of a second A 4590 ), such as schools, factories, shopping centres, airports, hotels, sporting venues and large corporate buildings.

The A 4590 is a central paging system control hub housing the switching circuitry.
When combined with the A 4660A paging console, each zone may be paged either individually or together with the use of the All-Call function. A macro function is also provided to enable the user to program a button for one touch operation of multiple zones. Up to 8 paging consoles can be connected across 4 circuits (max 2 per circuit).

Note: Power injectors (Redback A 4658) may be required when there are more than four paging consoles connected to the system, or for long cable runs.

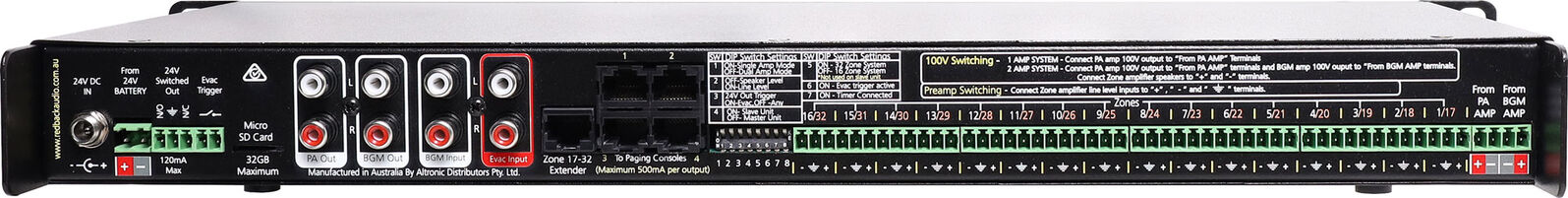

The A 4590 can also interface with the Redback A 4565B Alert/Evac controller to allow industry standard tones to be played in all zones when activated via the EVAC Input on the rear panel. This input could also be used for telephone paging

When used in 100V level configuration the system can be used with 1 or 2 amplifiers. BGM and paging can be distributed to any zone as desired. However, in a one amplifier system, BGM will be interrupted to all zones when paging to any zone. When separate PA and BGM amplifiers are used, paging can be selected without interrupting BGM to remaining zones.

When used in low level balanced line configuration the system can be used with individual amplifiers in each zone. Enabling each zone speaker circuit to receive individual music program and local paging sources. The microphone consoles can page each zone amplifier as required.

A 4660A Microphone console
The system can accommodate up to 8 paging consoles on 4 individual circuits, with a maximum of 2 consoles per circuit. This console is capable of operating 4 to 32 zones (in multiples of 4 zones), with zones 17-32 only available with the addition of a second A 4590 communicator.
Zones to receive background music (BGM) are selected via the A 4660A microphone console.
Zones can be locked out if not required or to block access by users.
The volume levels of the A 4590 emergency (EVAC) input, the background music (BGM) input and the microphone console (Mic) input are set via the microphone console. The VOX sensitivity of the EVAC input is also adjusted here.

Pre announcement and post announcement internal or MP3 based chime/messages are available, if selected via the console menu interface.

Active zones are illuminated when selected, and cancelling a selected zone can be achieved by pressing the zone switch again, via the cancel switch or automatically if not used after approximately 10 seconds.

A busy indicator is standard on all microphone consoles to indicate when the system is in use by another user.

Output zones and an installer label can be custom labelled via the console menu interface.

Package Contents:

A4590 Audio Switcher
24V DC Plug pack
Instruction Booklet

Features

Amplifier 100V level or low level balanced line switching
Selectable pre and post announcement chimes via A4660A (Internal or MP3/SD card based)
Selectable BGM for each zone via A4660A
Accepts up to 8 paging consoles
Expandable up to 32 zones with additional A 4590
Paging consoles connect via Cat 5 cable
Paging consoles can be up to 200m from control box
Operates from 24V DC plugpack (supplied)
All inputs/outputs via pluggable terminals
Suitable for 1 or 2 amplifier systems
Evac "All Call" input for emergency tones or telephone paging.
Maximum 500W power handling over 16 zones
1U 19 rack mount
