Overview

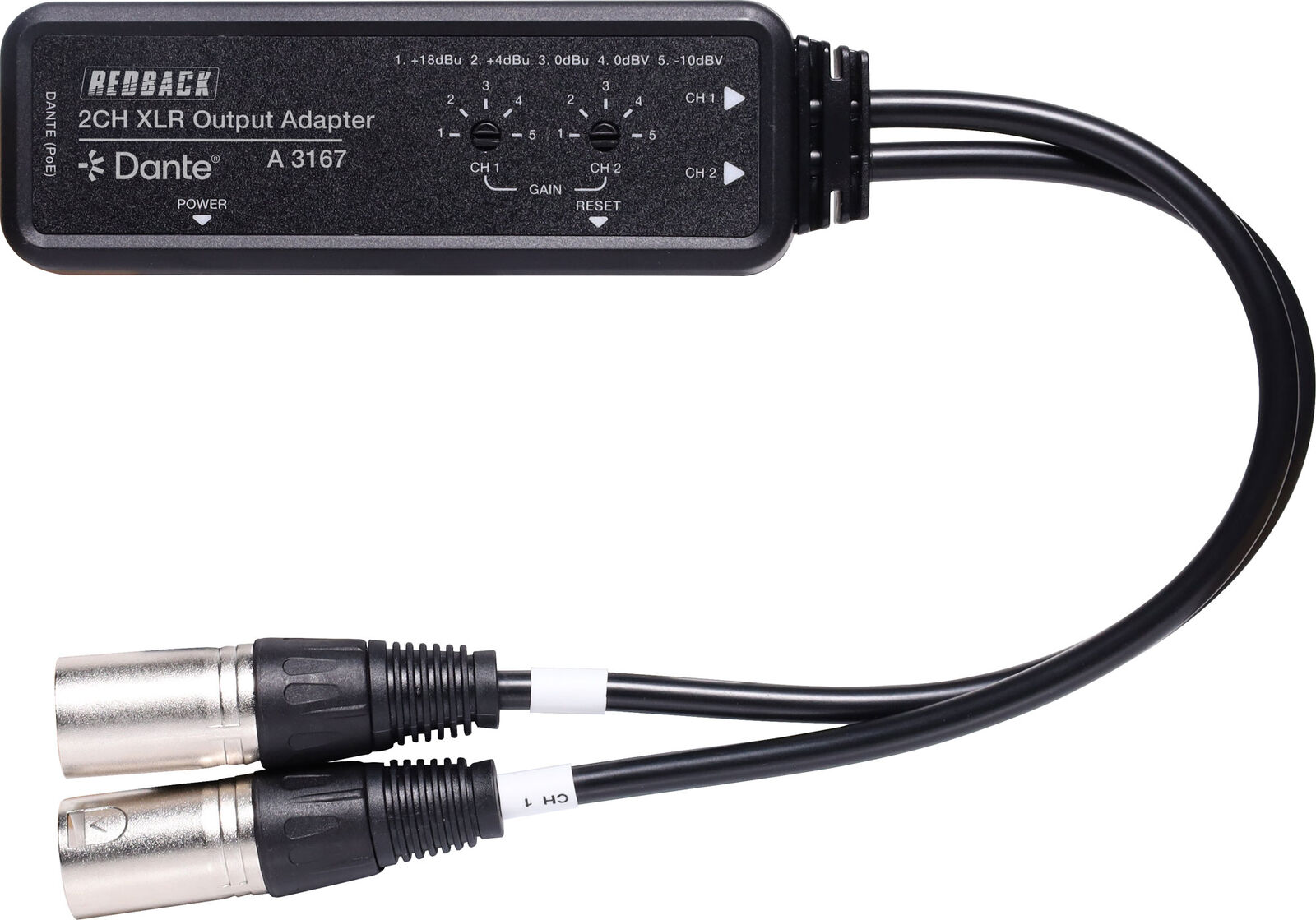

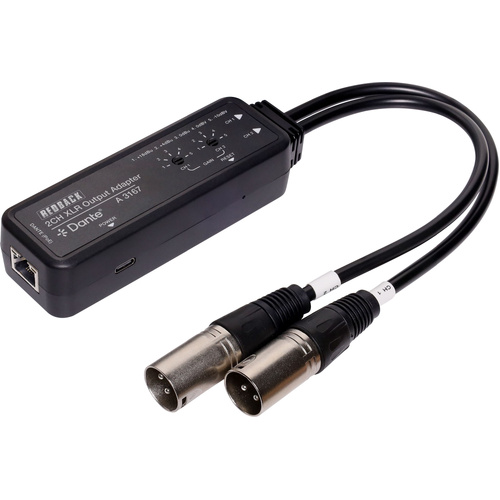

This Dante 2CH XLR Output Adapter is an audio converter based on the Dante Ultimo 2x2 solution. It converts Dante 2CH digital audio into two channel balanced/unbalanced XLR analog audio. Analog audio output supports 5-level gain adjustment. The adapter supports local USB-C port power supply and PoE function.

Features

• Dante 2CH digital audio to two-channel XLR analog audio
• Balanced/unbalanced XLR analog audio output
• Dante audio sampling rate supports 44.1/48/88.2/96KHz@24bit
• Dante audio delay supports 1/2/5ms (configurable)
• Analog audio output supports 5-level gain adjustment (+18dBu, +4dBu, 0dBu, 0dBv, -10dBv)
• Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
• Compact design for easy and flexible installation

 Specifications

Technical:

• Input: Dante 2CH digital audio
• Output: Two-channel balanced/unbalanced XLR analog audio
• Control Method: Dante Controller
• Video Network Bandwidth: 100M
• Audio Latency: Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)
• Audio Formats: DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit] XLR OUT [Analog audio output, Balanced/unbalanced 2CH, Max input level +24dBu]
• Transmission Distance: 100m (CAT6/6A/7)
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Audio Parameters:

• XLR Analog Audio Out
• Output Impedance: 600 Ohm balanced, 300 Ohm unbalanced
• Line Output Level (Maximum): +18dBu (6.15Vrms) @balanced audio, +12dBu (3.08Vrms) @unbalanced audio
• Frequency Response: 20Hz to 20kHz (-/+0.5dB)
• Dynamic Range: >100dB@0dBu, 1kHzA-weighted
• Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
• Audio THD+N: < 0.01% at +4dBu, 1KHz
• Audio Output Sync Delay: <10ms

Connection:

• Input port: 1x DANTE [RJ45 connector, PoE], 1x POWER [USB-C with USB power only, 12-pin female
• Output port: 2x CH1/CH2 XLR OUT [XLR male plug, with 30cm cable
• Others: 1x RESET button [System reboot button], 2x SENSITIVITY knob [5-level dip switch]

Mechanical:

• Housing: Plastic Enclosure
• Colour: Black
• Dimensions: 115mm [W] x 40mm [D] x 28 mm [H]
• Weight: 173g
• Power Supply: USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0
• Power Consumption: 1.25W (Max)
• Operating Temperature: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)
• Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)

  *Specifications are subject to change without notice.
