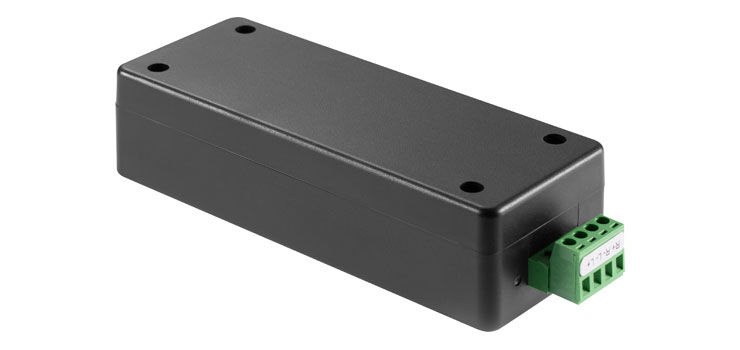

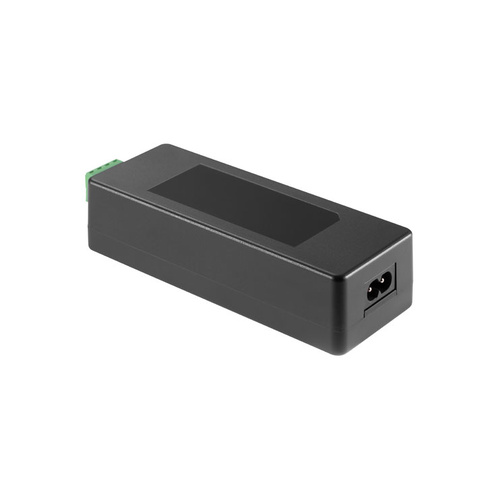

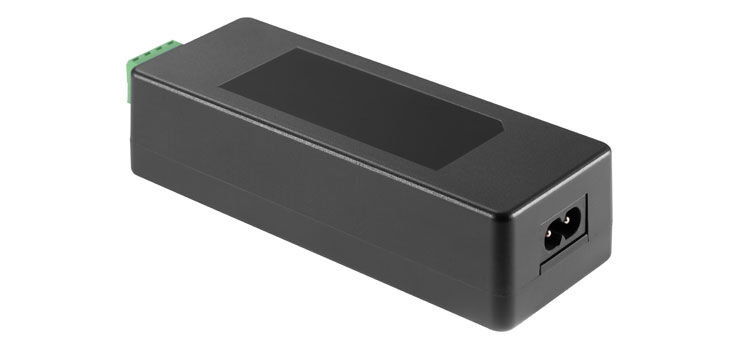

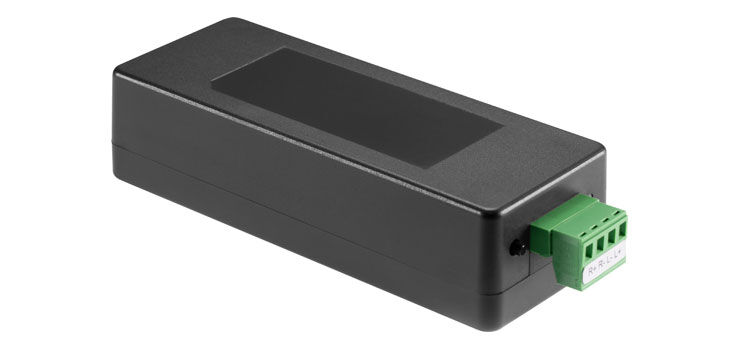

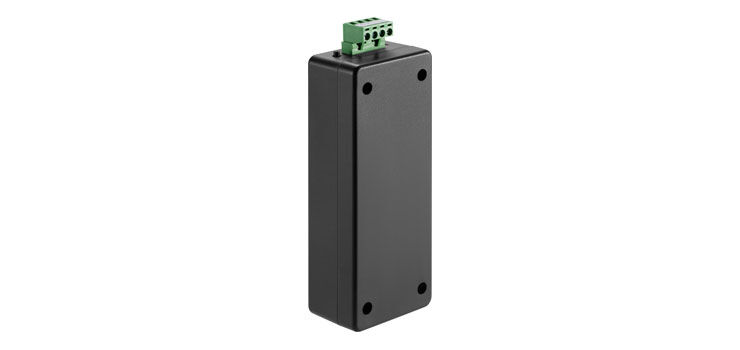

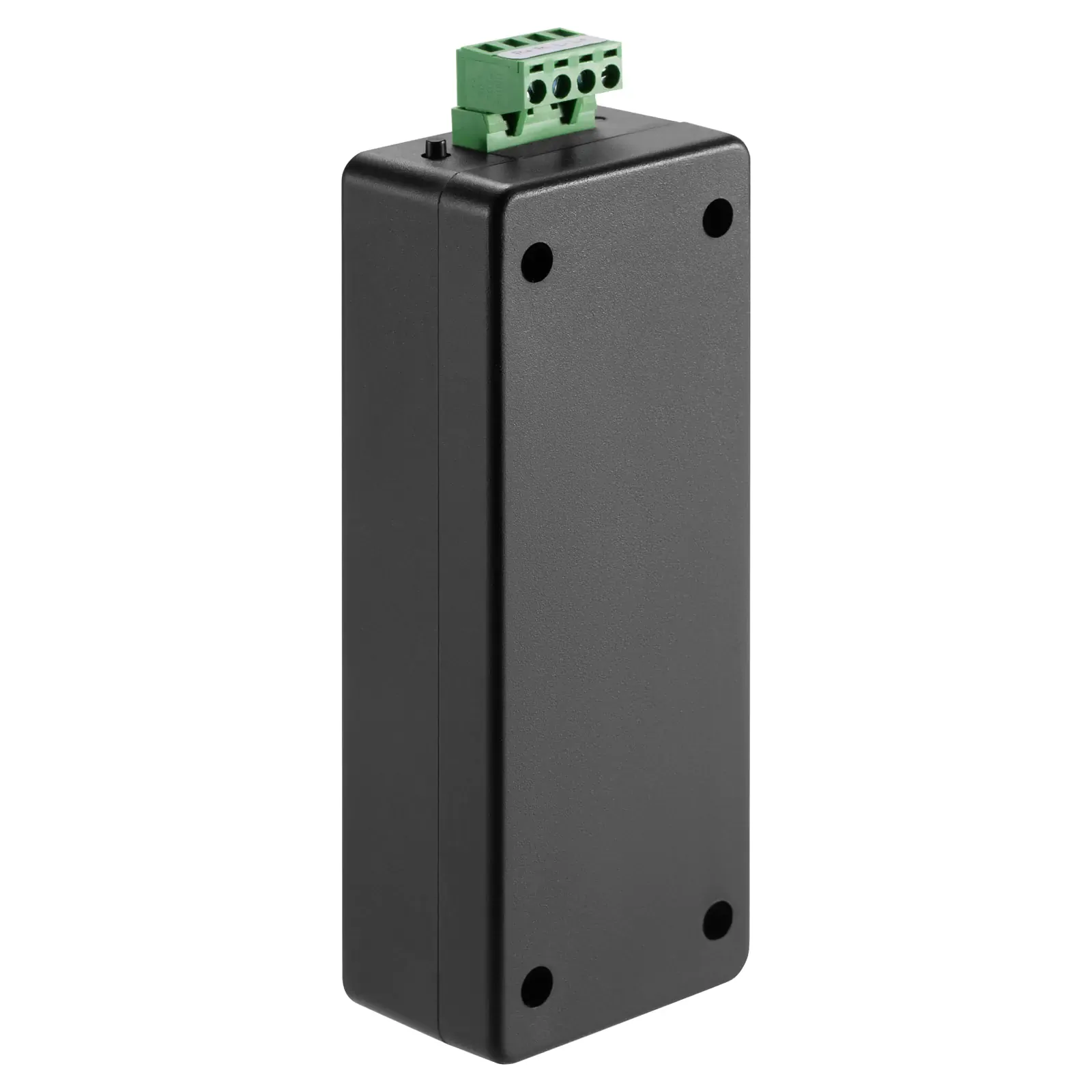

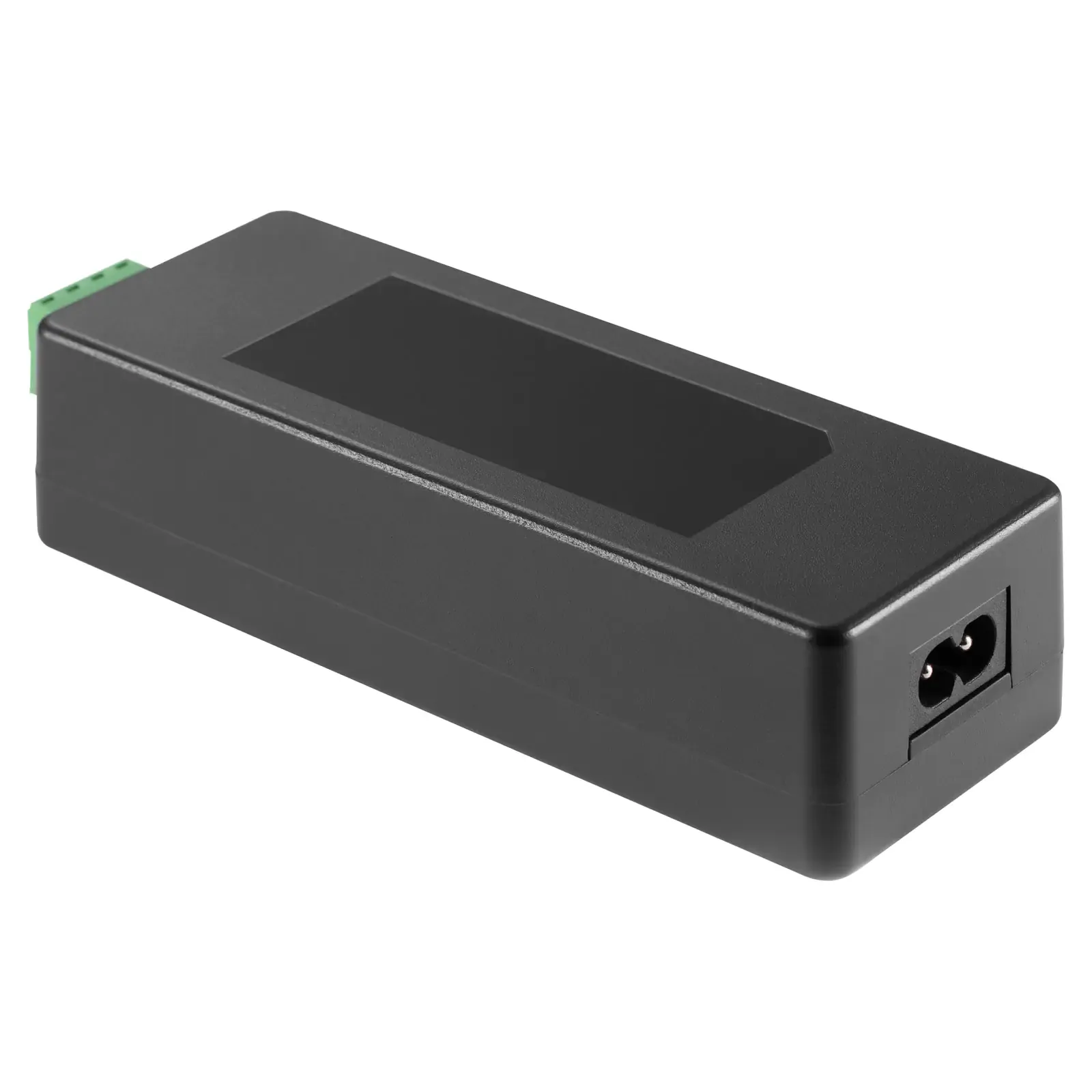

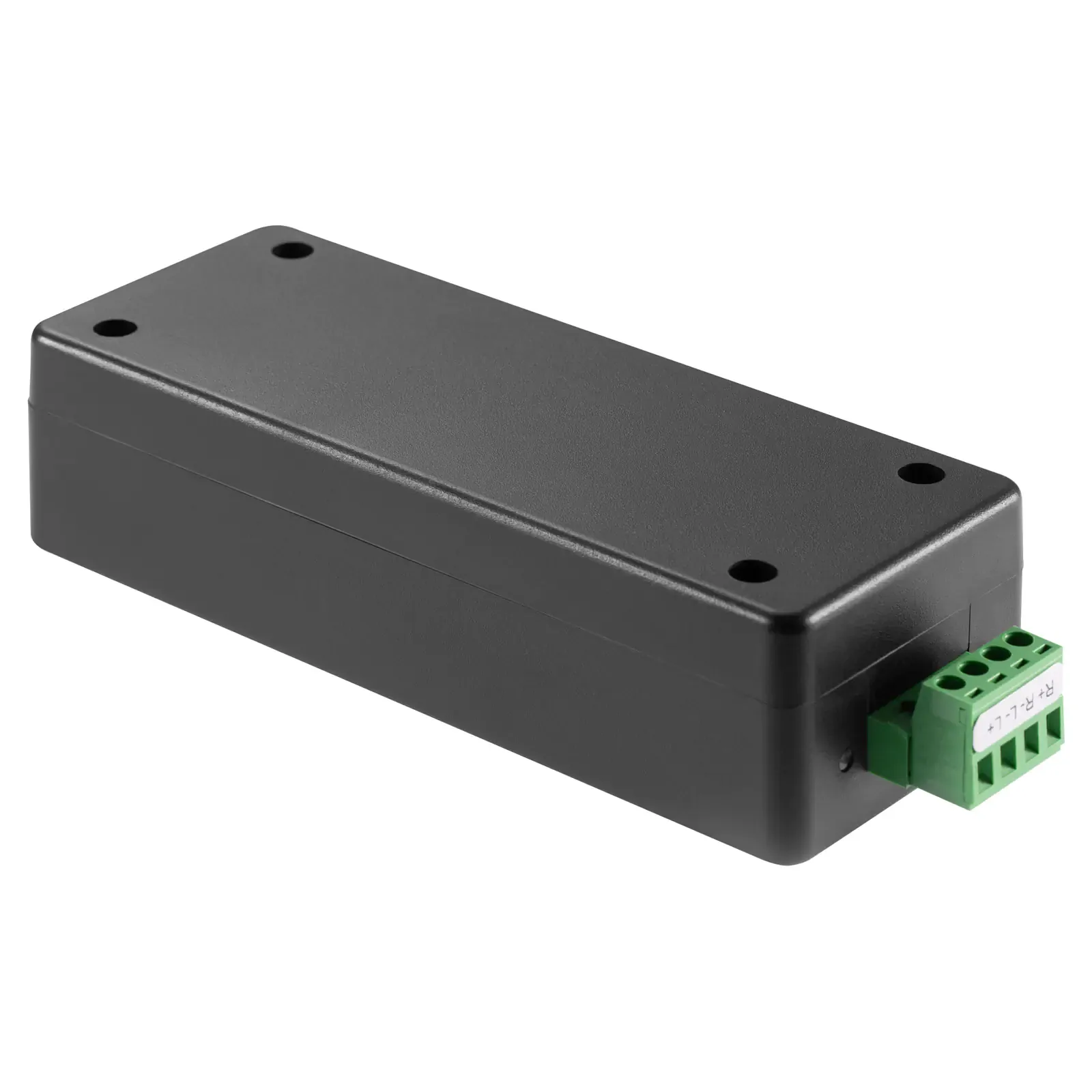

Overview

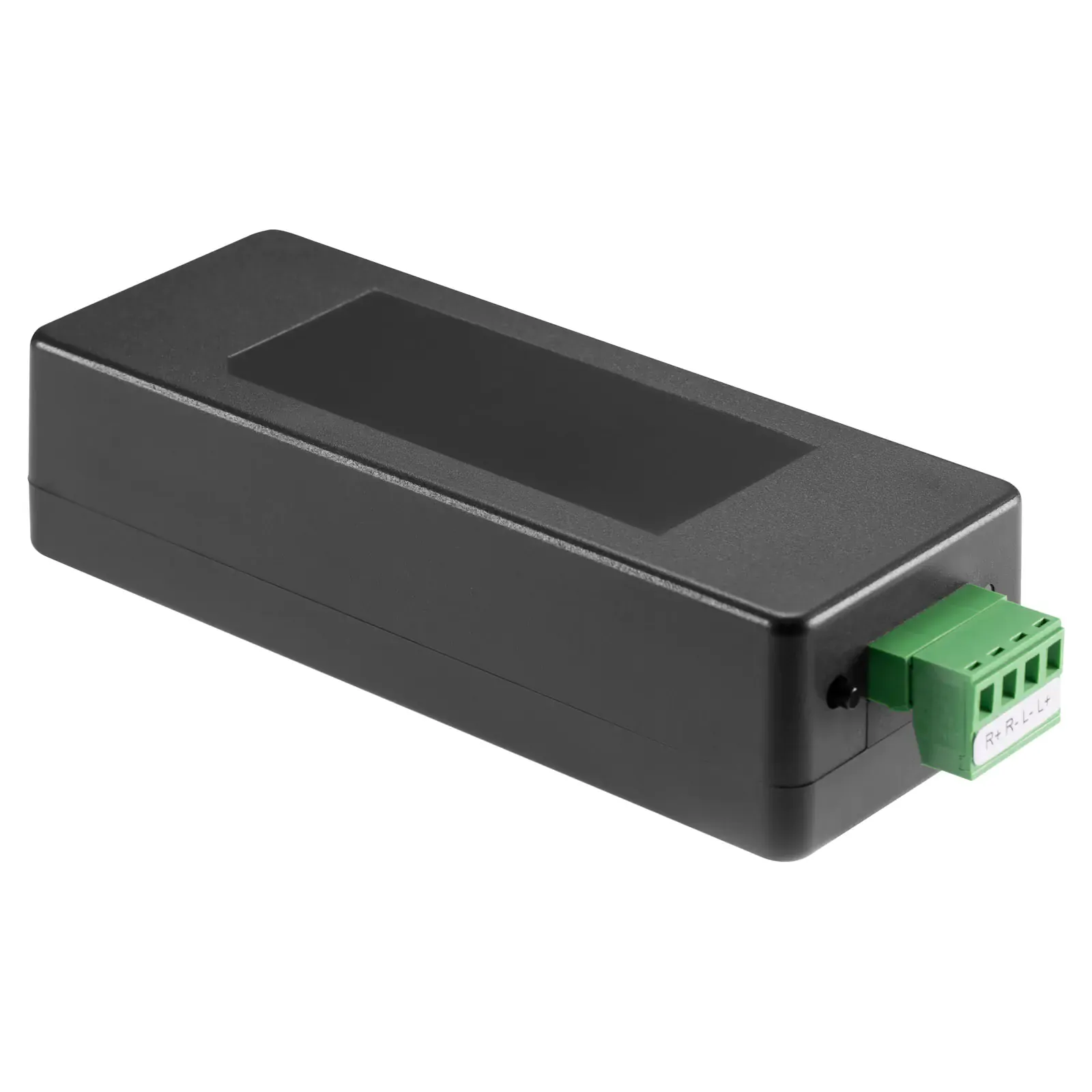

This Bluetooth mini stereo amplifier is a great way to add wireless connectivity to a new or existing pair of ceiling or wall speakers that aren't Bluetooth equipped. It offers Bluetooth 5.1 connectivity for excellent device range and audio performance, coupled with an efficient Class-D amplifier. Using an app, the Bluetooth name and password for this amplifier can be changed allowing you to run multiple amplifiers within the same home. The amplifier outputs up to 15W RMS per channel (into 4 ohms). Size: 159.5 x 54 x 35.5mm
NOTE: This product is not suitable for bridging into a single speaker and must be wired as a stereo pair. Care should be taken when connecting so that terminals are connected in the correct configuration for L/R stereo configuration. If wiring is incorrect it can result in failure of the amplifier due to its Class-D design, as such warranty shall be voided in the case of incorrect connection.

Features

• Compact Class D stereo 2 x 15W (into 4?)
• Bluetooth 5.1 connectivity
• Upgrade your favourite speakers to Bluetooth wireless
• Includes mains power supply
• Excellent range and audio clarity
• Suitable for in-ceiling mounting
• Assignable bluetooth device name and password

 Specifications

• Input: Bluetooth Version 5.1
• Output Power: 2 x 10W into 8ohm, 2 x 15W into 4ohm
• Total Harmonic Distortion: <0.05%/1W/Channel
• Minimum Speaker Impedance: 4 and 8
• Signal to noise ratio (dB): 100 (A Weighted)
• Frequency Response (±3dB): 30Hz-18kHz
• Dimensions: 159.5 x 54 x 35.5mm
• Weight: 0.2kg

In The box:

• Bluetooth amplifier module
• Power cable
• Instruction manual
