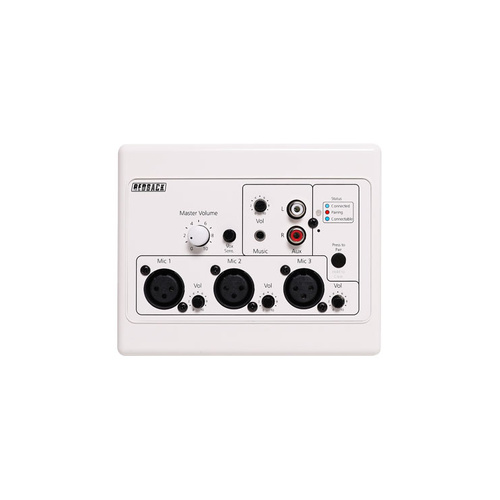

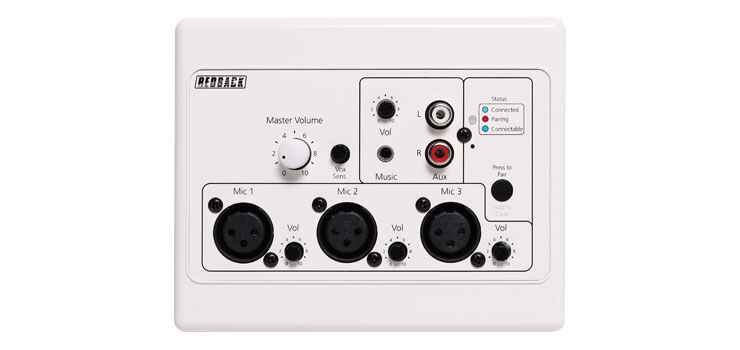

These local zone input wallplates allow for multiple mic/line inputs to be sent over UTP cabling back to a single UTP receiver for connection to a zone amplifier. This model also features bluetooth audio streaming for local zone playback of music. It also connects to the Redback A 4480B directly allowing multiple microphones to be connected to a single zone input. All audio inputs are mixed with individual level controls.

Features

• Standard dual gang wallplate
• Connects via RJ45 UTP cabling
• Mixed audio output
• Bluetooth 5.1 audio streaming receiver in-built
• 30m clear light of sight BT streaming range.
• Connects to A 4942 balanced UTP receiver or other Redback UTP compatible products.
• Individual & master level controls
• Stereo RCA input
• 24V DC input via Cat5 UTP cable from connected equipment
• 3 pin XLR mic/line level inputs

 Specifications

Frequeny Response

• Mic input: 140Hz - 20kHz
• Aux input: 140Hz - 20kHz
• Music input: 140Hz - 20kHz

Input Sensitivity

• Mic input: 1mV - 13mV balanced
• Aux input: 40mV - 800mV balanced
• Music input: 40mV - 800mV balanced

Connectors

• Mic Input: 3 pin XLR
• Aux Input: 2 x RCA
• Music Input: 3.5mm Stereo Socket

General

• BT version: 5.1
• BT range: Up to 30m (clear line of sight)
• Output: RJ45 8P8C
• Data transmission: Cat5e/6 cabling (max 300 metres)
• Weight: ?0.19kg
• Dimensions: ? 145mm(L) x 115mm(W) x 50mm(H)
• Power: Powered over Cat5e/6 cabl
