Overview

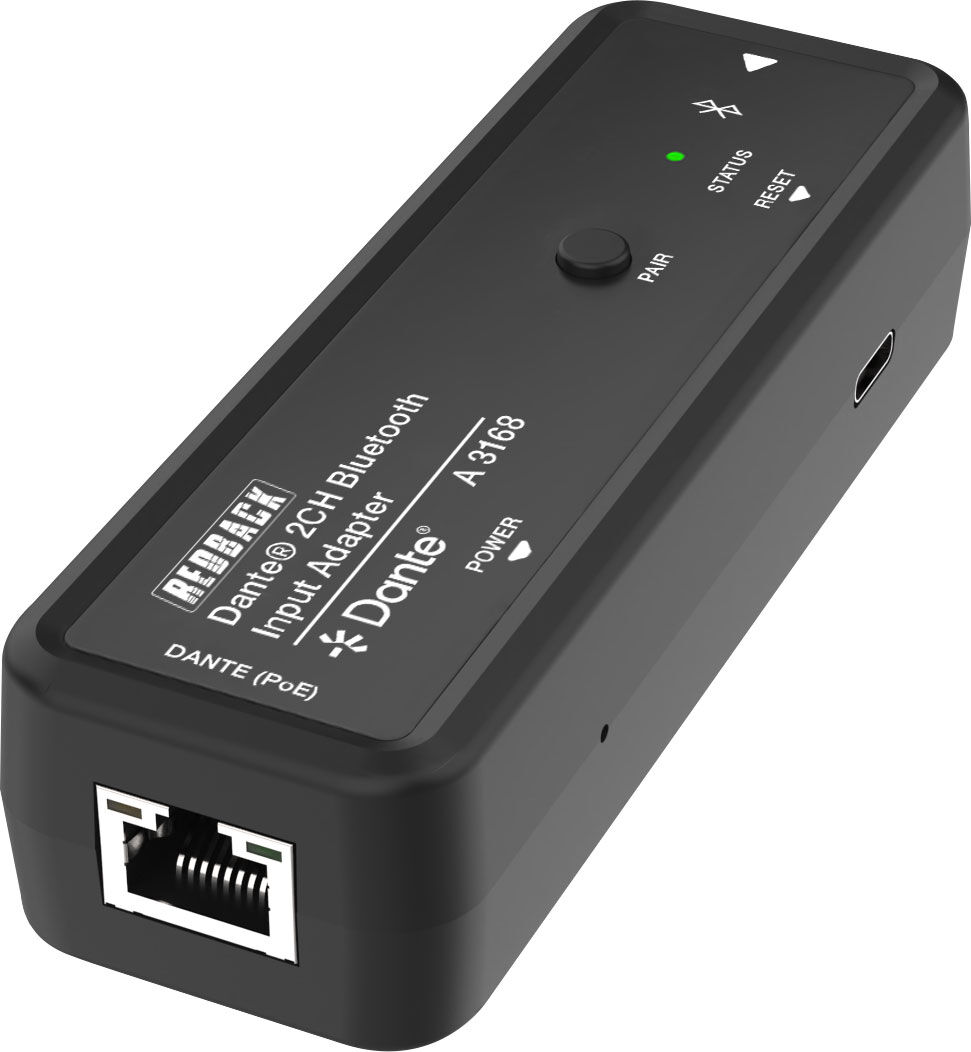

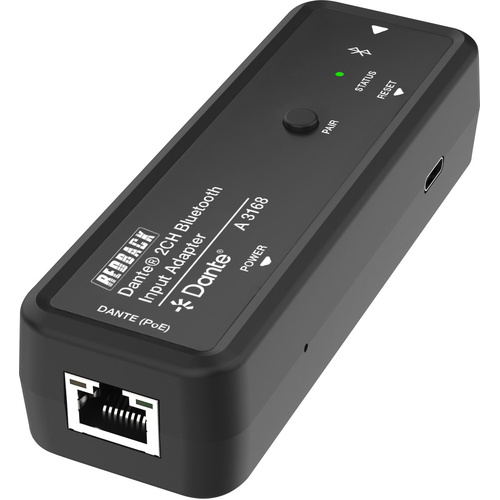

This Dante® 2CH Bluetooth Input Adapter is an audio transmitter based on the Dante® Ultimo 2x2. It converts two-channel Bluetooth audio into Dante® 2CH digital audio, then transmits the audio to the receiving end through network (Dante®). The adapter supports local USB-C port power supply and PoE function.

Package Contents

• 1x Dante® 2CH Bluetooth Input Adapter
• 2x Hook & Loop Ties
• 1x User Manual

Features

• Two-channel Bluetooth audio to Dante® 2CH digital audio
• Supports Bluetooth V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 192KHz@24bit
• Dante® audio sampling rate supports 48KHz@24bit
• Dante® audio delay supports 1/2/5ms (configurable)
• Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
• Compact design for easy and flexible installation

Specifications

Technical:

• Input: Two-channel bluetooth audio
• Output: Dante® 2 channel digital audio
• Control Method: Dante Controller
• Video Network Bandwidth: 100M
• Audio Latency: Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)
• Audio Formats: Bluetooth IN [Digital audio input, PCM 2CH 44.1K-192KHz 16/24bit]. DANTE OUT [Digital audio output, PCM 2CH 48KHz 16/ 24bit]
• Transmission Distance: 100m (CAT6/6A/7)
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Audio Parameters:

• Input Impedance: N/A
• Line Input Level (Maximum): N/A
• Frequency Response: 20Hz to 20kHz (-/+0dB)
• Dynamic Range: >100dB@2Vrms, 1kHzA-weighted
• Audio S/N Ratio: >100dB@2Vrms, 1kHzA-weighted
• Audio THD+N: < 0.01% at 0dBV, 1KHz

Connection:

• Input port: 1x POWER [USB-C port, 12-pin female] 1x Bluetooth Input [Wireless]
• Output port: 1x DANTE [RJ45 connector, PoE]
• Others: 1x RESET button [System reboot button]  1x PAIR button 1x STATUS LED

Mechanical:

• Housing: Plastic Enclosure
• Colour: Black
• Dimensions: 115W x 40D x 28Hmm
• Weight: 93g
• Power Supply: USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0
• Power Consumption: 0.65W (Max)
• Operating Temperature: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)
• Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)
