Overview

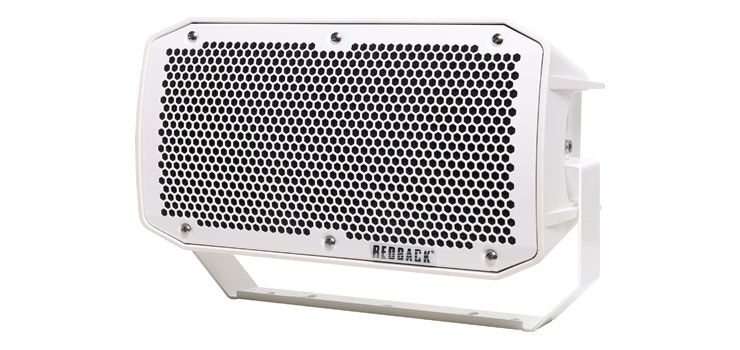

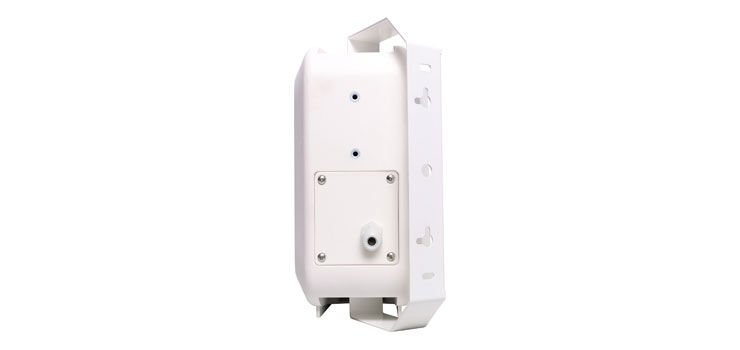

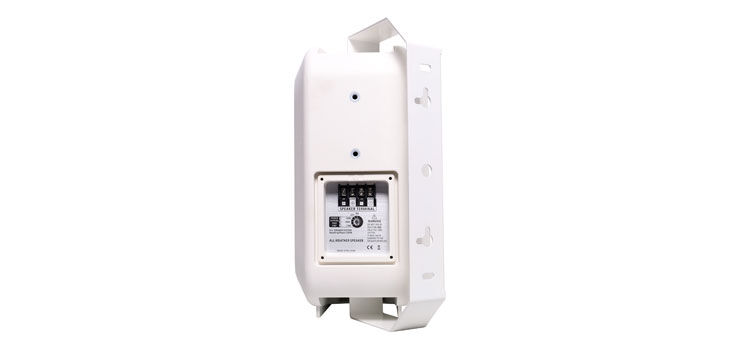

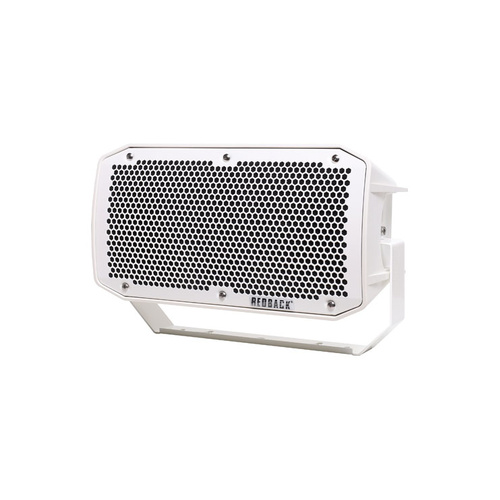

This all weather long throw PA speaker features a two-way driver, including 5.25-inch woofer and 1-inch tweeter for PA sound projection. It offers the flexibility of 8 ohm or 100V line settings with a total power handling up to 200W and max 100V power tap of 60W. This makes it ideal for dispersing sound across large open areas like parks, stadium concourses and public open spaces. The connection panel on the rear offers rotary power tap selection and loop in, loop out terminals for simply termination in the speaker chain (extra cable gland and knock out on rear panel provided). All connections are covered by a sealed screw in panel preventing moisture and dust ingress to a rating of IP56


Features

• Durable and compact of cabinet PA mounting speaker.
• Industrial powdercoated steel bracket with stainless steel hardware.
• Full range of sound through 2-way driver.
• Long throw speaker system with maximum SPL at 112 dB.
• Screw terminals for loop in, loop out connection in 100V line systems.
• Extra cable gland and knock out provided for loop in, loop out wiring.
• 8 Ohm selection on power tap switch.
• IP56 moisture and dust protection rating.
• Superb sound quality for both music and speech intelligibility.
• Various power switch tapping 60W / 30W / 15W / 7.5W.
• Convenient U-bracket installation.

Specifications

• Power Tapping: 7.5W, 15W, 30W, 60W & 8?
• Max Handling Power: 200W
• Speaker: 135mm (5.25’’) woofer + 25mm (1’’ )tweeter
• Input Voltage: 100V Line
• Sensitivity: 88dB (1w/m)
• Frequency Response: 70~18KHz
• Dispersion: 105° horizontal, 85° vertical
• Mounting Method: Wall mounting bracket
• Colour: White
• Dimensions: 180W x 175D x 325Hmm (exc. bracket)
• Weight: 5.2kg
• Mounting Requirements: 5mm hex

  *Specifications are subject to change without notice.
