Overview

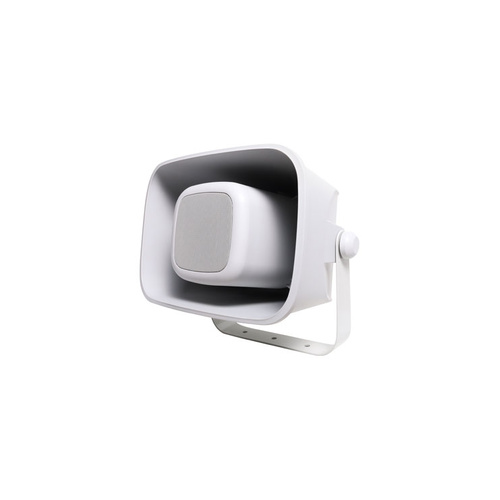

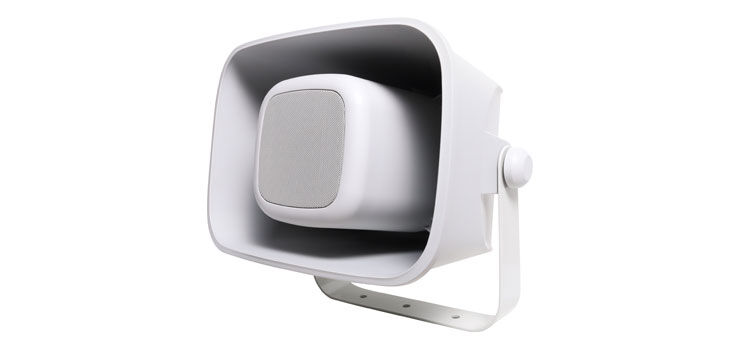

A high performance weatherproof music horn engineered for durability, reliability, and exceptional audio clarity. Designed with a robust and solid structure, this speaker is built to withstand challenging environments while delivering a long service life. It is eminently suited to outdoor applications where a high standard of speech and music reproduction is demanded eg: schools, gymnasiums, aquatic centres, sporting arenas, stadiums etc. The housing is IP66 weatherproof rated.

Features

• IP66 weatherproof rated for outdoor use.
• Aluminium mesh grille for rust free performance.
• Rotary switch power tap selector.
• Suitable for use with 100V line amplifiers.
• High clarity for speech and music reproduction.
• 5 year Redback speaker performance warranty.

Specifications

• Input Power: 15W, 30W, 60W (100V)
• Rated Impedance: 666? (15W), 333? (30W), 166? (60W)
• Sound Pressure Level: 97dB ± 3dB (1M/1W)
• Frequency Response: 150Hz - 20kHz
• Speaker Unit: 6.5” Woofer x 1, 1” Tweeter x 1
• Mounting Hole size: 3 x 10mmØ. Distance between holes = 80mm
• Speaker Installation Method: Bracket Installation
• Connection Mode: Four core sheathed wire
• Material: Front and rear shell: PP + calcium (AP gray RAL7035), Bracket: Aluminium
• Support: Aluminium AP gray RAL7035)
• Working Temperature: -25°C to 55°C
• StorageTemperature: -40°C to 70°C
• Relative Humidity: ?95%
• Dimensions: 365 x 272 x 328mm
• Weight: 6.25kg

  *Specifications are subject to change without notice.
