Overview

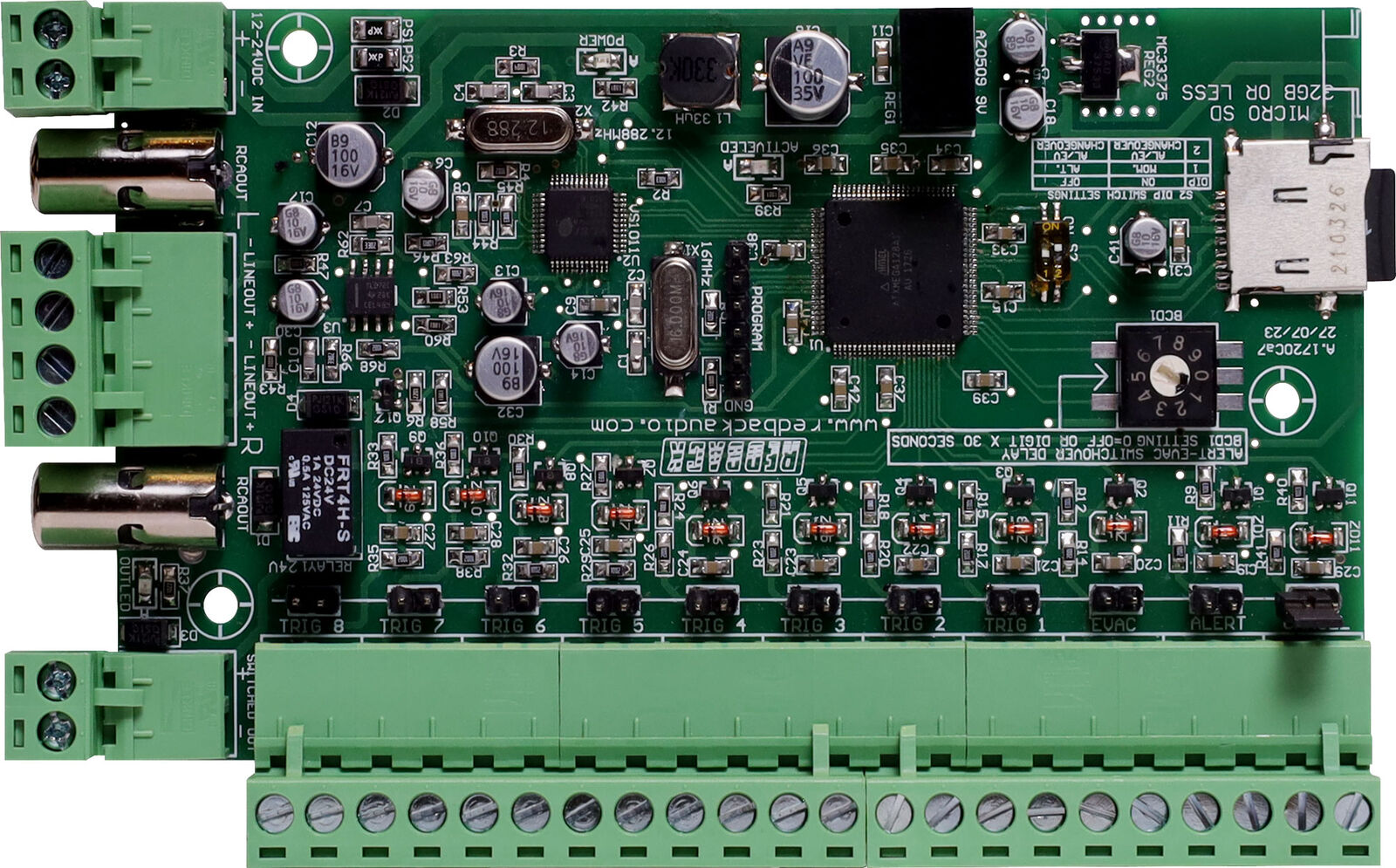

An MP3 based message player and tone generator designed for public address, security, customer direction or emergency evacuation announcements. When combined with a Redback® A 1707 timer it can play announcements at prescribed times for in-store advertising and customer notification.

It allows up to 8 custom MP3 tracks plus standard alert and evacuation tones. A library of commonly used tones, messages and phrases are provided on a Micro SD card. Custom MP3 tones, music etc may be added as desired.

The Micro SD card is preloaded with 8 standard tones, including bell, bing bong, siren and pre-announcement chime, plus Australian Standard alert and evacuation tones (complying to AS1670.4). To comply with Australian Standards for evacuation tones, a custom message may be played after every fourth cycle providing evacuation instructions to occupants.

Alert tones can be automatically switched to evacuation tones after a set period (adjustable between 30 and 240 seconds).

Playback for each track can be activated by a closing set of contacts. Contacts may be configured between alternate or momentary action. This can include or exclude alert & evacuation tones as desired. Cancel contacts are provided to stop playback of tracks.

24-30V DC switched output which is activated when any message is active (the switched output is dependent on the input voltage).

Features

• Custom tracks
• Inbuilt tone & phrase library
• 12-30V DC operation @ 300mA (switched output only operates at 24V+).
• Micro SD card included
• All connections made via screw terminals
• Tones conform to Australian standard
• Provision for voice over in evacuation mode
• Random play on triggers - if multiple MP3s in trigger folder, they will be played at random.
• Optional MP3 playback on trigger cancel (alternate mode only)
• Compact size: 120 x 70mm
