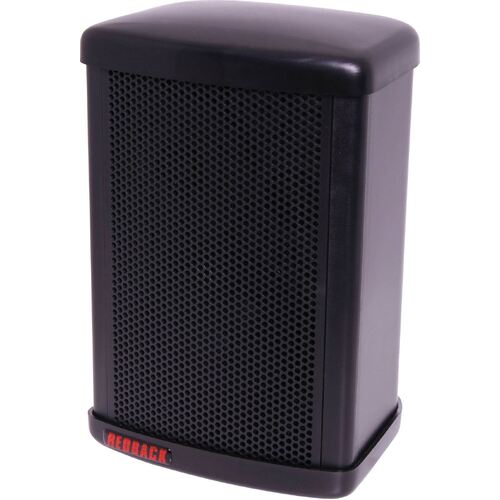

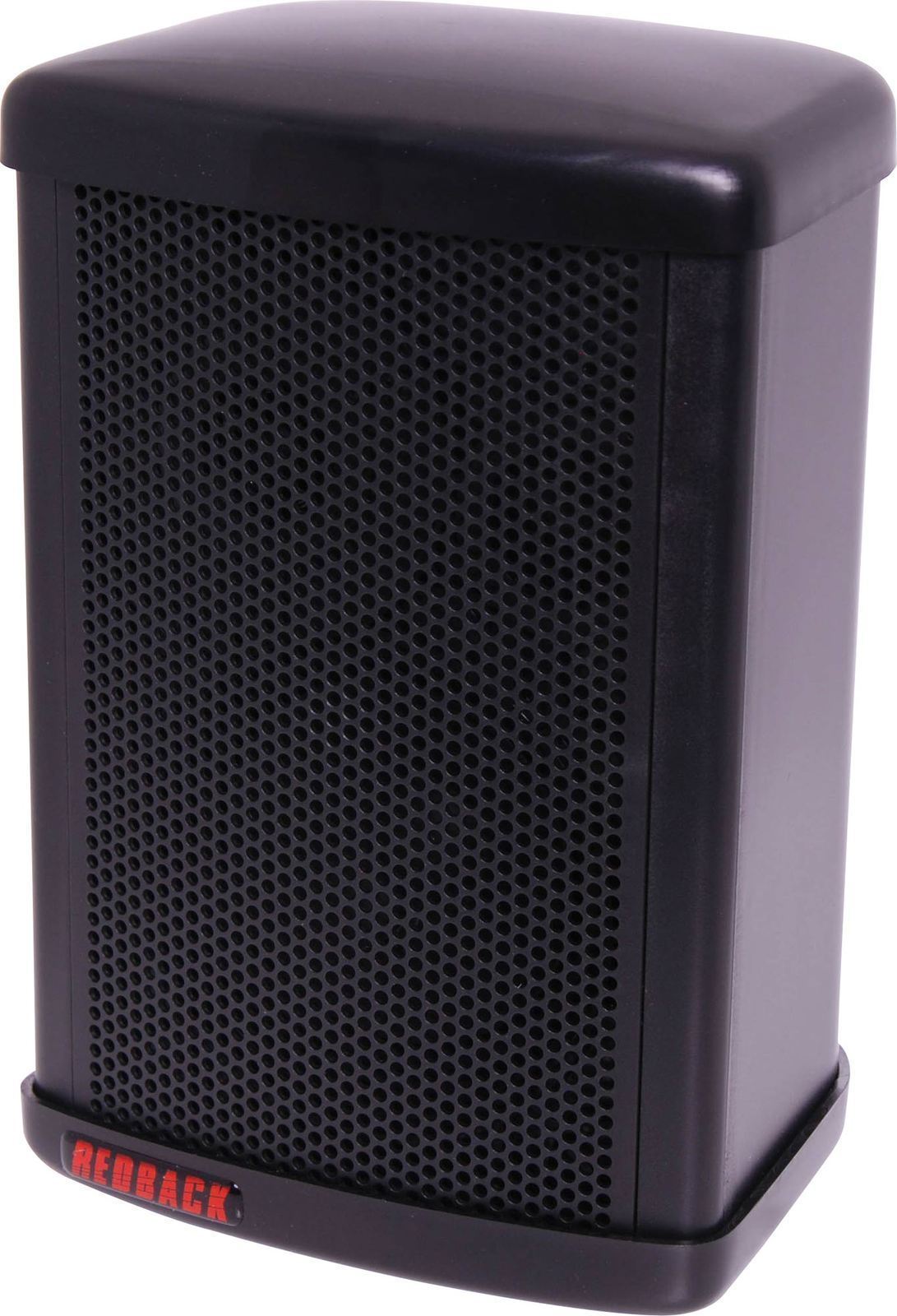

The REDBACK® Sound Monitors are constructed from moulded 'Luran-S' thermoplastic. They feature a two way, bass reflex speaker system with a 100mm bass/midrange driver and a polymide dome tweeter with a custom designed crossover network. They produce a punchy, powerful sound making them ideal for BGM/paging applications in hotels, taverns, shopping centres, halls, schools, and fairgrounds. Included is the revolutionary Wacki bracket mounting system, allowing a wide variation in mounting angles. They are available in either 8 Ohm or 100V line format in white or black.
Includes Wacki® Bracket Mounting System

Suitable for - Home stereo extension speakers for pool, patio, games room etc, taverns, hotels, shopping centres, schools, halls, fairgrounds and all external music and paging applications.

Fitted with a 100V line transformer, allowing the speaker to be tapped at 30, 20, 10 and 5 Watts. Includes Wacki® Bracket Mounting System

Please note these speakers are sold individually to facilitate custom commercial installations
MADE IN AUSTRALIA


FEATURES

• Weather resistant - IP54 rated
• Rugged fully molded high impact UV stabilised ‘Luran S’ thermoplastic
• Available in black or white
• Engineer designed in Australia
• Ported and tuned enclosure for enhanced bass response
• High efficiency, SPL 91dB 30 watt models (1w RMS at 1m at 1kHz)
• Frequency Response 90Hz to 18kHz
• Includes PTC Fuse overload protection
• Supplied complete with Wacki mounting bracket

SPECIFICATION

Electrical

• 100V Power taps: 5, 10, 20, 30W
• SPL 1W @ 1m: 91dB @ 1kHz (+/- 2dB)
• Frequency response: 90Hz-18kHz
• Connection: Multi-core cable

Mechanical

• Grille material: Plastic mesh
• Driver construction: Paper cone with water resistant coating
• Mounting depth (from wall surface - with Wacki® bracket): 187mm
• Overall weight: ≈2kg
• Overall dimensions: ≈230H x 153W x 121D mm

Environmental

• Operating temperature: -10°C to +45°C
• Relative humidity: < 95%

Specifications are subject to change without notice.
