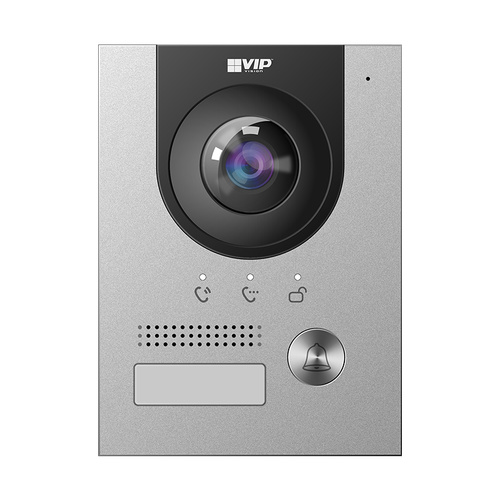

The INTIPRDSG3 is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.

Product features

• 1/2.5’’ 2.0MP 1.9mm lens camera with 169° FOV
• Built-in microphone and speaker for 2-way talk
• Connect with intercom monitor(s) via Ethernet
• Alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP55/IK07 aluminium body
• Power via 48VDC or Power over Ethernet (802.3af)
• Flush and surface mount installation options
• We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
• When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

Specifications

General

• Main Processor - Embedded Microprocessor
• Button Illumination - None
• Card Support - N/A
• Tamper Detection - Yes
• Internal MicroSD Slot - Yes, up to 64GB
• Max. Additional Door Stations - 20
• Max. Indoor Monitors - 10
• App Connection - QR Code

Camera

• Camera System - 1/2.5’’, 2.0 Megapixel CMOS camera with 1.9mm lens (Horizontal FoV: 169°), WDR
• Low-Light Application - Infrared
• Input / Output - 1 x alarm input / 1 x alarm output / 1 x RS485
• Audio / 2-Way Talk - Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
• Ethernet / Network - N/A

Environmental

• Vandal Resistant - IK07
• Ingress Protection - IP55
• Construction - Aluminium
• Installation Options - Supports surface box and flush box mount
• Power Input - 48VDC 1A / PoE (802.3af)
• Power Consumption - <12W
• Dimensions - 130 x 96 x 29mm

Other

• Keypad - N/A
• Series - G Series
