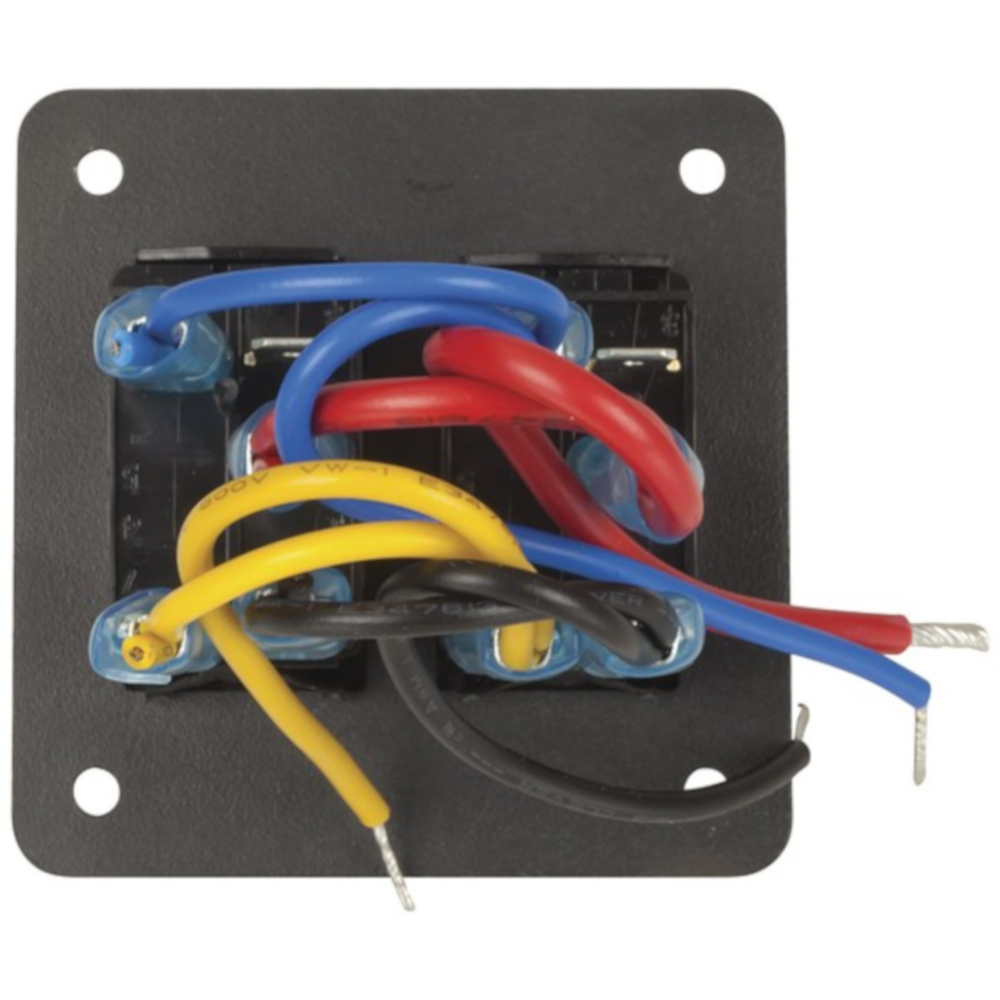

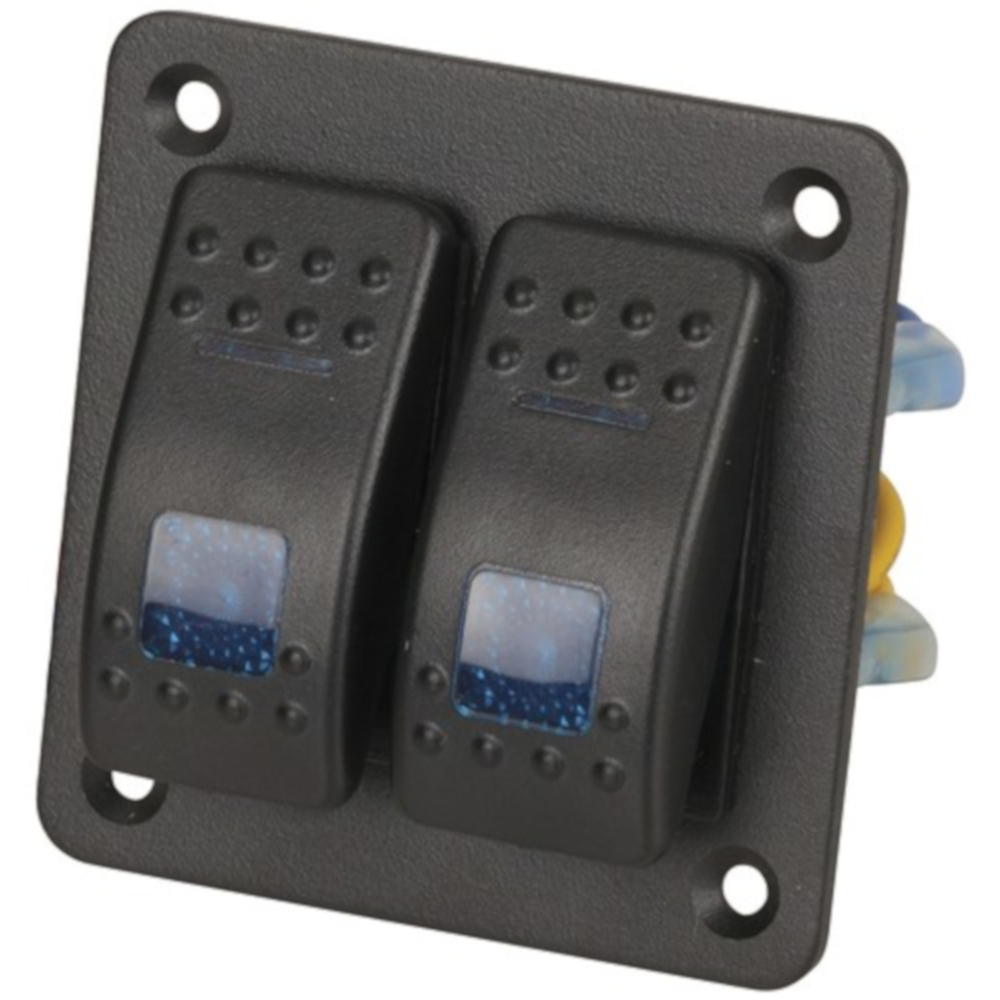

Straight forward installation and wiring, with just four connections - everything else is pre-wired! Then all you need to do is connect your various peripheral devices. Switches are rated at 20A for a 12V system (10A for 24V) up to a maximum 45A per panel. The LED illumination is powered separately, so you can run it through a switch or dimmer too.

Features:
- Easy installation
- High quality switches

- Blue LED illumination


Specifications:
Switch Rating: 12VDC @ 20A, 24VDC @ 10A
Panel Rating: 45A

DC current rating : 20.0A

DC Voltage : 12.0V, 24.0V

Nominal Voltage : 12.0V

Type : 5mm Standard LED

Illumination Colour : Blue

Illumination Position : Top

Width : 70.0mm

Height : 69.0mm

Weight : 105.0g

Square Mount Hole Width : 42.0mm

Square Mount Hole Height : 50.0mm

Switch Type : Rocker

Switch Function : Locking On/Off

Switch Connection : Spade Terminals

(SZ1923)

12 months

SKU SZ1923
Model # SZ1923
Barcode # 9319236747766
Brand BOURNE
Unit Of Measure 1
Assembled Height 0.069m
Assembled Width 0.070m
