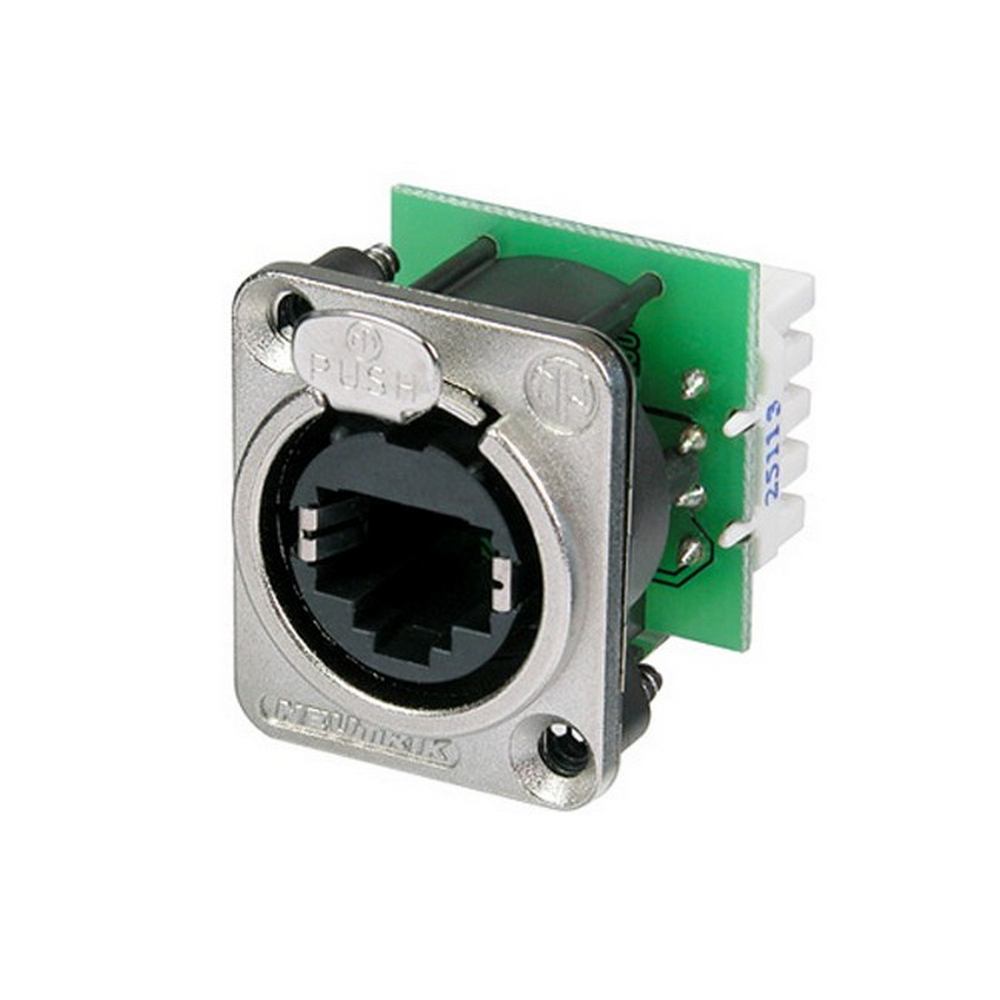

Panel mount receptacle with IDC punch down terminals, D-sized metal flange with latch lock, max. panel thickness 4mm. Mounting screws included.
The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors areshaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Features & Benefits
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
- Selectable ground - panel connection
- Easy and quick mounting using Krone punch down terminals
Technical Information
Products | |
Title | NE8FDV-YK |
Connection Type | RJ45 |
Electrical | |
Contact resistance
|
< 10 mO (inner)
|
Dielectric strength
|
1 kVdc
|
Frequencyrange |
1 - 100 MHz
|
Insulation resistance
|
> 0.5 GO
|
Rated current per contact
|
1,5 A
|
Rated voltage
|
50 V
|
Transmission performance
|
CAT 5e
|
Standard compliance
|
TIA/EIA 586B, IEC11801
|
Mechanical | |
Insertion force
|
= 20 N
|
Withdrawal force
|
= 20 N
|
Lifetime
|
> 1000 mating cycles
|
Panel thickness
|
max. 4 mm 0.16' |
Wiresize |
0.14 - 0.5 mm2
|
Wiresize |
26 - 20 AWG
|
Wiring |
IDC punch down terminals
|
Locking device
|
latch lock
|
Mounting direction
|
front & rear
|
Chassis shape
|
D |
Material | |
Contact plating
|
0.2 µm Au over Ni plating
|
Contacts |
Bronze (CuSn8)
|
Insert |
PBTP 15 % GR
|
Shell |
Zinc diecast (ZnAl4Cu1)
|
Shell Plating | Nickel |
Strain relief
|
CuZn35Pb2, Tin plated
|
Environmental | |
Flammability
|
UL 94 V-0
|
Temperature range
|
-30 °C to +80 °C
|
(PK4510)
12 Months
SKU | PK4510 |
Model # | NE8FDV-YK |
Barcode # | 7613187004957 |
Brand | NEUTRIK |
Assembled Width | 0.026m |
