The PAX series offers three models of mixers/amplifiers designed for commercial applications. All models include a multi-source player, five input mixers, and a power amplifier module of 60W, 120W, or 240W driving low and high-impedance lines.

Thanks to Class-D technology, the sources, mixing, and amplification are contained in one 1U rack unit. The devices can be used in small control rooms or low-ventilation environments, making them an ideal solution for bars, restaurants, retail stores, office buildings, and other applications where paging and background music are required.

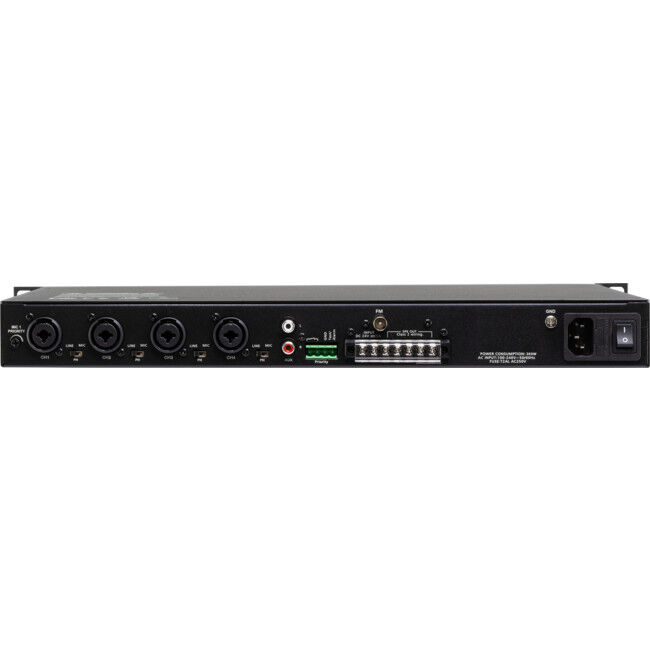

Four mono inputs are available on the combined balanced XLR / TRS 6.35 mm connectors. A switch on each input selects a line or microphone signal level with a 24 V phantom power option.

For the Aux stereo input, both channels are added to a monaural signal. The microphone connected to input 1 can automatically mute other sound sources; the function is activated by a microphone signal. Signal priority can also be activated by a potential-free contact or an external test/alarm signal.

The PAX series is equipped with an MP3 USB-SD player for BGM or recorded messages. The BGM module also includes an FM and Bluetooth FM tuner. We can connect a load with an impedance of 4 Ω to the output power part, but it is also possible to connect a high-impedance load requiring a voltage of 70 V and 100 V. It can also work with a 24 V DC supply voltage, eg from a backup source.

Features:

• Pristine audio quality and ultra-high efficiency
• Compact 1U design
• 240 watt (RMS) commercial mixer amplifier
• Microphone paging with priority override
• On-board Blue Tooth, FM Tuner, MP3 player plays music files from USB memory sticks or SD/MMC cards, front panel stereo 3.5mm AUX input
• Adjustable digital ECHO can be applied to the mic inputs for voice effects
• Four Mic/Line inputs on XLR/1/4” combo jacks
• Mic/Line input 1 and TEL with priority automatic override
• Individually switchable phantom power on all mic inputs
• RCA AUX back panel input
• Master MUTE contacts
• 24V DC emergency operation
• 4ohm, 70V and 100V speaker level outputs
• Automatic reset protection circuity

Specifications:

• AC Input Voltage 100-240V 50HZ/60HZ
• DC Input Voltage 24VDC
• Amplifier Type Class D
• RMS Power @ 4ohms – 240W
• RMS Power @ 70V – 240W
• RMS Power @ 100V 240W
• Frequency Response (+/-3dB) 80Hz – 16kHz
• T.H.D.: Phantom: ≥65dB
• Input Sensitivity Mic: -52dBV balanced
• Input Sensitivity Line: -10dBV unbalanced
• Input Sensitivity Aux: -10dBV unbalanced
• Input Sensitivity Phantom voltage: -52dBV/18V balanced
• Input Sensitivity Test/Alarm: -10dBV balanced
• S/N Ratio: MIC ≥ 65dB , Line ≥ 75dB, AUX ≥ 75dB
• Equalizer controls: BASS: ±10dB (at 100HZ), TREBLE: ±10dB (at 100HZ)

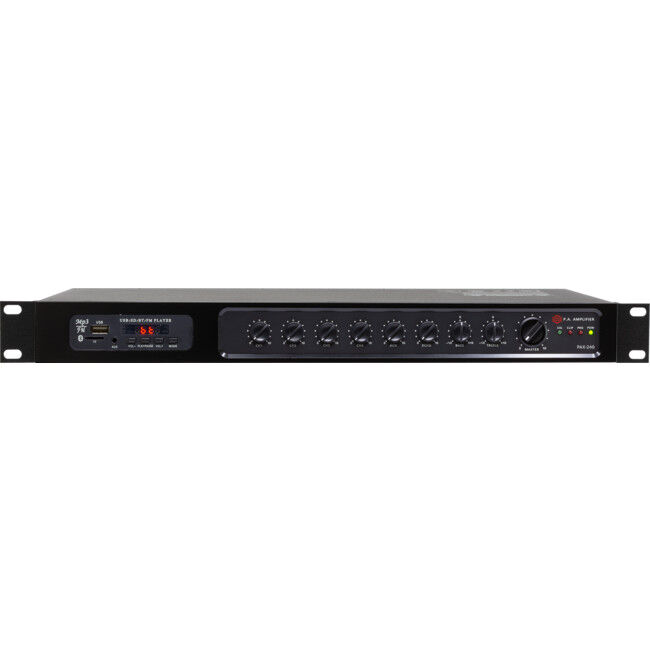

• Controls: 4 INPUT volume, 1 AUX volume, 1 Echo level, 2 Treble / Bass, 1 MASTER volume, Priority level
• Output Connectors – Terminal Block screw type
• BGM Module: MP3 USB-SD player / FM tuner / Bluetooth
• Output (ohm): 4 ohm
• Output (V): 70V, 100V
• Dimensions (W x D x H): 483 x281 x44 mm (19.02"x 11.06" x1.73")
• Net Weight: 5.6kg (12.35lbs)
