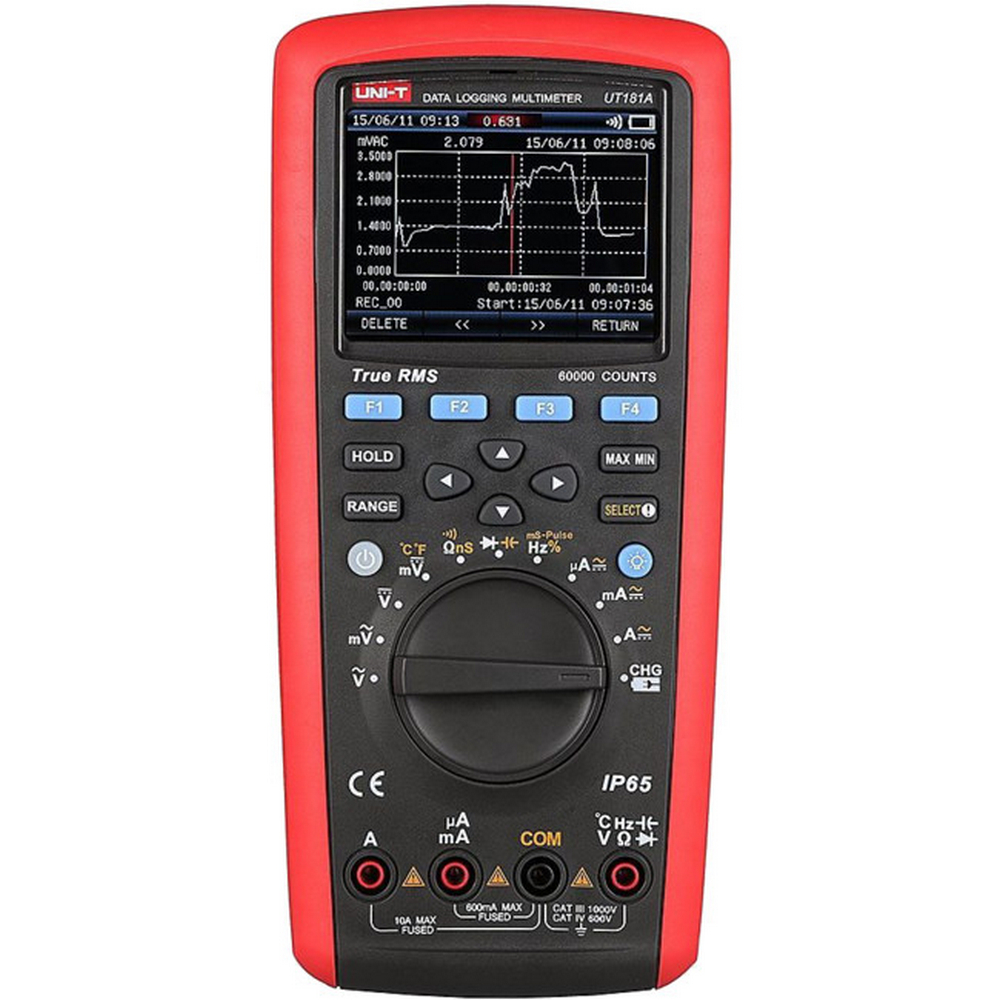

UNI-T UT181A True RMS CAT III 1000V IP65 USB Datalogging Multimeter

Features

Trend capture function: can be a long time to monitorand record the signal change process and form a trend chart for comparison
Higher extended storage 2000 recorded data
Data filtering function: can set upper and lower values of any gear and the measured object is compared, and there is an overproof alarm
Provide more data, multiple readings can be displayedon the screen
Double temperature measurement: intuitive and real-time temperature contrast, improve work efficiency
Low pass filtering: can be used for the measurement of inverter and motor drives
IP65 waterproof, dust should be used for: humid environment and dusty environment
Powered by Li-ion: 2200mAh long endurance capacity donot replace the battery to save the cost of the purchase of battery
True RMS 100KHZ AC frequency response
0.025% basic DC accuracy
Peak hold function can record fast to 250us transient
USB data transmission
Design meet IEC EN61010-1 CAT IV 600V/CAT III 1000V over voltage protection, EN61010-2-030 pollution level 2 anddouble insulation safety etc; wider application range; measurement is more secure, to ensure the safety of personnel and instrumentation.

Specifications	Range	Best Accuracy
Model		UT181A
DC Voltage(V)	60mV/600mV/6V/60V/600V/1000V	±(0.025%+5)
AC Voltage(V)	60mV/600mV/6V/60V/600V/1000V	±(0.3%+30)
DC Current(A)	600µA/6000µA/60mA/600mA/10A	±(0.08%+10)
AC Current(A)	600µA/6000µA/60mA/600mA/10A	±(0.6%+20)
Resistance(O)	600O/6kO/60kO/600kO/6MO/60MO	±(0.05%+2)
Admittance(S)	60ns	±(2%+10)
Capacitance(F)	6nF/60nF/600nF/6µF/60µF/600µF/6mF/60mF	±(2%+5)
Frequency(Hz)	10Hz-60MHz	±(0.01%+5)
Temperature(°C)	-40 °C~1000°C	±(1%+30)
Temperature(°F)	-40°F~1832°F	±(1.5%+50)
Features
Display Count		60000
Auto Range		v
Manual Range		v
True RMS		v
Bandwidth(Hz)	100kHz	v
AC+DC		v
Low Pass Filter	1KHz(-3db)	v
Dbv/dBm		v
Continuity Buzzer		v
Diode	Around 3V	v
Duty Cycle	10% ~ 90%	v
Dual Temperature Measurement	T1, T2, T1-T2, T2-T1	v
Data Hold		v
Peak Hold		v
Relative Mode		v
Data Logging	20000	v
Trend Capture		v
MAX/MIN/AVG		v
Data Time Display		v
Data Comparsion		v
Display Type	3.5 Inches64K Color TFTL LCD (320*240)	v
Backlight Adjustment		v
Analogue Bar Graph		v
USB Interface		v
Mis-Plug Alarm		v
Battery Indication		v
Auto Power Off		v
Re-Chargeable Battery		v
Input Protection		v
Input Impedance for DCV	=10MO	v

General Characteristics
Power	7.4V 2200mAh Li-ion Battery
LCD Size	70mm*52mm
Product Color	Red and Grey
Product Net Weight	638.6g
Product Size	103mm X 225mm X59 mm
Standard Accessories	Test Lead, Battery, Alligator Clip, PC Software CD, USB Interface, BNC Probe
Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	20pcs
Standard Carton Measurement	480mm X 385mm X 505mm (0.085 CBM Per Standard Carton )
Standard Carton Gross Weight	26.5kg
Optional Accessories	Bluetooth Adaptor(UT-D07)
