Overview

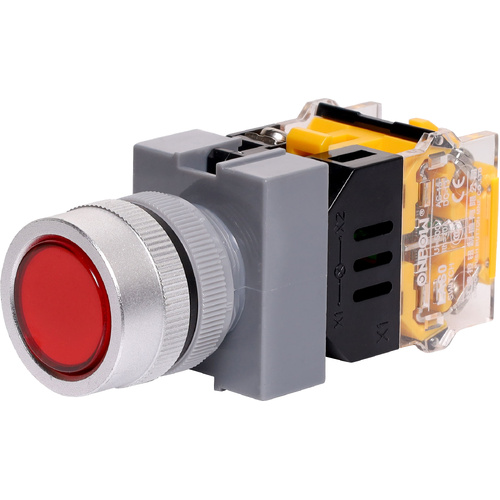

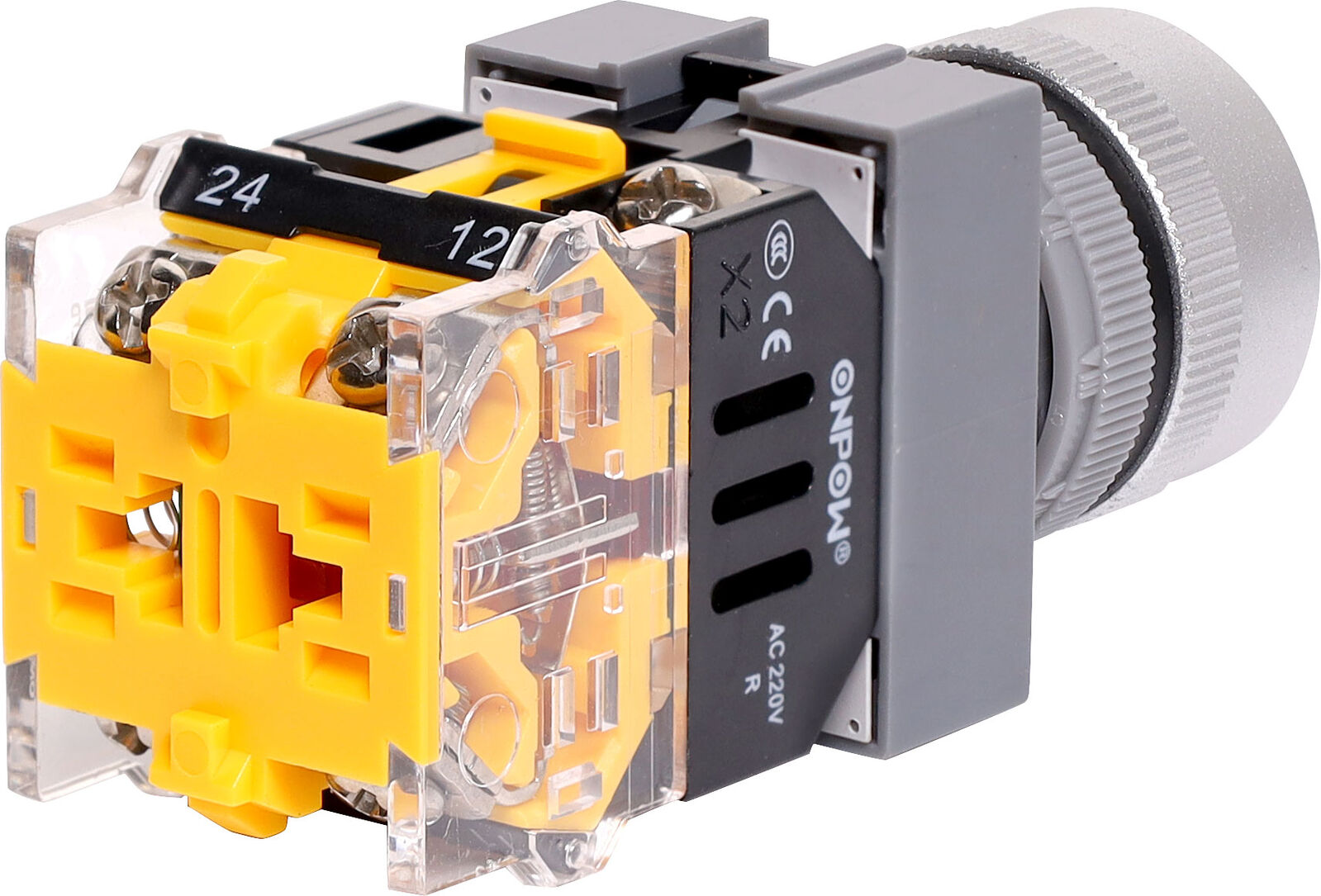

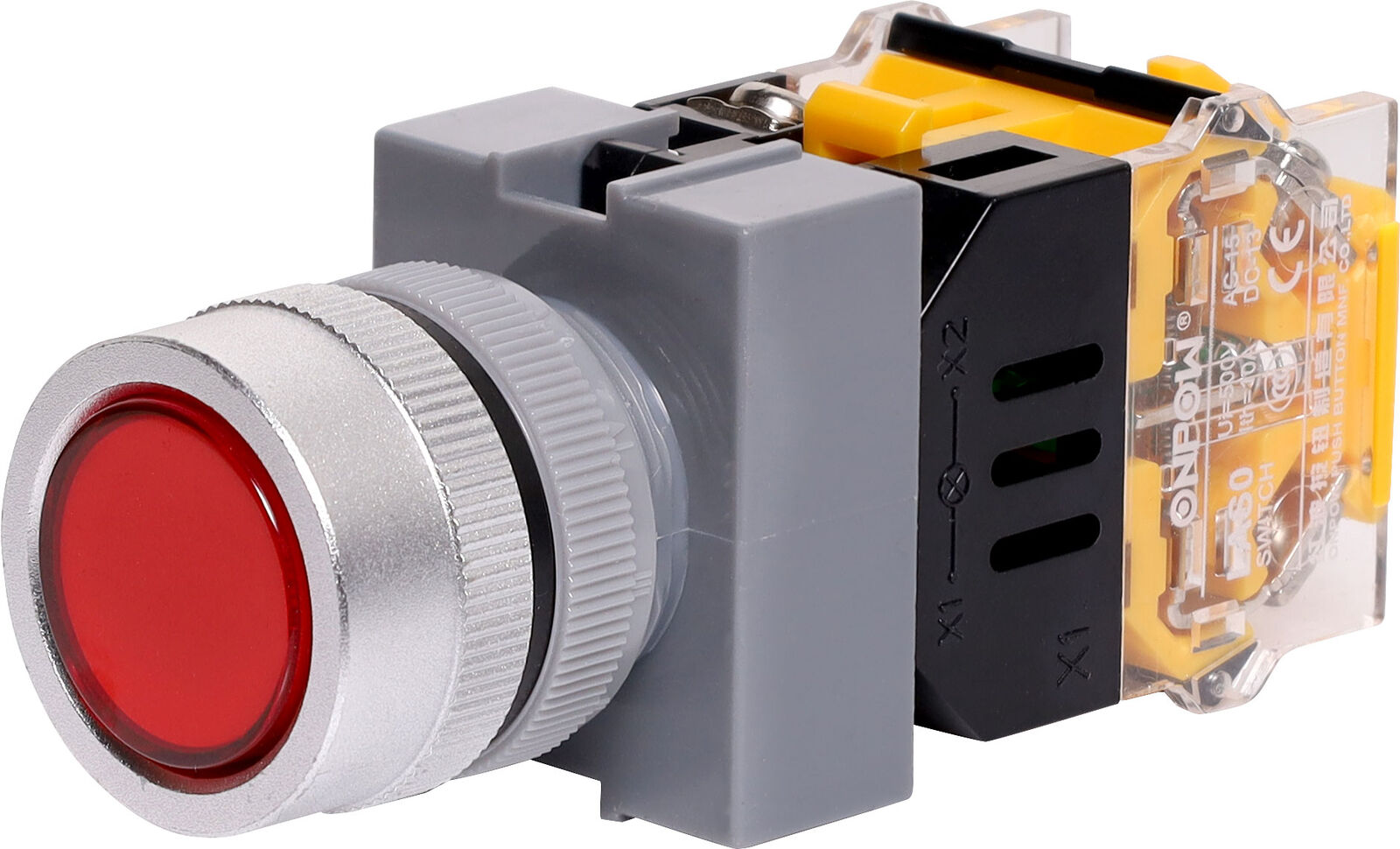

Alternate version of S0827 red industrial switch with the addition of illumination to indicate when the circuit is on. Standard M22 sizing. Suits most industry standard wall boxes or the S 0830/31 shown below. Neon is 220V AC powered.

diagram

Specifications

  • Button Colour: Red
  • Switch rating: 500V 10A
  • Mechanical Life: ?1000,000 cycles (momentary), ?500,000 cycles (latching)
  • Electrical Life: ?50,000 cycles
  • Contact Resistance: ?200m?
  • Insulation Resistance: ?100M? (500V DC)
  • Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min
  • Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)
  • Torque: ~0.6Nm applied to nut
  • Operating force: ~10N
  • Operating travel: ~5mm
  • Front Panel protection degree: IP40
  • Terminal type: Thread connection
  • Diameter of welded wire: 2 x 1.5mm² Max
  • General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52

Materials:

  • Contact: Silver Alloy
  • Button: POM
  • Body: ABS
  • Base: PC

    *Specifications are subject to change without notice.

(SA0827)

SKU SA0827
Model # SA0827
Barcode # 9321758263044
