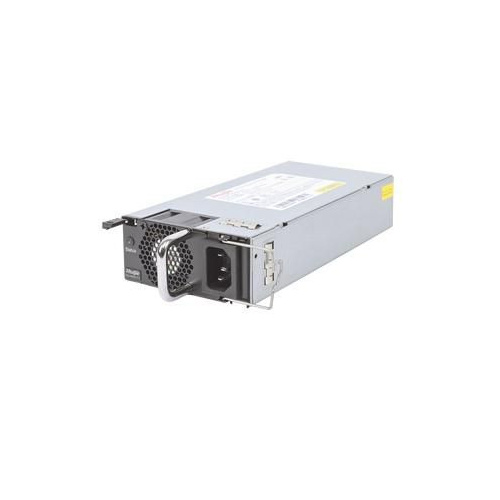

Ruijie PoE Power Adapter for RG-S5310 24 / 48 Port Switch, 370W WIF-RJ-00175

Ruijie PoE Power Adapter for RG-S5310 Series Network Switch, 370W is used with The RG-S5300-E series which are next-generation gigabit Ethernet switches launched by Ruijie according to its design philosophy of security, high efficiency, energy saving, and independent innovation. This series can provide full gigabit access and flexibly extensible 10G uplink data exchanges. With a new hardware architecture and Ruijie's latest RGOS12.X modular OS, the RG-S5300-E series are capable of providing more resource entries, faster hardware processing, and a better user experience.

FEATURES:

AC Power
Up to 370W
1+1 redundancy

Power Model	RG-PA600I-P-F	RG-PD600I-P-F
Maximum input voltage	AC input: 90 V AC to 290V AC; 47 to 63 Hz HVDC input: 192 V DC to 290V DC DC Input: -38 V DC to -75 V DC	AC input: 90 V AC to 290V AC; 47 to 63 Hz HVDC input: 192 V DC to 290V DC DC Input: -38 V DC to -75 V DC
Maximum input current	AC input: 8A HVDC input: 4A	20 A
Input leakage current	≤1.75 mA
Output Specifications
Output voltage	56V	56 V
Maximum output current	10.72 A	10.72 A
Maximum output power	600 W	600 W
PoE output power	<600W	<600 W
Dimensions and Weight
Dimensions (W x D x H)	196 mm x 90 mm x 40mm (7.72 in. x 3.54 in. x 1.57 in.)	196 mm x 90 mm x 40mm (7.72 in. x 3.54 in. x 1.57 in.)
Weight	Net weight: 0.9 kg (1.98 lbs.)	Net weight: 0.9 kg (1.98 lbs.)
Environmental Specifications
Primary airflow	Rear-to-front: Air intake from the connector and air outlet from the front panel	Rear-to-front: Air intake from the connector and air outlet from the front panel
Operating temperature	-10°C to +55°C (14°F to 131°F)	-10°C to +55°C (14°F to 131°F)
Storage temperature	-40°C to +70°C (-40°F to +158°F)	-40°C to +70°C (-40°F to +158°F)
Operating humidity	5% to 95% (non-condensing)	5% to 95% (non-condensing)
Storage humidity	5% to 95% (non-condensing)	5% to 95% (non-condensing)
Operating altitude	-500 m to +5,000 m (-1640.42 ft. to 16404.20 ft.)	-500 m to +5,000 m (-1640.42 ft. to 16404.20 ft.)
Other Specifications
Power cord requirement	10A power cord	DC power cord equal to or greater than 2.5 mm

General Information
Manufacturer:	Ruijie Networks
Manufacturer Part Number:	RG-PA600I-P-F
Barcode:	6971693272781
Packaging Details
Weight:	0.90 KGS
Width:	9.00 (cm)
Height:	4.00 (cm)
Depth:	20.00 (cm)
