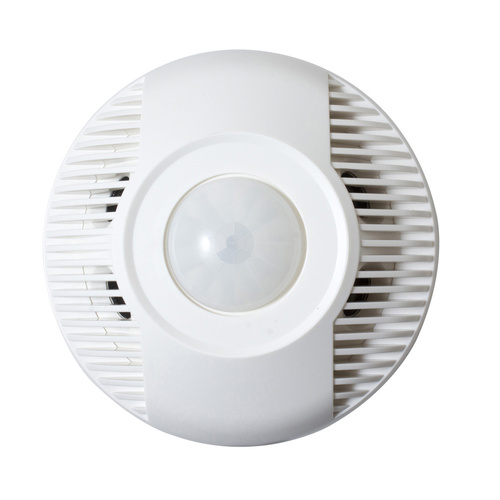

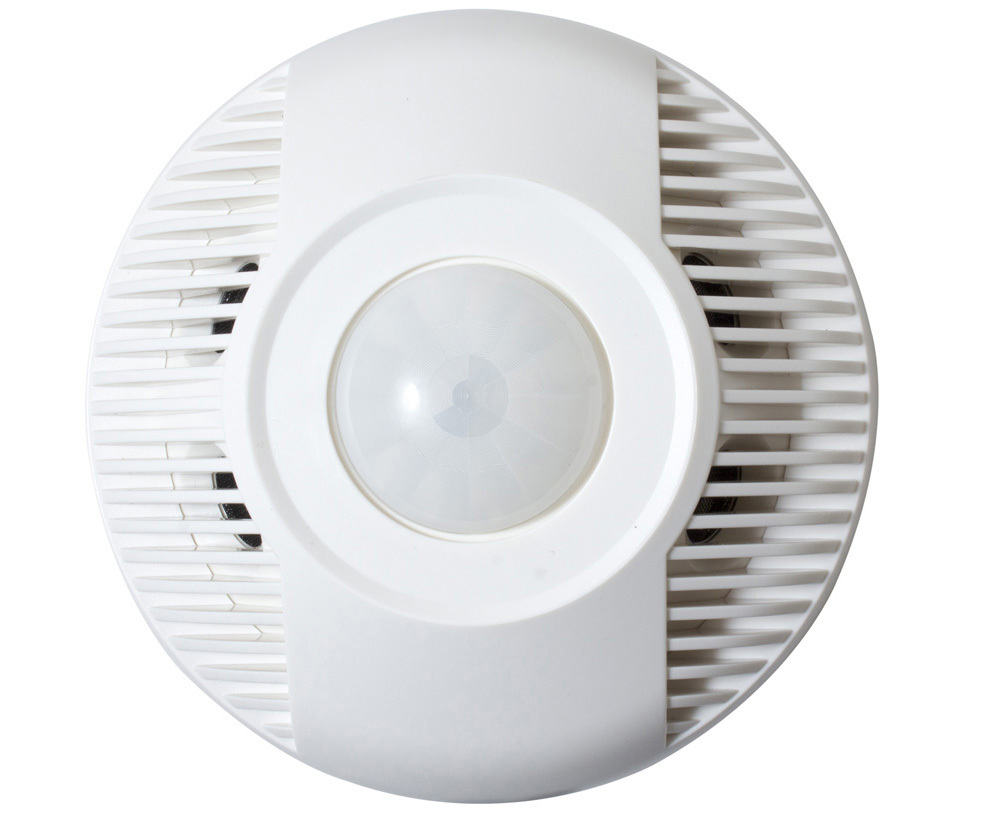

The CPD-360DUALTECH is a user friendly, high-performance presence detector for lighting and HVAC applications.

• The device is built on a powerful combination of PIR and ultrasonic sensor technology to provide superior range and coverage with optimum flexibility.
• The product features one PIR sensor capable of detecting occupancy up to 8 metres in a 360-degree range, and two ultrasonic sensors that detect movement within a 10 by 16 metre distance area.
• Ultrasonic sensors emit a 32KHz ultrasonic sound wave.
• Operating on the Doppler effect, when a human body part moves even slightly it changes the tone of the sound.
• This sends a message to the presence detector, which picks up the change and switches the relay.
• Ultrasonic sensors are an effective method of detecting occupancy because they are able to detect even subtle movements, and are particularly sensitive to movement approaching the device.
• The air current compensation function, used when AC duct affects US triggering, is a bonus feature that can be enabled or disabled as required.
• The CPD-360DUALTECH has four detection modes to choose from, allowing you to tailor the device to your specific requirements:
• Mode 1. PIR/US - Load will switch on when either PIR or US are triggered
• Mode 2. PIR + US - Load will switch on when both PIR and US sensors are triggered, the load will stay on when either PIR or US are         triggered
• Mode 3. PIR only - Load will switch when PIR is triggered
• Mode 4. US only - Load will switch when US is triggered

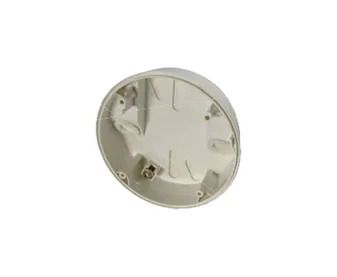

• The unit is suitable for surface mount using the junction box provided. Typical applications include lighting for multi-stall bathrooms and partitioned offices, including glass partitioning.

Features

• High performance 360-degree presence detector with dual technology combining PIR and ultrasonic sensors
• Recessed or surface mount with junction box included
• 8m PIR and 10x16m ultrasonic sensor detection ranges
• Off delay setting from 5 seconds to 30 minutes
• Optional IR remote control

Operating Specifications and Technical Data

• Number of Sensors: PIR x 1 & Ultrasonic x 2
• Detection Range (H = 2.5m):
• PIR: 360 degrees circular, adjustable up to 8m
• US: 360 degrees adjustable up to 10m x 16m, in an oval shape
• Auto Off Timer Adjustment: Adjustable from approx. 5 seconds to 30 minutes
• Lux Adjustment: Adjustable from approx. 10 Lux to 1000Lux
• ACC ON/OFF: Select "ON" for activating or select "OFF" for deactivating air current compensation function
• Triggering Methods: PIR + US, PIR only, US only, PIR or US
• Ultrasonic Sensor Frequency: 32KHz
• Operating Temperature: 0 to +45 degrees Celsius
• Environmental Protection: Class II, IP20

Electrical Data

• Rated Voltage: 220 - 240V ~ 50/60Hz
• For lighting (with jumper wire):
• Incandescent Lamp: max. 2000W
• AC Halogen Lamp: max. 1000W
• LV Halogen Lamp: max. 1000VA/600W (traditional)
• LV Halogen Lamp: max. 1000VA/900W (electronics)
• Fluorescent Lamp: max. 900VA/100uF
• 25 x (1 x 18W) ; 12 x (2 x 18W)
• 15 x (1 x 36W) ; 7 x (2 x 36W)
• 10 x (1 x 58W) ; 5 x (2 x 58W)
• max. 1000VA/600W (uncompensated)
• LED Lamp: max. 400W
• Energy Saving Lamp: max. 600VA/400W (include CFL and PL Lamp)
• For HVAC (remove jumper wire):
• max. 10A (cos = 1) for 250VAC
• max. 5A for 30VDC
• max. 3A (cos = 0.4) for 250VAC
