Overview

Make your next project portable with the reliable battery technology that is Polymer Lithium Ion. These batteries have fast charge times, can reliably hold a charge, and come with complete safety circuitry built-in. These batteries are our go-to option for any portable project.

Polymer Lithium Ion batteries offer superior energy density. With a cell voltage of 3.7 Volts, these batteries are perfect for microcontrollers and other low power devices, especially when paired with a good DC/DC regulator for logic level output.

Built into the battery is an over-voltage, over-current, and minimum voltage protection circuit which makes them even easier to use, although care must be taken when using LiPo batteries. Incorrect charging, usage, or physical damage to the battery can result in a fire. Be sure to only use a specific LiPo charger.

Although these cells are rated for 2C continuous discharge, the wiring and connectors are only rated up to 1A, so be sure to take that into account when determining your power requirements.

Features

• Rated for 2C continuous discharge
• Great energy retention with low self-discharge rates (<8% per month)
• Reliable under extreme conditions

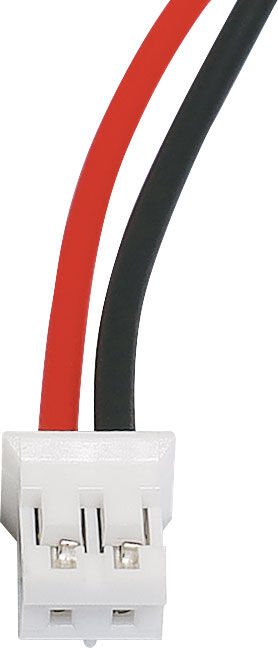

• Standard 2-pin JST-PH connector

Specifications

• Voltage Rating: 3.7V
• Capacity: 1100mAh
• Dimensions: 51 x 34 x 6 mm
• Weight: 21g

  *Specifications are subject to change without notice.
