Overview

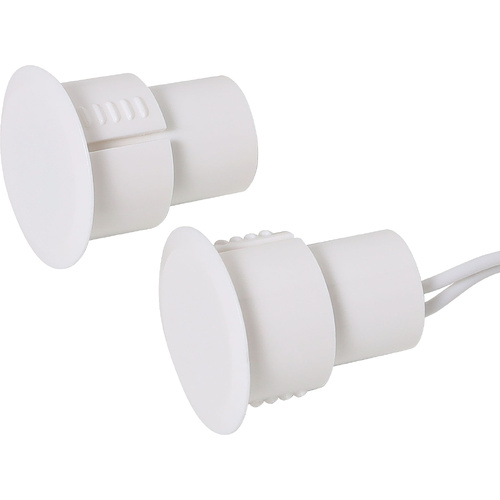

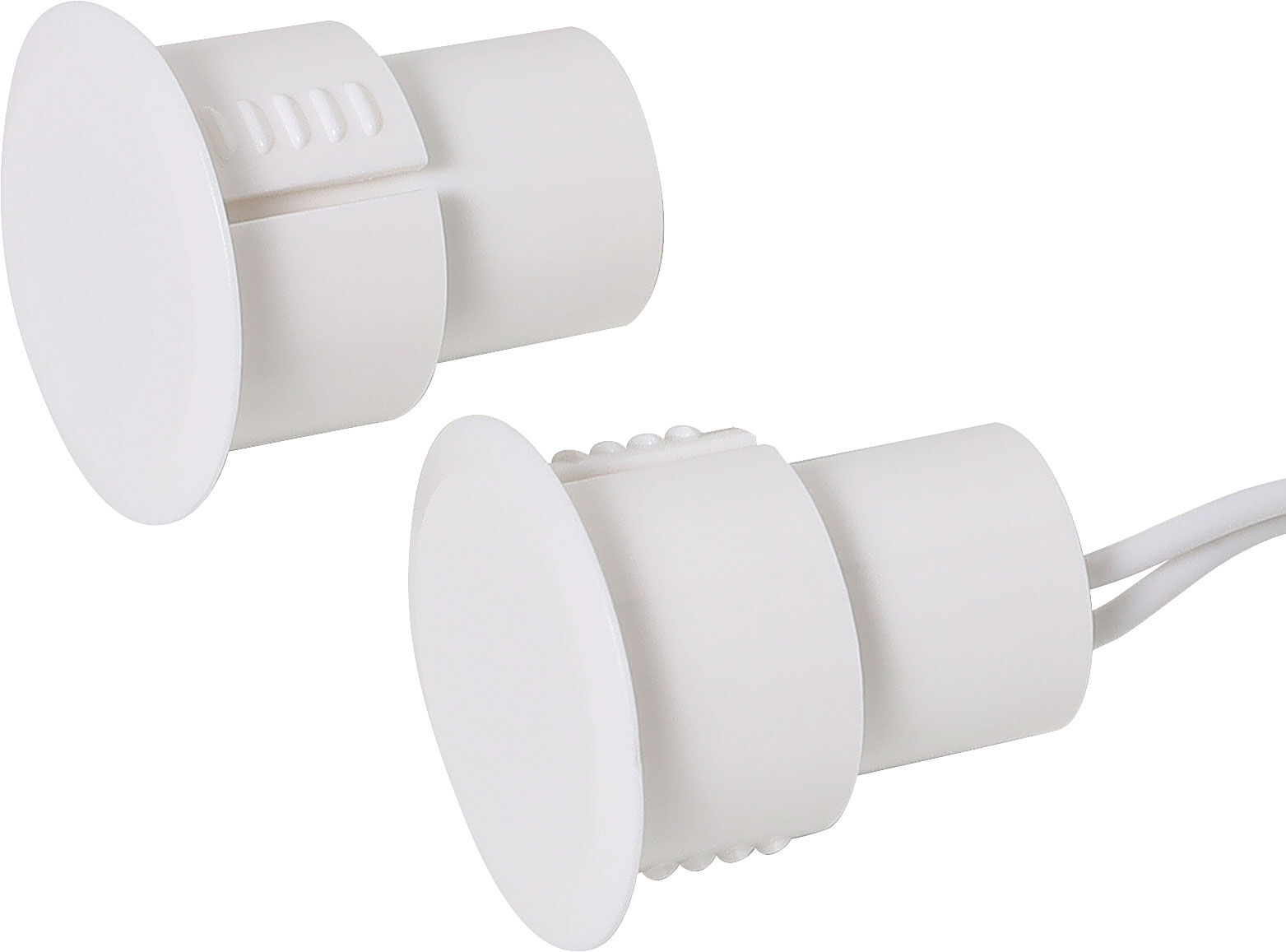

A concealed magnetic reed switch designed for use with metal door frames. Magnetic contact is widely used for alarm systems to detect the state of the door. It consists of a reed switch and a magnet. Normally open switching. When the door closes, the magnet interacts with the reed switch, turning it "ON". When the door opens, the magnet will interact with the reed switch again, turning it "OFF" and triggering the alarm.




Features

• Recessed steel door switch set
• Self locking
• Normally open switching

Specifications

• Contact Type: NO - Switch OFF when magnet near
• Operating Gsp: ?30mm
• Max Switching Voltage: 100V DC/AC
• Max Switching Current: 0.5A
• Operating Load: 10W
• Working Temperature: -20 ~ 80°C
• Working Life: >100,000 times
• Connection Type: 350mm 1007/22AWG
• Material: ABS
