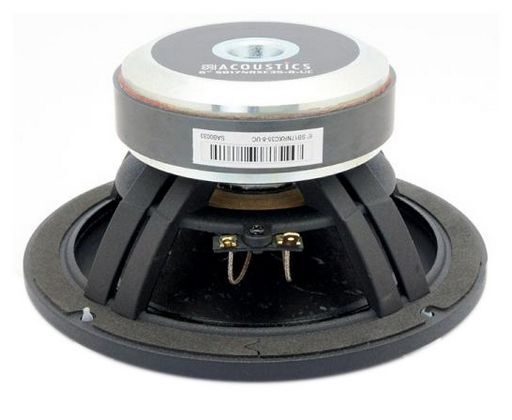

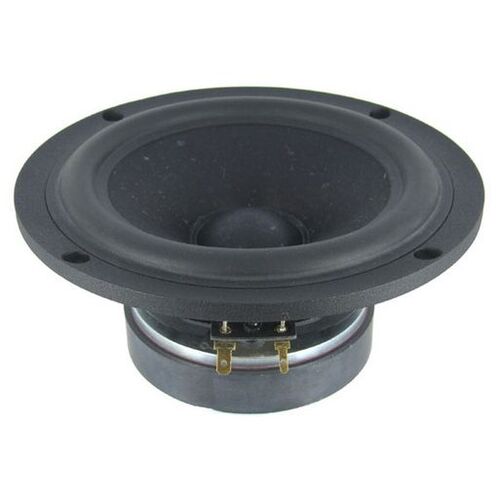

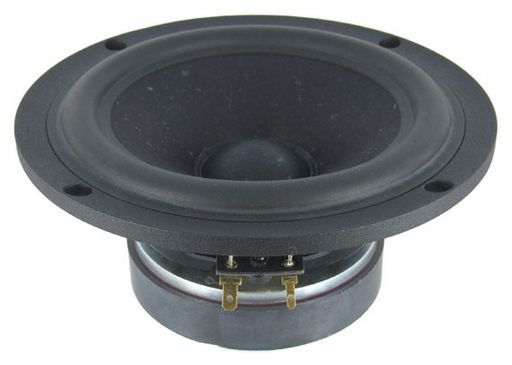

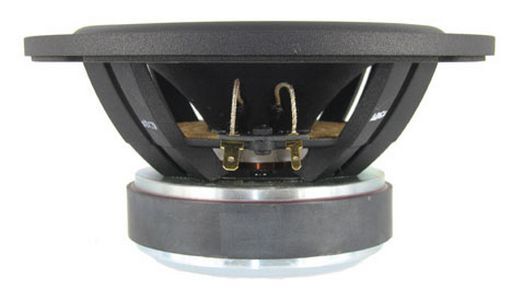

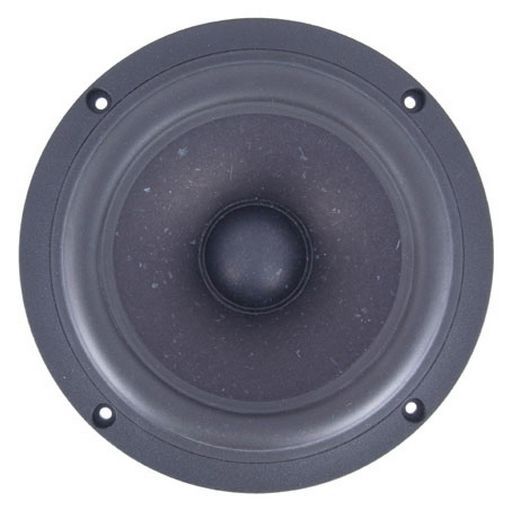

SB17NRXC35-8-UC - SB ACOUSTICS 6.5" MID-WOOFER - NRXC UNCOATED

Newly developed Norex non-resonant papyrus fibre cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive CCAW fibre glass 30mm coil former. Silver lead wires. Vented pole piece. Without poly coating on cone material. Sealed box of 7L for an F3 of 80Hz Vented box of 17L with 50% filling, 50mm vent by 180mm long, F3 of 45Hz

  • Vented cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with natural fibres made in-house
  • Soft low damping rubber surround for transient response
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression

Specifications



Description SB Acoustics 6" Mid-Woofer Norex Cones 8 ohm 60Wrms
Type Mid-Woofer
Size 6'
Price Type each
Power 60Wrms
Coil 35.5mmØ
Width 171mmØ
QTY 1
Impedance 8Ω Re 5.7Ω
Depth 85.9mm
Mag. 0.54kg
Sens. 89dB
Re 5.7Ω
Qms 5.0
Qes 0.36
Qts 0.34
Vas 44.5L
Sd 118cm²
Cms 2.25mm/N
Fs 32Hz
Bi 5.9Tm
Mms 11g
Zn
Le 0.15mH
Rms 0.44kg/s
Diam. 152mmØ
Series Norex Cones
Manufacturer SB Acoustics
Materials Uncoated
Impedance (Ohm) 8 ohm
Power (RMS) 51-100 Watt
Inch 6
Prms 60W
Page 30

(SB17NRXC35-8-UC)

SKU SB17NRXC35-8-UC
Model # SB17NRXC35-8-UC
Brand SB Acoustics
