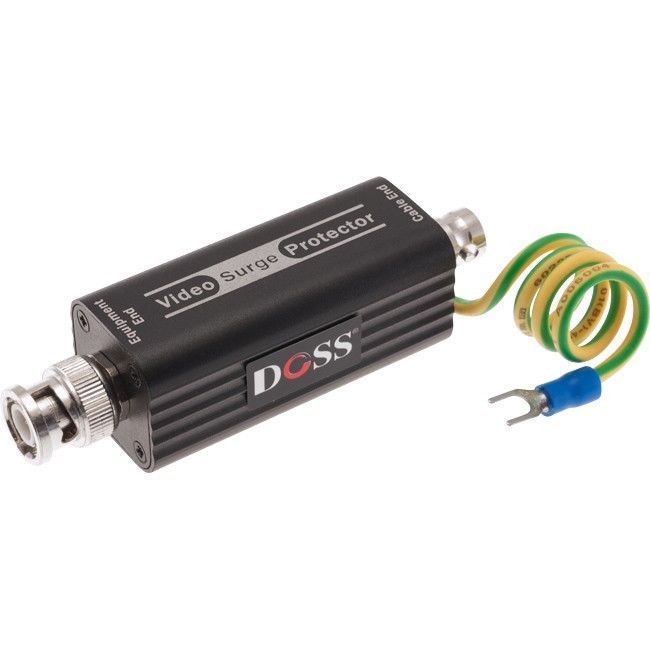

Coaxial Video Surge Protector
The VSP01 is a signal channel coaxial video surge protector designed according to IEC and GB standards. It adopts BNC connectors, features quicker response time, lowerresidual voltage output and lower insertion loss with internationally recognised branded semiconductor components to protect devices from lightning strikes or damage by overvoltage, overcurrent or surge voltage. It is widely usedin cable CCTV transmission, and the protection of electronicmonitoring systems such DVRs, LETs and cameras etc

Features
Designed with lower value capacitors results in lowerinsertion loss and quicker response time
Large through-flow capacity, long life
Adopts internationally recognised branded components
Multi-level protection
Low residual votage
Easy installation and convenient maintainence
Frequency bandwidth: 0~300MHz
Specifications
Application    CCTV transmission,
Electronic monitoring devices such as DVR, LET and cameras etc..
Video    Connector    BNC connector
Normal Operating Voltage)    6V
Max Continuous Operating Voltage)    8V
Nominal Discharge Current (8/20us)    5KA
Nominal Ddischarge Current (8/20us)    10KA
Rated Load Current (IL)    500MA
Limited Voltage    <15V
Response Time    <1NS
Max Transmission Rate    10Mbps
Insertion Loss    <0.2dB
Impedance    75?
Protection Circuit    Unshielded Twisted Pair (UTP)
Failure LED Indication    To the ground short circuit or open
Mechanical    Dimensions (L*W*H)    60*25*25mm
Housing    Aluminum alloy
Body Color    Black
Net Weight    60g
Environmental    Operating Temperature    -20°C ~ 55°C
Relative Humidity    0~95% (non-condensing)
Storage Temperature    -40°C ~ 70°C
