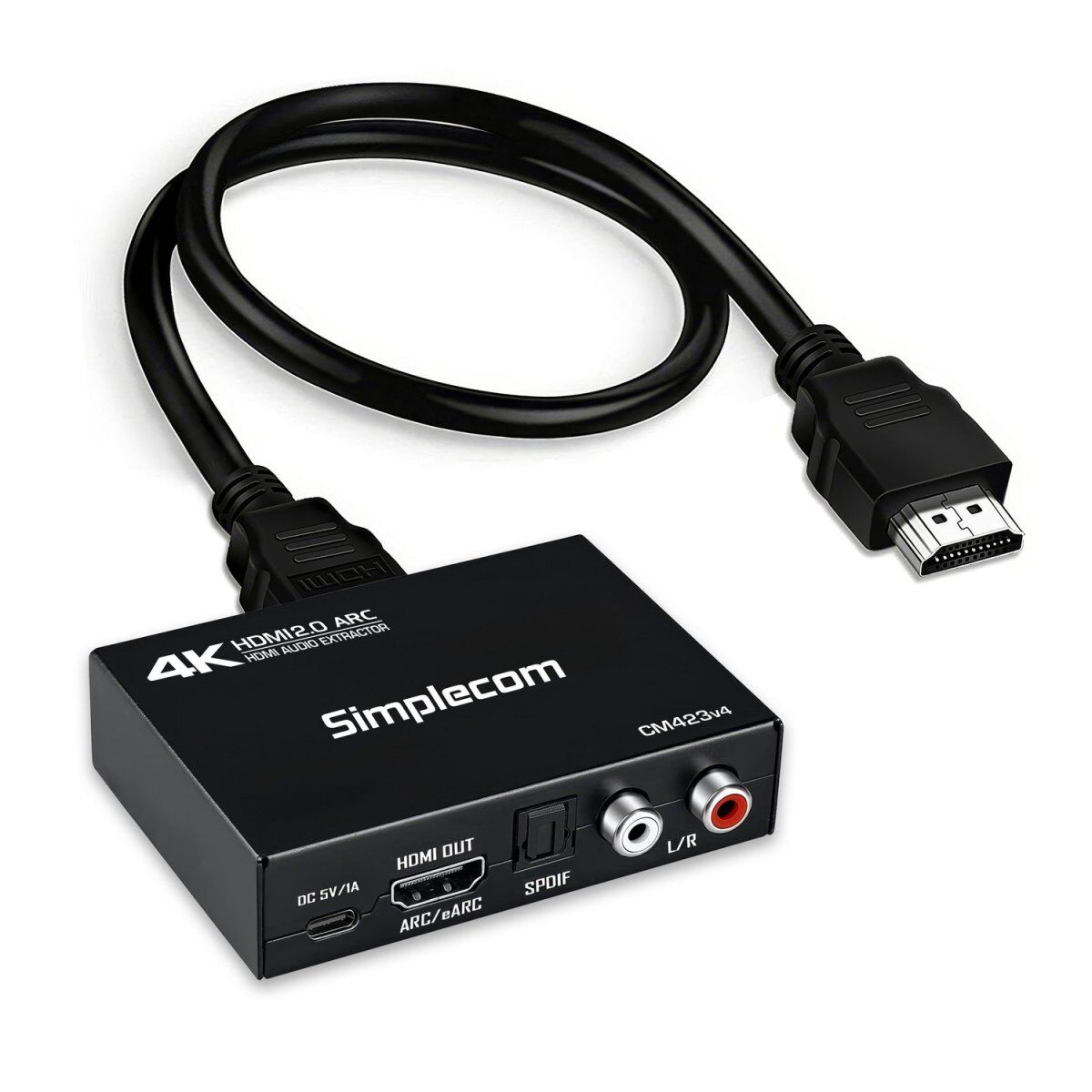

Simplecom CM423v4 HDMI 2.0 Audio Extractor with ARC and eARC

The Simplecom CM423v4 is an HDMI audio extractor designed to separate audio from compatible HDMI sources or from a TV through an ARC or eARC connection. It provides optical SPDIF and analog stereo audio outputs for connection to compatible audio equipment.

Key Features

  • HDMI 2.0b compatible
  • Supports HDMI bandwidth up to 18Gbps
  • Supports video resolutions up to 4K at 60Hz
  • Dual audio extraction modes
  • HDMI input audio extraction
  • ARC and eARC audio extraction
  • HDMI pass-through output
  • Optical SPDIF audio output
  • 3.5mm analog stereo audio output
  • 2RCA analog stereo audio output
  • HDCP 2.2 support
  • USB-C power input
  • Supports HDMI 3D
  • Backward compatible with earlier HDMI versions

Audio Support

Supports compatible Dolby Digital, Dolby TrueHD, DTS, DTS-HD, PCM and LPCM audio formats.

Video Support

Supports resolutions including 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 4K at 60Hz.

Connectivity

The unit features one HDMI input and one HDMI output for HDMI pass-through. Audio can be extracted through optical SPDIF, 3.5mm analog audio or 2RCA analog audio connections.

Specifications

  • Model: CM423v4
  • HDMI Version: HDMI 2.0b
  • HDMI Input: 1
  • HDMI Output: 1
  • ARC/eARC: Supported via HDMI OUT
  • Maximum Bandwidth: 18Gbps
  • Maximum Baud Rate: 18Gbps
  • HDCP: 2.2
  • HDMI 3D: Supported
  • Colour Depth: 24bit, 30bit, 36bit
  • Maximum Input Cable Distance: 10m using AWG26 HDMI cable
  • Power Input: USB-C 5V 1A
  • Dimensions: 85 x 61 x 22mm

Package Contents

  • 1 x HDMI Audio Extractor
  • 1 x 0.5m HDMI Cable
  • 1 x USB Power Cable
  • 1 x Optical Audio Cable
  • 1 x User Manual

(CM423v4)

12

SKU CM423v4
Model # CM423v4
Barcode # 9350414004240
Brand Simplecom
