Single Head IR Emitter - RESI-LINX

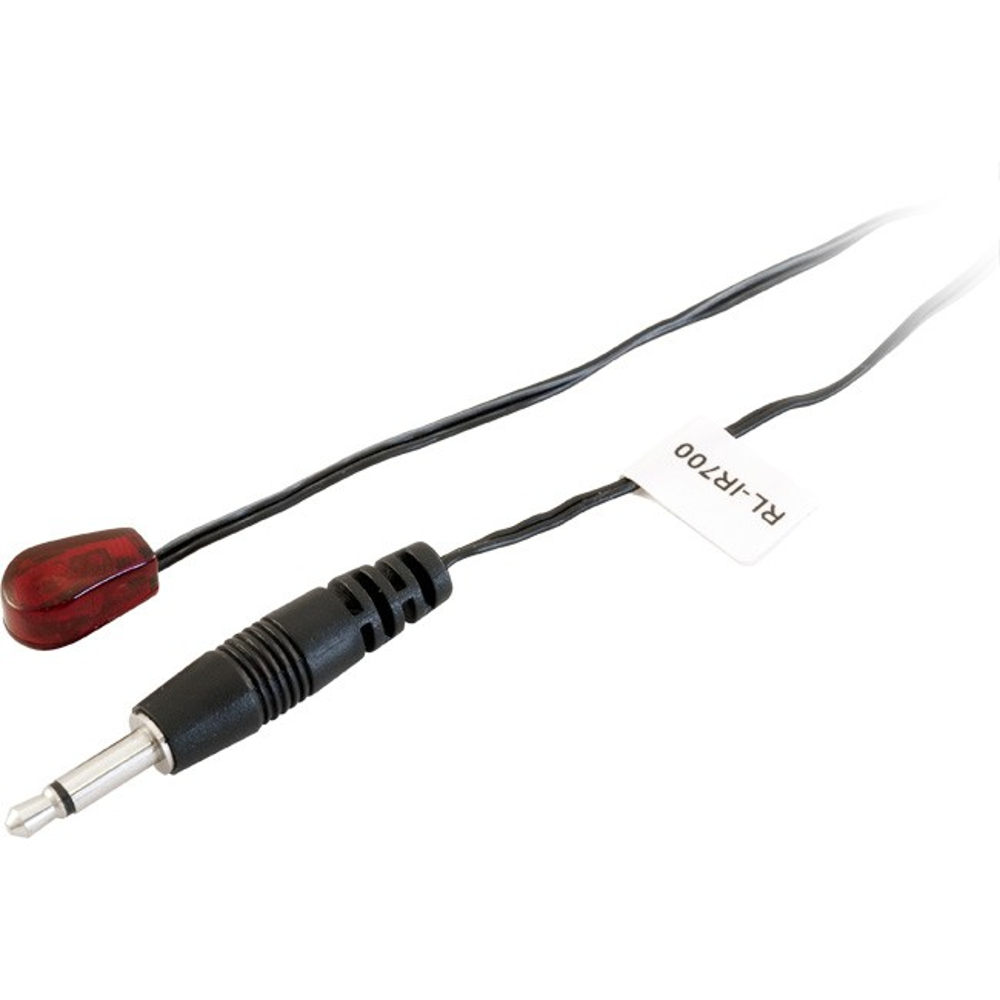

The resi-linx ® RL-IR700 is a single head blaster-type IR emitter that repeats IR remote control signals received at an IR target and sent back through the cable to the AV equipment.

Compatible with RF IR pass back systems (5V) and HardWired IR systems (12V)

FEATURES:

• Single head blaster-type IR emitter that repeats IR remote control signals received at an IR target and sent back through the cable to the AV equipment

• Compatible with RF IR pass back systems (5V) and hard-wired IR systems (12V)

• For connection to resi-linx® modulators connected to a video hub, or to resi-linx® IR range

• Incorporates adhesive backing to facilitate placement in front of the IR sensor of the AV equipment

• For superior performance in discrete IR installations, use RL-ACC160 IR Emitter Shield

• Foxtel Approved (Approval No: F30542) - works with all Foxtel and all other receivers

SPECIFICATIONS:

• Connectors: 3.5mm mini mono jack

• Cord length: 1.75m

• Emitter type: Blaster

• Emitter strength: Up to 200mm away from IR receiver

• Head size (mm): 8 (w) x 15 (l) x 5 (d)
