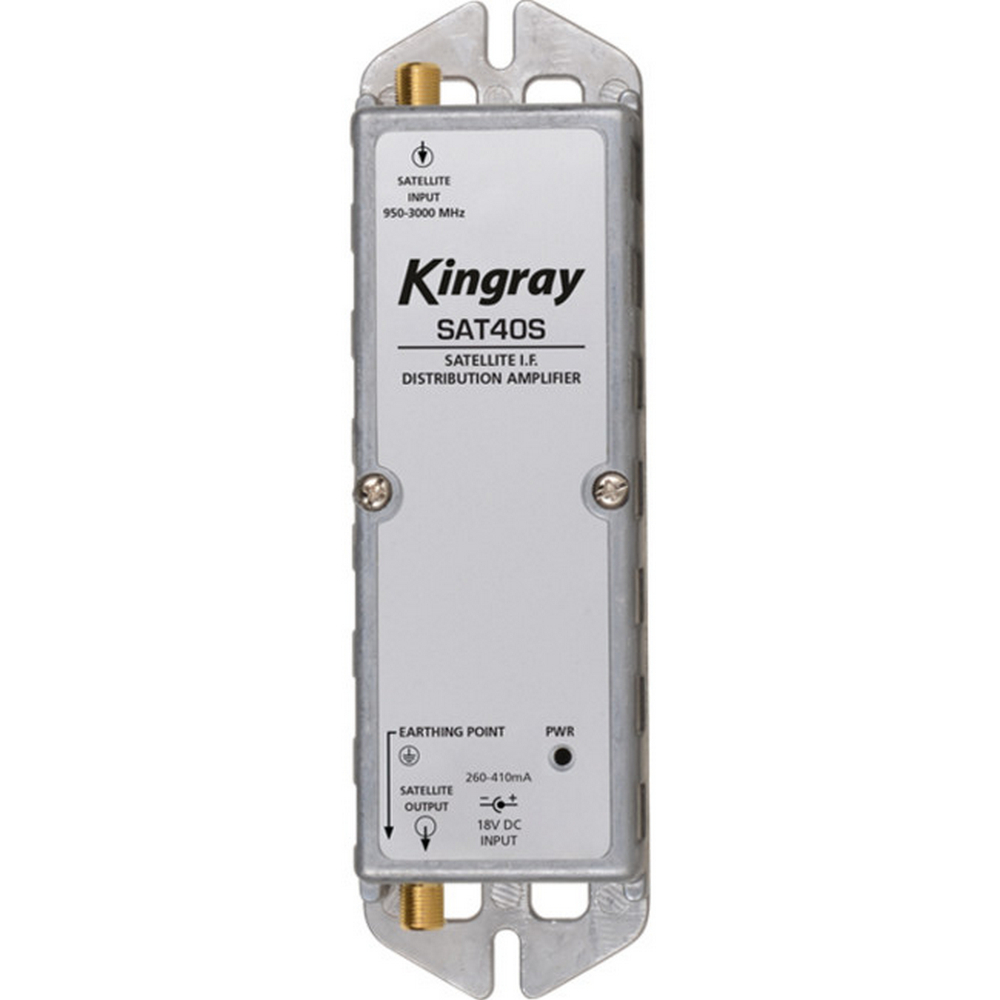

Satellite Distribution Amplifier with 40dB Gain, Single F-Type Input, 950-2400 MHz Frequency Range & can be either locally or remotely powered

  • The SAT40S is a single input, F-Type satellite distribution amplifier typically used in SMATV multiple dwelling applications.
  • It features high output with adjustable gain and equalisation control.
  • The amplifier is designed to be powered by an 18 volt DC power supply, such as the Kingray PSK18S or PSK18F.
  • The SAT40S can be either locally or remote powered.

Features

  • Frequency Range 950-2400 MHz
  • 40dB Maximum Gain
  • 20dB Gain Control
  • 15dB Equalisation Control
  • Single Satellite Input & Output
  • High Return Loss
  • Noise Figure <10dB
  • High Output Figure of 122dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Operating Temperate: -10 to 50 degrees C
  • Power Consumption: 110 - 260 mA (Depending on LNB current drain)
  • Operating Voltage: 18V DC
  • Suitable Power Supply: PSK18S or PSK18F

(SAT40S)

12 Months

SKU SAT40S
Model # SAT40S
Barcode # 9319493273923
Brand Kingray
Unit Of Measure Each
Assembled Width 0.330m
