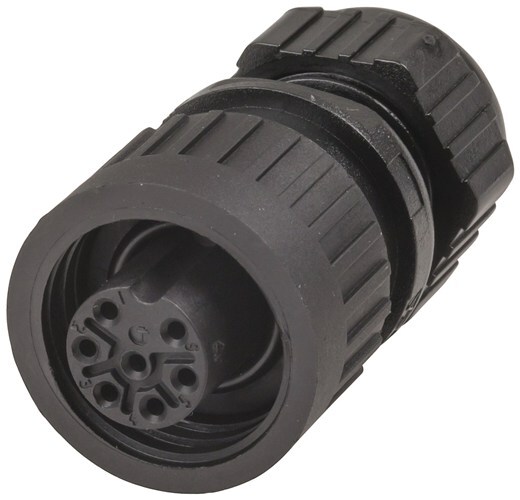

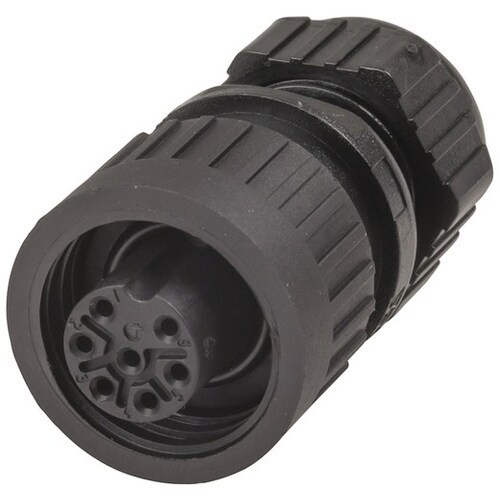

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.

Features:
Insulation resistance: ? 10^8ohm
Contact Resistance: ?5mohm
Contact Material: Silver
Contact Screw: Solder
Wire Conductor (max): 0.75mm²
Temperature range: -40°C to + 100°C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)

Specifications

AC Voltage rating : 380.00000000V
DC current rating : 10.00000000A
DC Voltage : 450.00000000V
IP Rating certificate : true
Plug or Socket Type : C16-1 Series
Device : Socket
Attachment Method : Solder Tag
Pack Quantity : 1.00000000pc
Contacts / Pins : 6.00000000pc
Case Material : Plastic
Insulation resistance : 10.00000000G?




(PS1001)

SKU PS1001
Model # PS1001
Brand BOURNE
