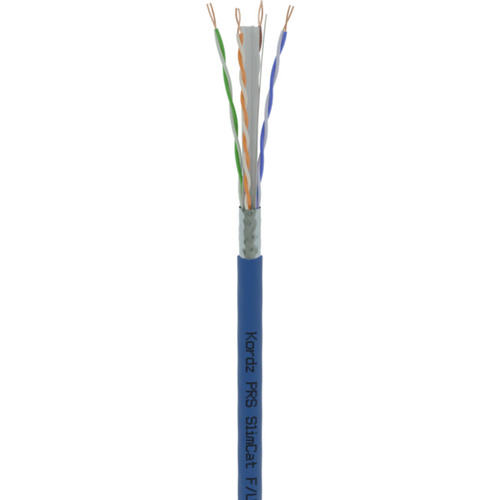

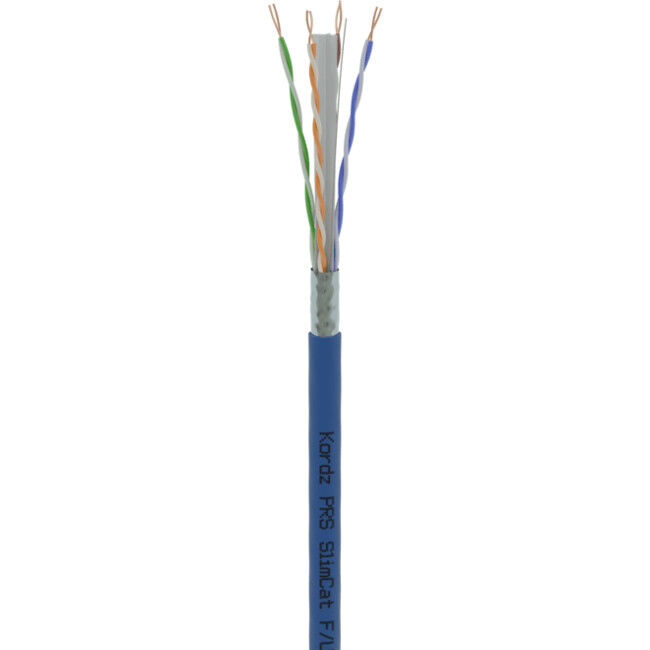

Kordz K34202-305M-BL PRS Series SlimCat™ CAT6A Network Cable IN 305M Pull Box

Kordz PRS SlimCat™ Cat6A Network Cable is the industry-leading highly flexible shielded network cable designed for high performance and high-density installations that delivers all the power in half the size and goes where other Cat6A cables can’t The slim 5mm diameter Cat6A F/UTP cable reduces bulk and makes installation easier whilst delivering IEEE802.3bt PoE++ at 100W and 10Gbps network connectivity up to 50 metres.

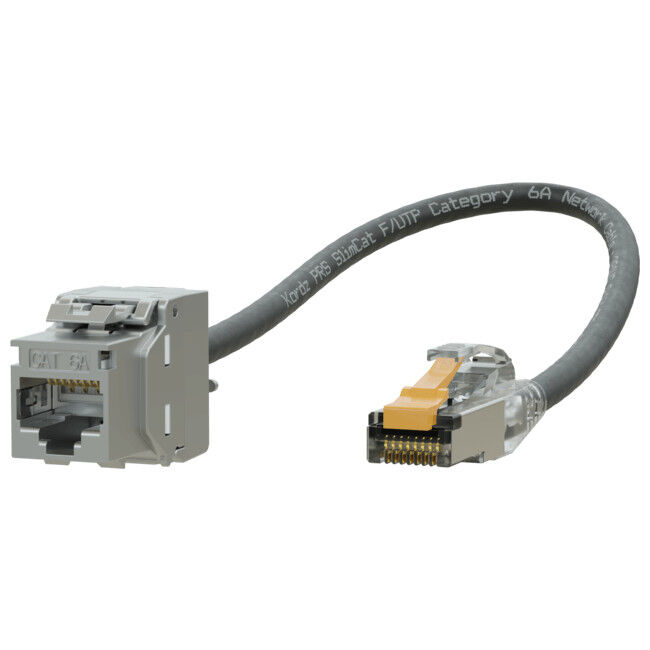

Complete the Kordz PRS SlimCat™ system by pairing the cable with Kordz PRS SlimCat™ RJ45 Shielded Crimp Connectors (T3R58M-6A2S-CL -100PK) and Cat6A Keystone RJ45 Sockets (T3R48J-C6AS-ME) to ensure reliable, compact connectivity.

• Delivers ANSI/TIA-568.2-D Cat6A permanent link performance up to 50m, ideal for small and medium size installations
• Space-saving F/UTP design, enabling reliable wired networks to the places other systems can’t reach
• Reducing bundle sizes by almost half (cross-sectional area)
• 3bt 100W PoE++ capable
• Simultaneous UL444 CM and CPR Dca fire rating for full compliance with US and EU safety requirements
• Conveniently packaged in a Reel-in-Box delivery system that’s easy to identify in a van or on-site
• AS/NZS S008:2010 compliant
• RoHS compliant
• Kordz Lifetime Warranty

Technical Info

Construction

Conductor: 28AWG solid OFC 0.338 +0/-0.02mm
Insulation: Polyethylene, 0.67±0.1 mm
Twisting: 4 Twisted pairs of conductors, 2 single conductors paired
Twisted Pair Colour Code: 1: white-blue / blue 2: white-orange / orange 3: white-green / green 4: white-brown / brown
Shielding: Shielded (F/UTP)
Jacket Material: FRLSZH composite
Outer Diameter: 5.0 ± 0.5 mm

Mechanical

Minimum Bend Radius: Without load ≥ 16.0 mm; with load ≥ 32.0 mm
Temperature Range: During operation -20 °C to 60°C; During installation 0°C to 50°C

Electrical

DC Resistance: Max. 23.6 Ω/100 m at 20°C
Resistance Unbalance: Max. 4% at 20°C
Insulation Resistance (500V): Min. 5000 MΩ/km at 20°C
Mutual Capacitance: Max. 5.6 nf/100 m at 1 kHz
Capacitance Unbalance(Pair to ground): Max. 330 pf/100 m at 1 kHz
Nominal Velocity of Propagation: Nom. 67%
Test Voltage (DC, 1min): 1 kV / 1 min
