SC stands for Subscriber Connector - a general purpose push / pull style connector

SC Connectors are frequently used for newer network applications. The square, snap-in connector latches with a simple push-pull motion and is keyed. They feature a 2.5mm ferrule and molded housing for protection.

Features

  • Superior qualified standard PC/ UPC/ APC polishing
  • Compliant with Telcordia GR-326-Core, TIA/ EIA and IEC
  • 100% optic test (Insertion Loss & Return Loss)
  • Single mode
  • Comply to IEC Standard
  • Flexible boot are available
  • PVC/ LSZH

Applications

  • High Speed and volume Fibre Optic Transmission Systems
  • CATV Networks
  • LAN
  • Fibre Optic Instrumentation

Specifications

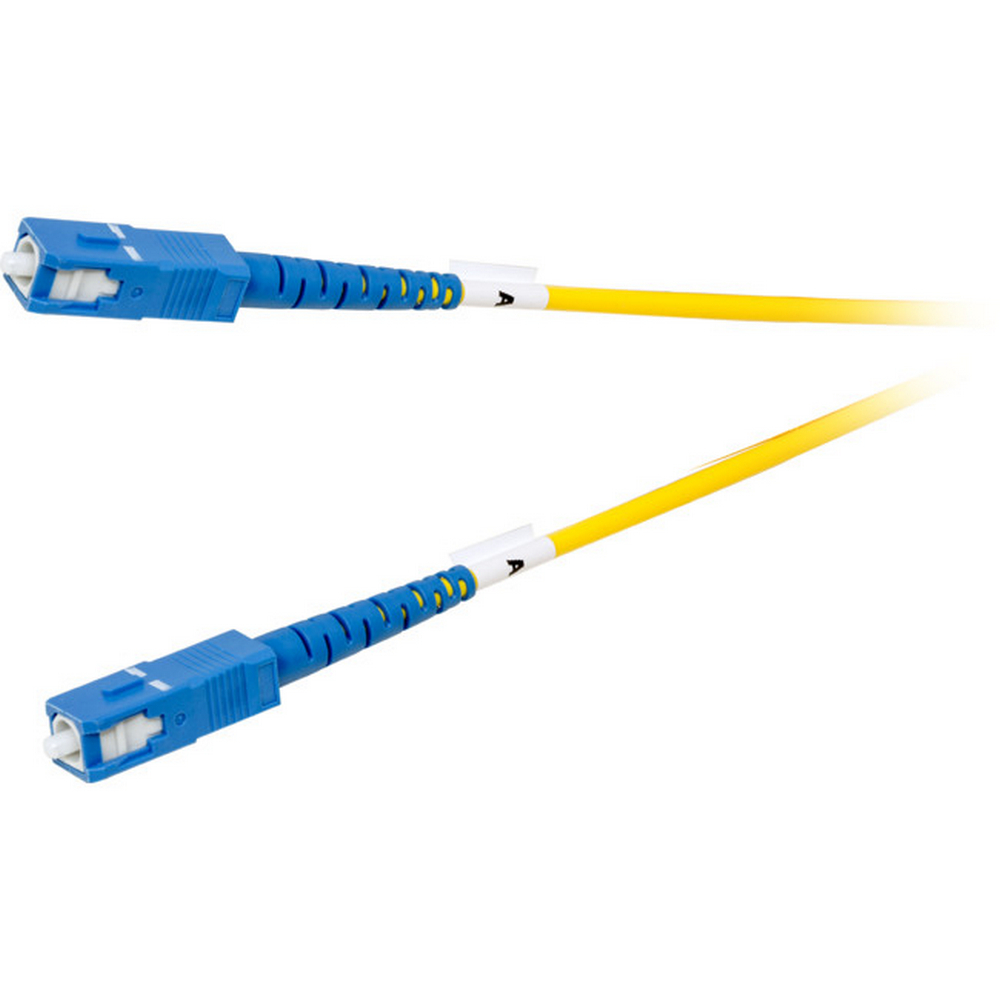

Patch Cord/Pigtail Spec
Type SC/UPC to SC/UPC Single Mode SX 3.0mm
Insertion loss A1: 0.17dB, A2: 0.13dB
Return Loss A1: 63.2dB, A2: 64.1dB
Repeatability ≤0.1dB
Durability ≥1000matings
Operating Temperature -40 °C to +80 °C
Tensile Strength(N) ≥90N (f3), ≥70N (f2)
Cable Length 100m

(FIB100SF)

12 Months
SKU FIB100SF
Barcode # 9328202021076
Brand Pro.2
Unit Of Measure Each
Assembled Width 0.681m
