SMART BATTERY VIDEO DOOR BELL

Overview

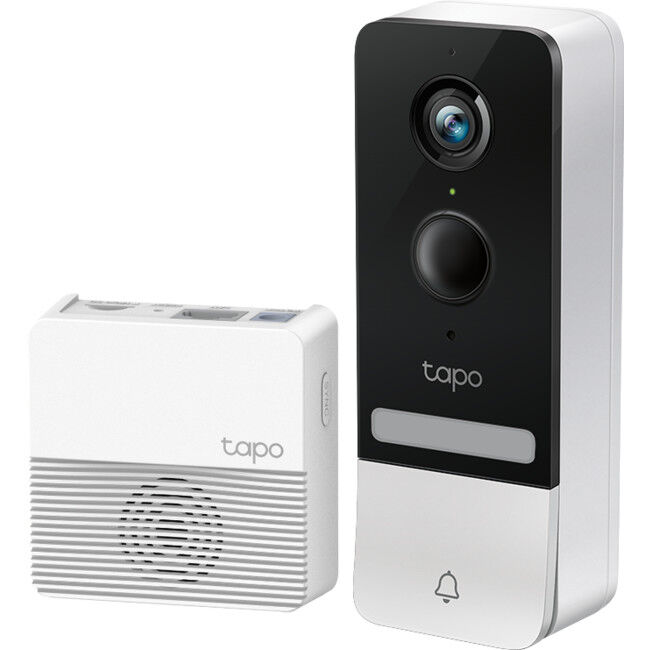

TP-LINK D230S1 TAPO SMART BATTERY VIDEO DOOR BELL

2K 5MP Live View: Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.
Colour Night Vision: With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and colour at night.
Head-to-Toe View: With the camera’s ultra-wide FOV (160° Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m*¹, which shows more vertical details than other 16:9 doorbells.
Flexible Placement, Flexible Views: Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.

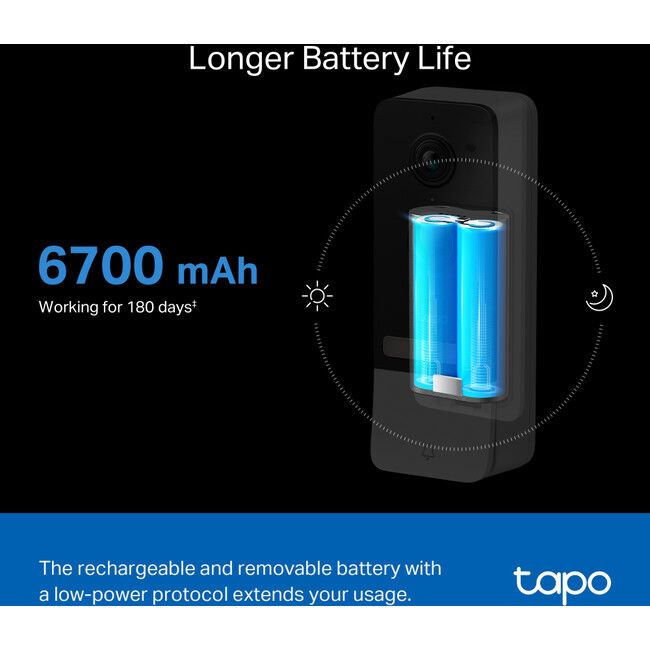

Longer Battery Life: The rechargeable and removable battery with a low-power protocol extends your usage.
Smart AI Detection and Notification: Smart AI algorithms identify people and cars, and notify users as needed.
Multiple Ways to Answer: With two-way audio or a recorded quick response, communicate directly with your deliveries through the Tapo app.
Flexible Storage Choice: Save recorded videos on the hub-installed microSD card*³ (up to 512 GB) or by using Tapo Care*⁴ cloud storage services.
Anti-theft Alarm: Be alerted when someone trying to take the doorbell off with the anti-theft alarm function.
IP64 Water & Dust Resistant: Operates well on rainy days and in damp environments.

1: The data is measured based on the optimal installation height of 1.2m of the doorbell, the actual distance will be affected by the installation height.

2: Battery life of up to 180 days is based on TP-Link's laboratory testing triggering 10-20 events per day. Actual battery life may vary based on device settings.

3: MicroSD card purchased separately.

4: Subscribe Tapo Care at https://www.tapo.com/en/tapocare/.

Specifications

CAMERA	Image Sensor	1/2.7″ Progressive Scan CMOS Sensor
	Lens	Focal Length: 2.1 mm Aperture: F2.1 Field of View: Diagonal: 166° Horizontal: 135° Vertical: 102.8°
	Night Vision	850 nm IR LED (25ft / 7.6m) Full-Color Night Vision
	Weatherproof Rating	IP64
	Viewing Angle	160° Diagonal
	Resolution	2K 5MP (2560 × 1920px)
VIDEO	Frame Rate	15 fps
	Video Streaming	2K 5MP
	Audio Compression	G.711
	Video Compression	H.264
AUDIO	Audio Communication	2-way audio
AUDIO	Audio Input & Output	Built-in microphone and speaker
NETWORK	Protocol	TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
	Wireless Security	WPA/WPA2-PSK
	Standards and Protocols	IEEE 802.11b/g/n, 2.4 GHz
	Security	128-bit AES encryption with SSL/TLS
	Frequency	2.4 GHz
ACTIVITY NOTIFICATIONS	Input Trigger	Motion detection, Package Detection, Person detection, Pet detection, Vehicle detection
ACTIVITY NOTIFICATIONS	Output Notification	Notification, Snapshot (Tapo Care), Clips (Tapo Care)
ENVIRONMENT	Operating Temperature	−20°C to 45°C (−4°F to 113°F)
	Storage Temperature	−20°C to 45°C (−4°F to 113°F)
	Operating Humidity	10%~90% RH, Non-condensing
	Storage Humidity	5%~90% RH, Non-condensing
HARDWARE	Button	Doorbell Button: Reset/SYNC/Anit-Theft Button Hub Button: Reset Button; SYNC Button
	Indicator LED	Doorbell Indicator LED: System LED Hub Indicator LED: System LED
	Adapter Input	Doorbell Adapter Input: 100-240V, 50/60Hz Hub Adapter Input: 100-240V, 50/60Hz, 0.3A
	Adapter Output	Doorbell Adapter Output: 5.0V, 1.0A Hub Adapter Output: 9.0V, 0.85A
DIMENSIONS	Camera Dimensions (L×W×H)	146mm × 54.5mm × 35.5mm (5.7″ × 0.21″ × 1.3″)
DIMENSIONS	Hub Dimensions (L×W×H)	71.45mm × 71.45mm × 31.25mm (2.8″ × 2.8″ × 1.2″)
