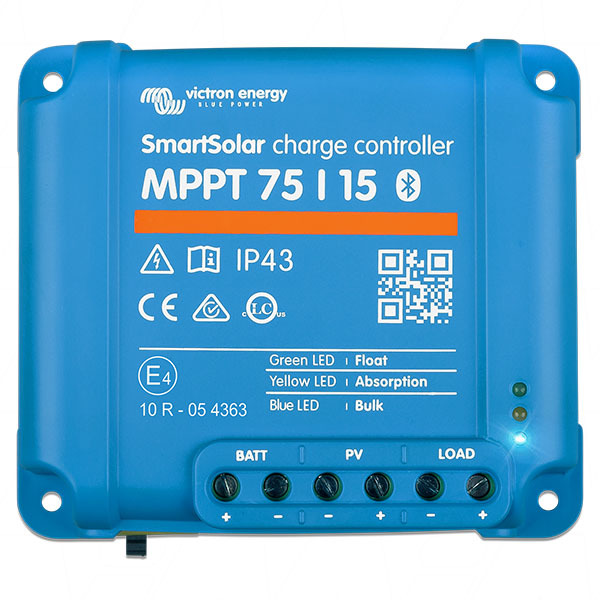

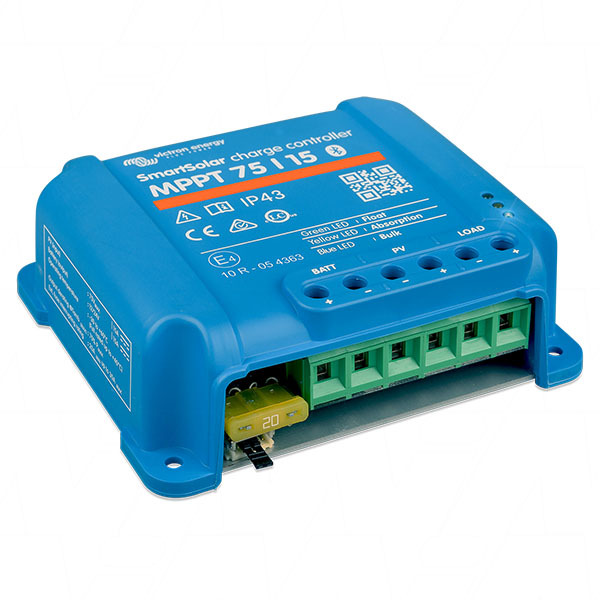

SmartSolar MPPT 75/15 solar charge controller from Victron Energy with:

  • 12V/24V auto select battery voltage
  • 15A rated charge current
  • 220W @12V or 440W @24V maximum PV power
  • Automatic load disconnect
  • 98% peak efficiency
  • Reverse polarity (fuse) protection, output short circuit protection, over temperature protection

Bluetooth Smart built-in: dongle not needed

  • The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct

  • For a wired data connection to a Color Control panel, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)

  • Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output

  • Over-discharge of the battery can be prevented by connecting all loads to the load output.
  • The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
  • Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
  • The load output is short circuit proof.

Battery Life: intelligent battery management

  • When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged' state and the ‘end of discharge' state.
  • This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
  • The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%.
  • From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm

  • See the software section on our website for details

Day/night timing and light dimming option

  • See the software section on our website for details

Programming, real-time data and history display options

  •  Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.
  •  ColorControl panel

(SmartSolarMPPT75-15)

12 Months

SKU SmartSolarMPPT75-15
Model # SmartSolar MPPT 75-15
Barcode # 8719076040804
Brand Victron Energy
Unit Of Measure Each
Assembled Length 0.040m
Assembled Height 0.100m
Assembled Width 0.113m
