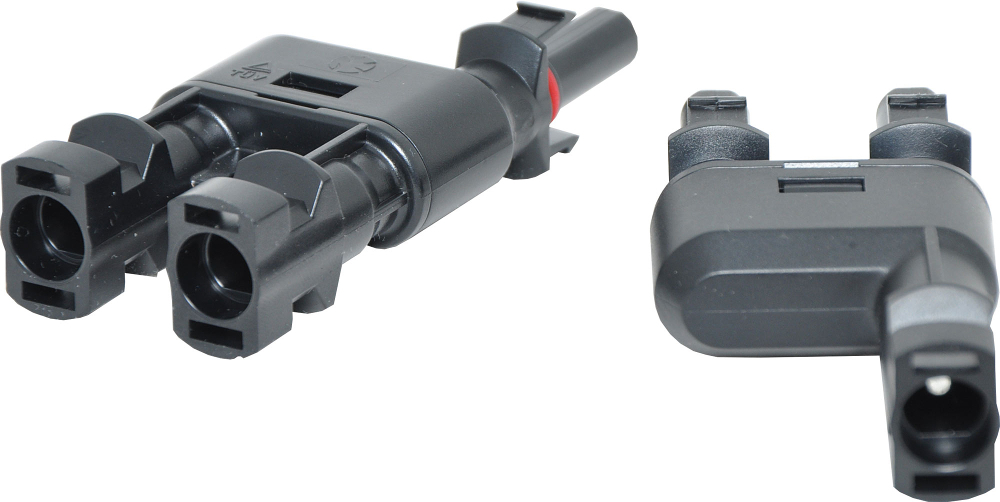

Dual line plug adaptor designed for use when daisy-chaining solar panels together. Water & dust proof - IP67 rated. Commonly used on photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations. Rated 30A @ 1000VDC (70°C).

Specifications:

  • Contact Material: Copper, Silver Plated
  • Insulation Material: PPO
  • Rated Current: 30A (2-4mm2)
  • Rated Voltage: DC 1000V TUV
  • Test Voltage: 6000V (50Hz, 1min)
  • Contact Resistance: 0.5mΩ
  • Protection Requirement: IP67
  • Safety Class: II
  • Flame Class: UL94 - V0
  • Insertion Force: = Withdrawal Force: >= 50N
  • Temperature Range: -40 ~ +90°C
  • Overvoltage Category/Polution Degree: CATIII/2

(P8611)

12 Months

SKU P8611
Model # P8611
Barcode # 9321758219621
Brand Amphenol LTW
Unit Of Measure each
