K-9325 SPARE MAIN BOARD SUITS D8XCEL4G - NESS

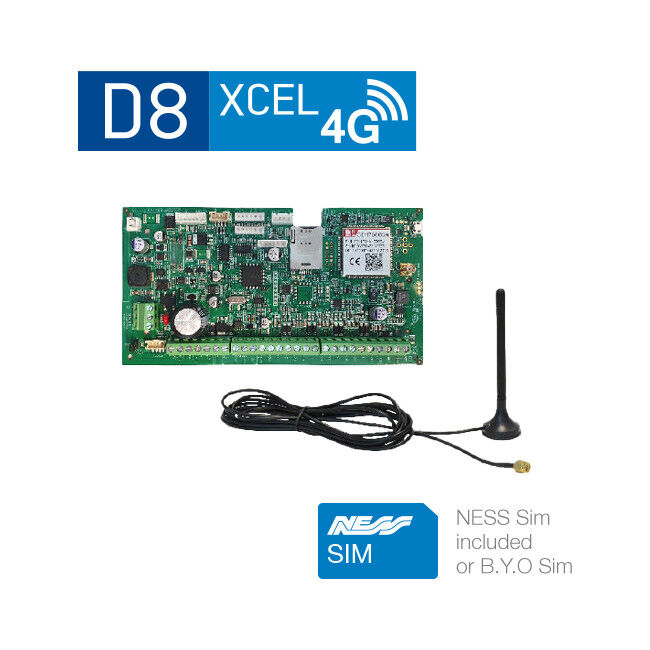

D8XCEL4G SPARE PCB INC 4G ANTENNA AND NESS SIM

Features:

• 8 or 16 alarm zones (D8XCEL4G/D16XCEL4G)

• Supports up to 3 mixed keypads (Navigator/Saturn/LCD) or 4 Navigator keypads

• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.

• Optional Ness Radio Interface for fully integrated wireless security.

• Programmable Two Area partitioning can split the panel into two independent areas plus a common area.

• Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time based user control.

• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.

• Supports control via internet using Ness iComms/aComms iPhone/iPad and Android apps and optional ethernet adapter.

• Home Mode allows partial arming, (eg, perimeter security overnight).

• Day Mode feature allows daytime monitoring of fire doors, coolrooms etc.

• Temporary Day Zone feature allows easy enabling/disabling of Day Mode.

• Keypad Panic and Duress feature.

• Two button arming feature.

• Fire Alarm feature with different siren tones.

• Highly flexible zone to output mapping.

• Onboard Vibration Sensor Analyser with programmable sensitivity. Use with Nessensor™ vibration sensors.

• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).

• Siren chirp and strobe flash on arming with radio key.

• Quiet chirps option on arm/disarm by radio key.

• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.

• 4 programmable auxiliary outputs (Up to 8 Aux outputs optional).

• Optional output expander.

• Enhanced serial data input/output via RS232.

• Automatic reset fuses.

• Programmable Reset Output lockout.

• 30 event memory from KPX and Saturn keypads. 80 event memory can be accessed using Navigator keypad or
• NessComms™.

• Standard defaults to suit most applications.

• Easy programming by keypad or NessComms™ software by direct connect.

• All programming data is permanently stored in a non-volatile memory.

• All inputs and outputs are heavily protected against lightning and high voltage supply transients.

• High efficiency DC power supply with dual 17VAC/20VDC power input
• Communicator

• 4G Communicator onboard

• Direct-connect upload/download using NessComms™ software.

• View system status and arm/disarm using NessComms™.

• Remote control of outputs via telephone with voice prompts.

• Operation via SMS messaging

• Programming via SMS

• Alarm reports via SMS self-monitoring or Central Station

• Central Station monitoring in ARMOR IP and CID formats

• Remote operation via the free NessXCEL SMS app


Specs

• BOX DIMENSIONS (W x Hx D)	235 x 300 x 90 mm (Plastic housing)
  POWERINPUT	17VAC or 20VDC
  AUX POWER OUTPUT	13.8v DC @ 800mA
  QUIESCENT CURRENT DRAW	80mA with 1 keypad
  RECHARGEABLE BATTERY	12 volt 7.0 Amp/hour Sealed lead Acid
  BATTERY CHARGING CURRENT	350mA maximum, current limited
  DYNAMIC BATTERY TEST	Backup battery is tested under load, hourly and on arming
  FUSES	2 Amp auto resetting / Siren output & Reset output. 500mA auto resetting / 12 volt auxiliary outputs. 200 mA auto resetting / Strobe output
  ZONE OUTPUTS	8 or 16 zone inputs (D8XCEL4G/D16XCEL4G) 2 x 24hr tamper inputs
  END OF LINE RESISTOR	Choice of 12 programmable values including N/C. Default 2200 Ohms (2.2k)
  MAXIMUM KEYPADS	3 (Sold Seperatly).
  INTEGRATED RADIO OPTIONS	Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 16 radio zones
  SERIAL HEADER	Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
  INTEGRATED ACCESS CONTROL	Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
  SIREN OUTPUT	On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
  STROBE OUTPUT	12v DC timed output. Maximum 2 x 1 Watt strobe lights
  RESET OUTPUT	12v DC timed output. Max. 3 x 12v piezo screamers
  EQUIPMENT POWER OUTPUT	13.8v DC output for powering detectors and other equipment. Maximum 500mA
  AUXOUTPUTS	Multi-pin connectors provides outputs Aux1~4, Aux5~8
