Overview

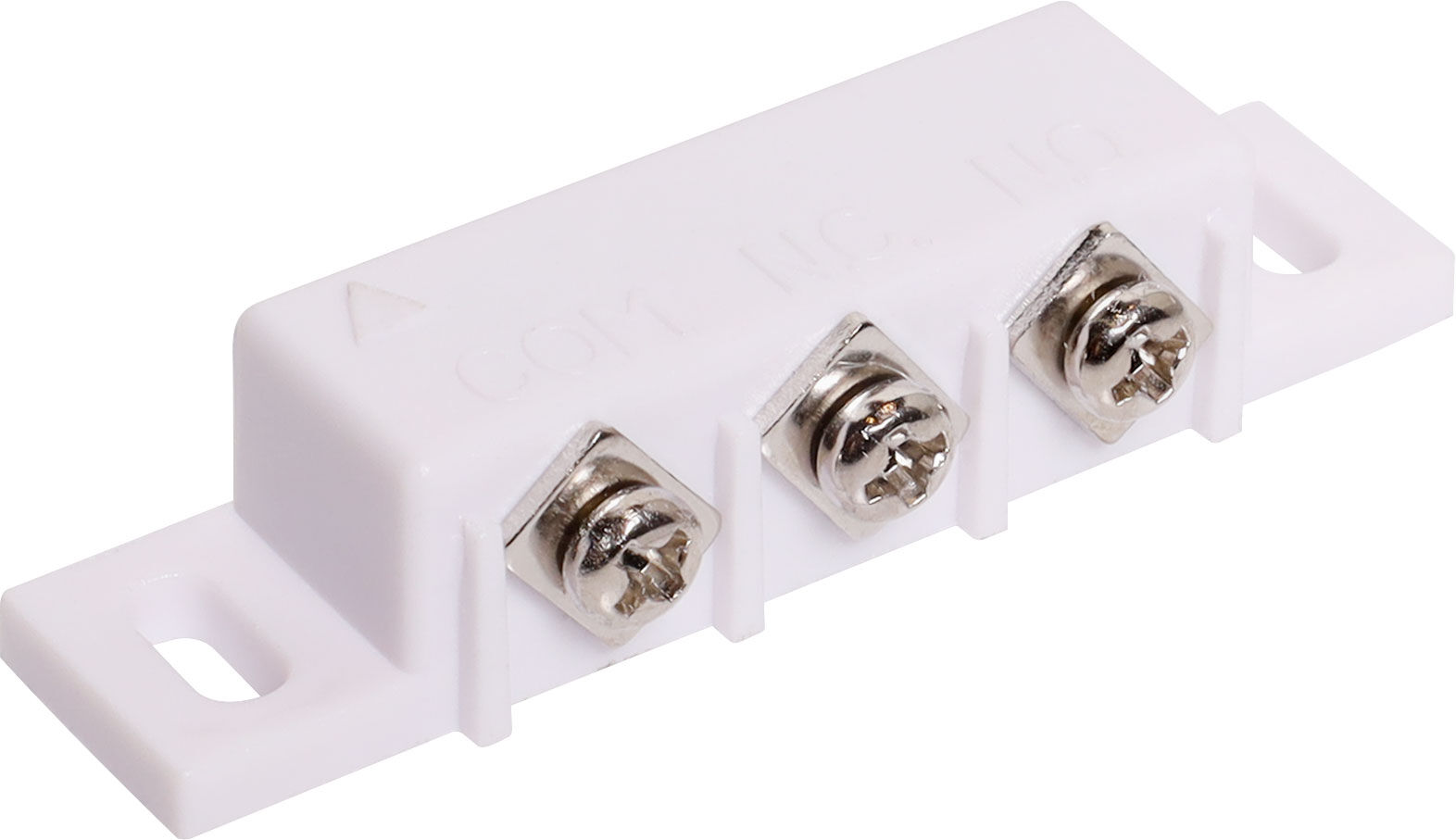

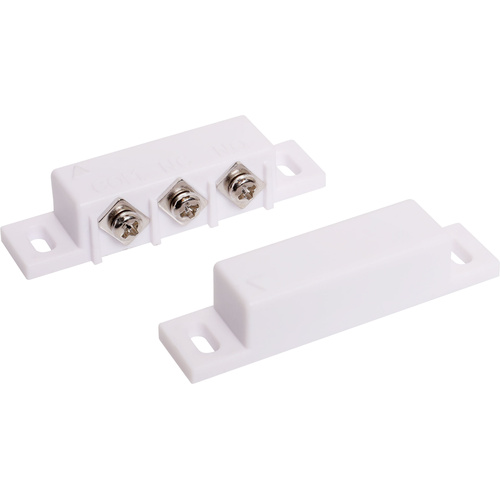

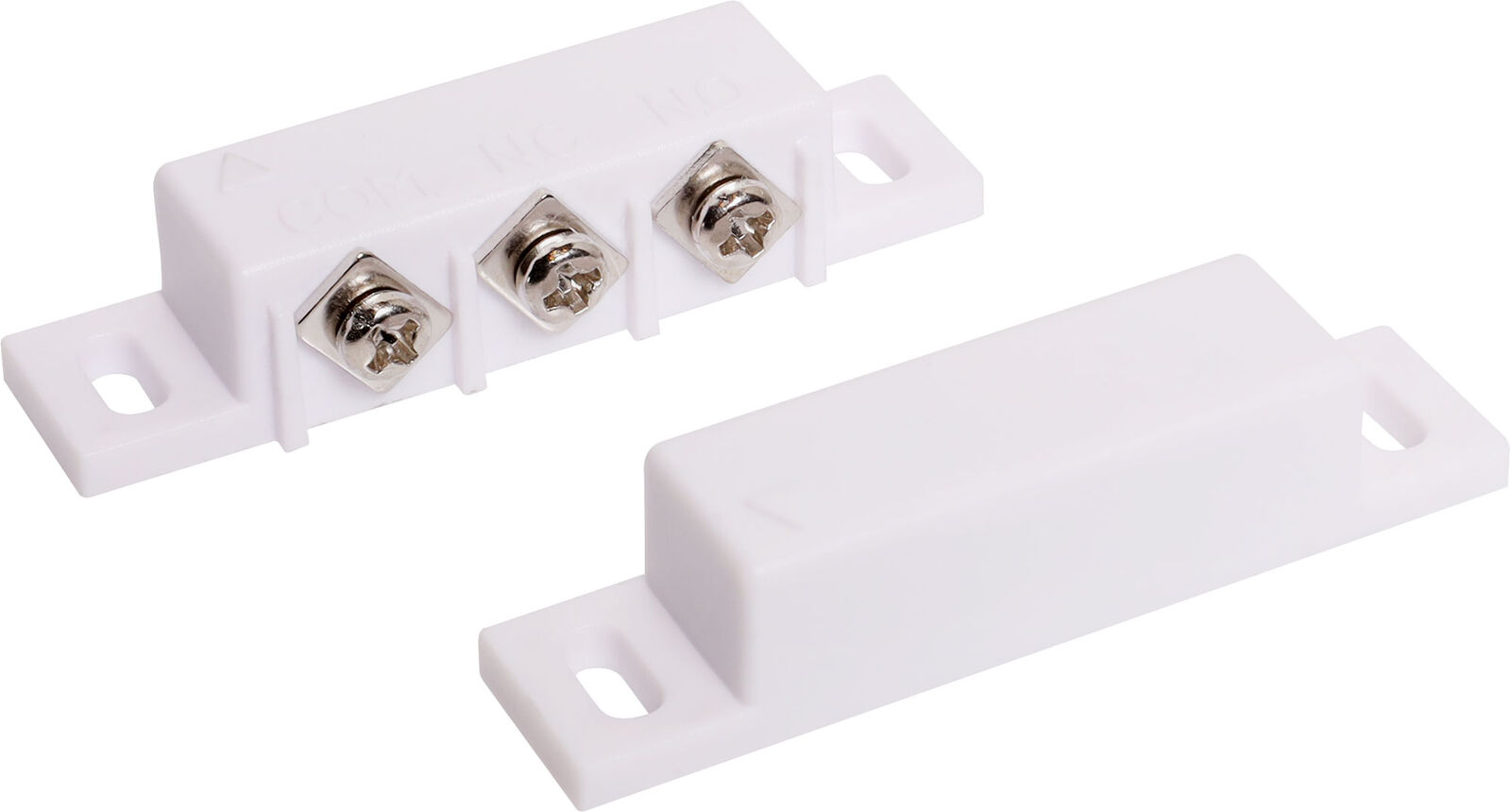

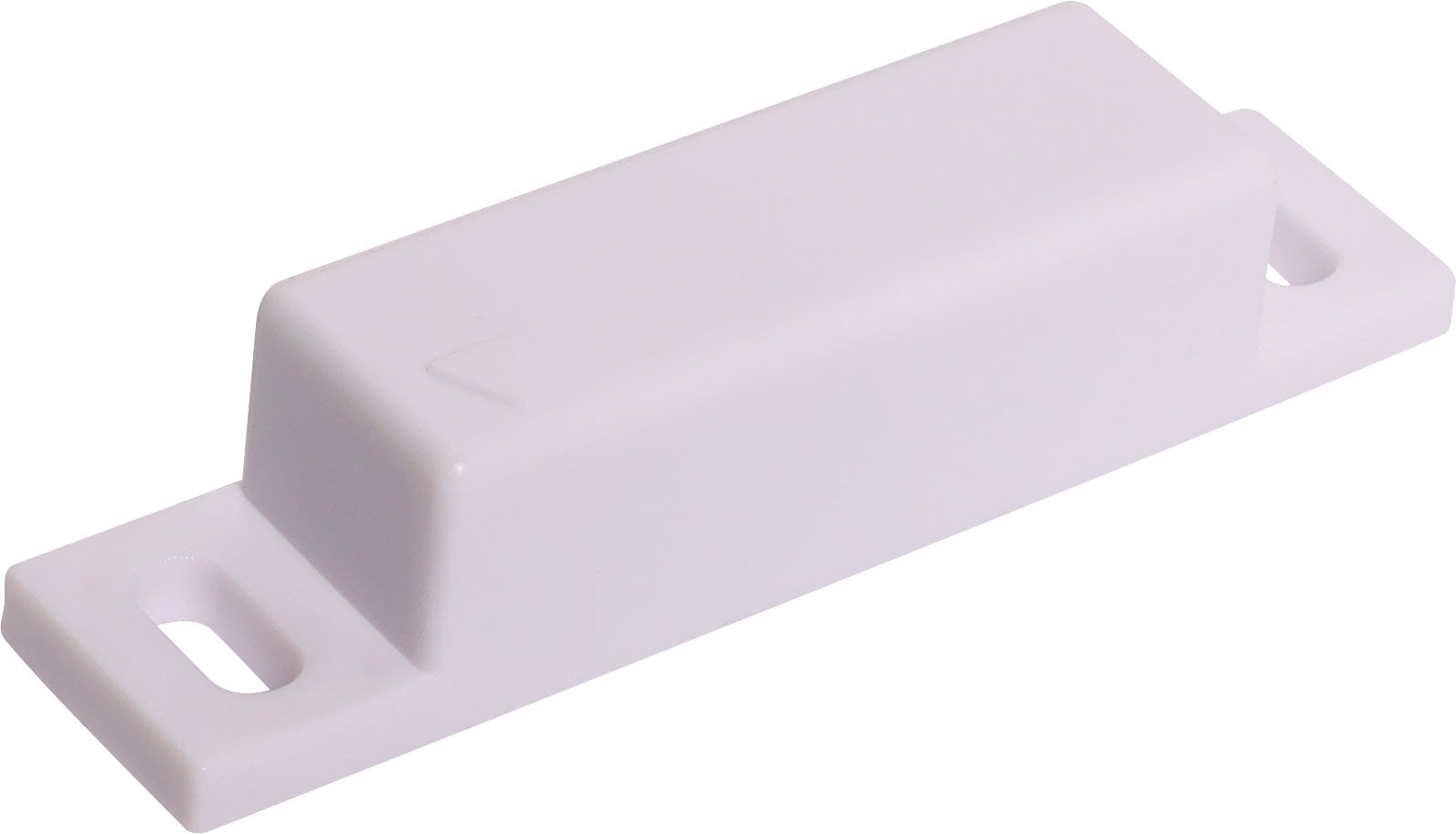

A small magnetic reed switch designed for surface mounting. Fitted with screw terminals. SPDT for N.O. and N.C. applications. Includes matching magnet. Approx. 55 x 12 x 11mm size.

Specifications

General:

  • Dimensions: 55 x 12 x 11mm
  • Material: ABS
  • Colour: White
  • Sensing Gap: 15-25mm
  • Output: COM (NO & NC)
  • Current/Voltage/Power: 0.2A/30V/3W
  • Installation: Screw mount
  • Connection: Terminals block wiring

Parameters:

  • Contact from: Form C
  • Voltage (V-max): 30V
  • Current (V-max): 0.2A
  • Rating (V-max): 3A
  • Contact Resistance (max): 100m?
  • Operate time (max): 0.5ms
  • Operating Frequency (max): 400Hz
  • Pull in Value: 08-35 AT
  • Contact capacitance (max): 0.5pF

    *Specifications are subject to change without notice

(S5153A)

SKU S5153A
Model # S5153A
Barcode # 9321758258866
