Split-Decoded Access Controller

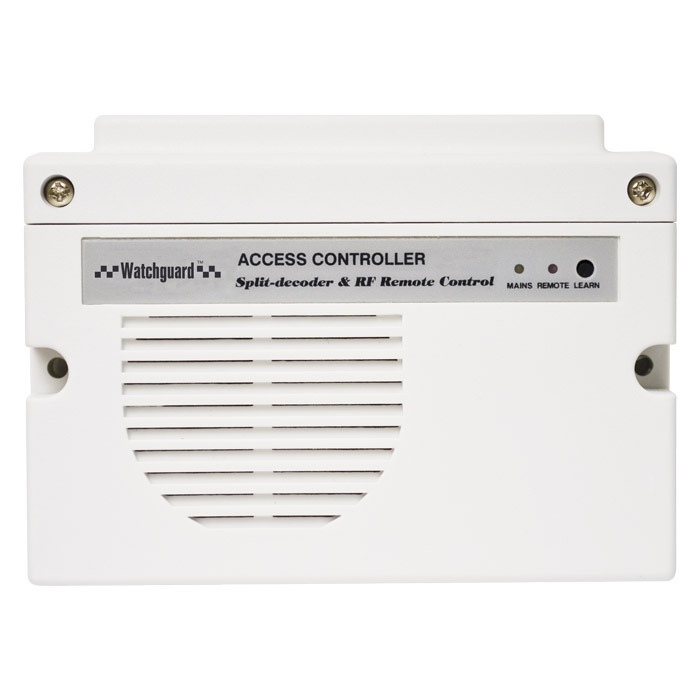

Typical access control keypads contain the switching relay and control wiring within the keypad. Despite tamper and other built-in alert systems, with the correct know-how, these keypads can be sabotaged to function by forcefully accessing the control wiring. In a split system, a decoder installed in a secure location, processes keypad codes and card/keyfob signals as data. This split processing means the door lock is triggered via the data, rather than the switching relay in the keypad. The ACRDR101 is an access controller that allows users to create a higher security, split-decoded keypad access control systems. The ACRDR101 is capable of decoding RFID card/keyfobs, keypad codes and remote control signals to provide an additional layer of security to standalone keypad access control systems. It features 3 output relays, built-in door chime and tamper alarm, and comes standard with 2 remote controls for output/door chime remote triggering. The additional control offered by the ACRDR101 is excellent for enhancing the security of the access control system, but it can also interface with other systems. It features control terminals for duress, egress, inter-lock and external alarms. It also features a customisable unauthorised access lock for incorrect unlock attempts.

Specifications

• Access Lock Modes: After 10 attempts: No lock / 60s / 15 minutes / Duress
• Alarm & Tamper: Built-in alarm; 3 minute tamper alarm duration
• Data I/O Support: Up to 3 readers/keypads in parallel
• Dimensions: 33 x 120 x 87mm
• Door Chime: Built-in door chime
• Ingress Protection: N/A
• Input Terminals: Door position, egress, inhibit output 1, door bell, tamper
• Material & Finish: Matte white plastic
• Maximum Remotes: Up to 40 remotes
• Operating Current: 65mA (standby) / 100mA (3 relays active)
• Operating Environment: -20°C ~ 70°C / RH95% (max)
• Output Modes: Start/Stop (toggle), momentary (timed)
• Output Relay 1: 5A / 24VDC with adjustable timer (N.C. & N.O. dry contacts)
• Output Relays 2 / 3: 1A / 24VDC (N.C. & N.O. dry contacts)
• Output Terminals: Duress, alarm, key active, inter-lock (100mA max)
• Power Input: 12 ~ 24VDC (auto adjusting)
• Remote Channels: Four: Output 1 / 2 / 3 / Door chime
• Remote Frequency: 433MHz
• Remote Power: 12V alkaline battery (not included)
• Remote Receiver: Super Heterodyne
• RemoteRange:60m (line of sight)
• Weight: 0.25kg
