SPRING ASSISTED FIREPLACE MANTEL TV MOUNT

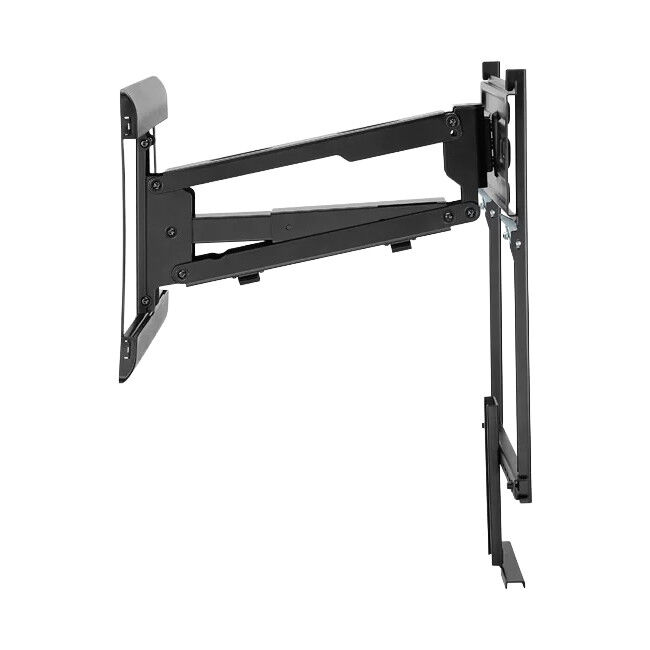

Ezymount VFP4850 Spring assisted over fire place mantel TV mount

Screen Sizes

43 to 70"

Weight

13 to 33 KG

Colour

Black

Vesa

Up to 600 x 400 mm

Features

Mount a TV over a Fireplace

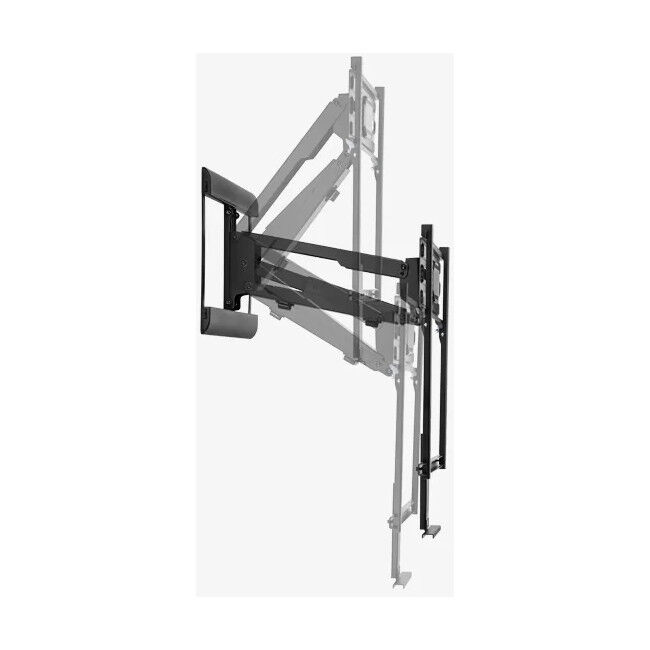

Strong spring-assisted movement
Extra long vertical rails allows perfect TV positioning
Extends from wall up to 587mm
Designed to fit 600mm studs

Living areas with a fireplace tend to become the centre of activity for most people – that’s why utilising the space above the fireplace to mount a TV makes great sense! The Ezymount VFP-4850 is the perfect mount for the job, having the ability to handle TVs from 43 to 70” weighing up to 33kg. Designed using a premium mechanical spring with advanced counterbalance technology allow users to effortlessly raise, lower and position the TV for an incomparable view.

Easy Installation

Good design and simple instructions combine to make mounting your TV a breeze. All necessary screws and hardware are included.

Package includes

Two vertical mounting rails, fully assembled articulated TV wall mount, wall plate covers, mounting hardware and assembly instructions.

Specifications

Colour	Black
Weight Capacity	13 to 33kg
Screen Sizes	43” to 70” (109 to 178cm)
Tilt Range	+3° to +9° (Tilt rangecan be affected by larger screen sizes)
Horizontal Swivel	60° (30° both left and right)
Mounting Screw Hole Pattern	VESA:200 x 200, 300 x 300, 300 x 200, 400 x 200,400 x 300, 400 x 400mm and 600 x 400compliant.
Distance from Wall	160 to 587 mm
Warranty	10 years
