This item is sold per "METRE"

If you order 5, you will get five metres.

Need a longer length?

This cable is also available as a 305 m roll.

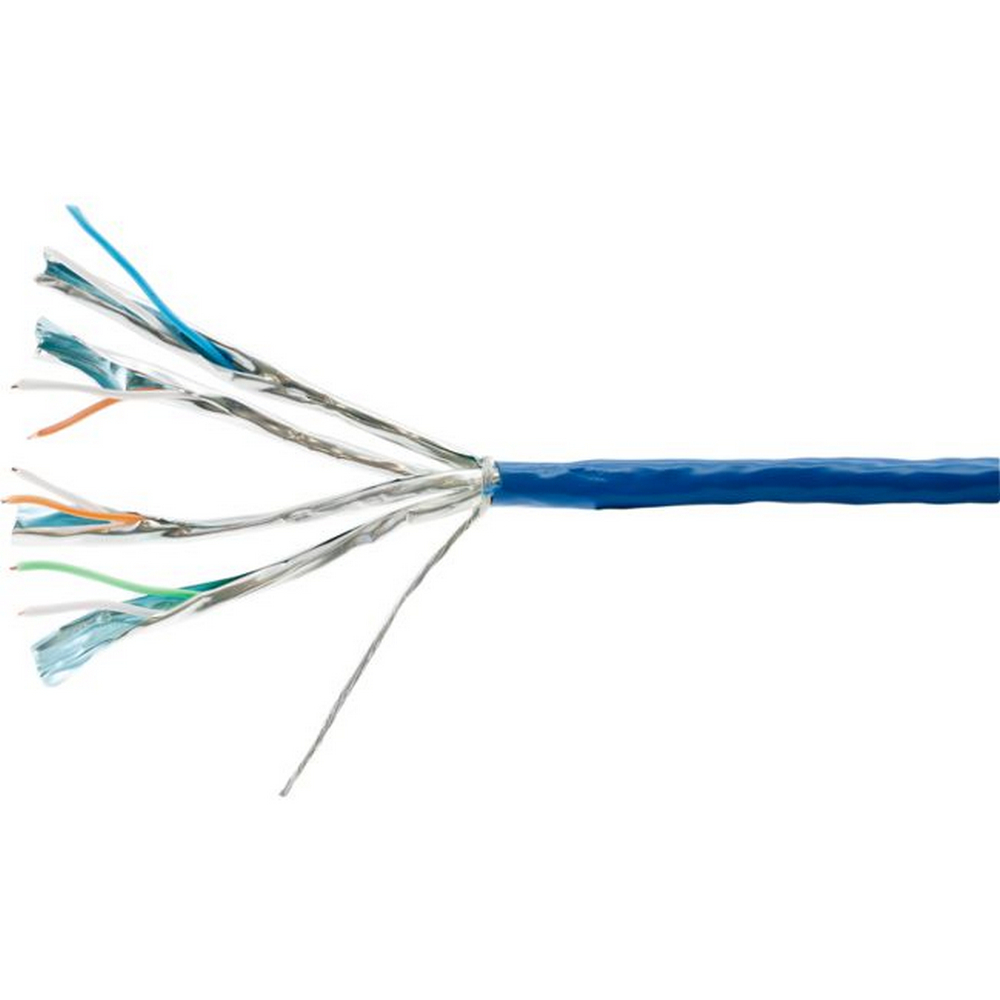

S/STP (Screened Shielded Twisted Pair) or S/FTP (ScreenedFoiled Twisted Pair) cabling offers shielding between the pair sets and an overall sheath shield within the cable. This type of shielding protects EMI from entering or exitingthe cable and also protects neighbouring pairs from crosstalk.

Specifications

Conductor
- Insulation:
  - Material: FO-PE and HD-PE
  - Diameter: 1.30 ± 0.02mm
  - Thickness: 0.37 ± 0.01mm
  - Colours (per pair):
    - Blue - Blue/White
    - Orange - Orange/White
    - Brown - Brown/White
    - Green - Green/White
- Conductor:
  - Material: Bare Copper
  - Diameter: 1/0.571 ± 0.01mm
Sheilding
- Outer Braid (loose): 16×4×1/0.12mm
- Aluminium Foil (per pair): 0.065×13mm
Jacket Insulation
- Colour: Blue
- Material: LSOH
- Diameter: 7.6 ± 0.01mm
- Thickness: 0.6 ± 0.02mm
- Tensile strength (minimum): 0.917Kg/mm²
Electrical Characteristics:
- Conductor Resistance (max): 9.38 Ω/100m at 20°C
- Resistance Unbalance (max): 5%
- Capacitance Unbalance (max): 330pF/100m
- Mutual Capacitance (max): 560pF/100m
