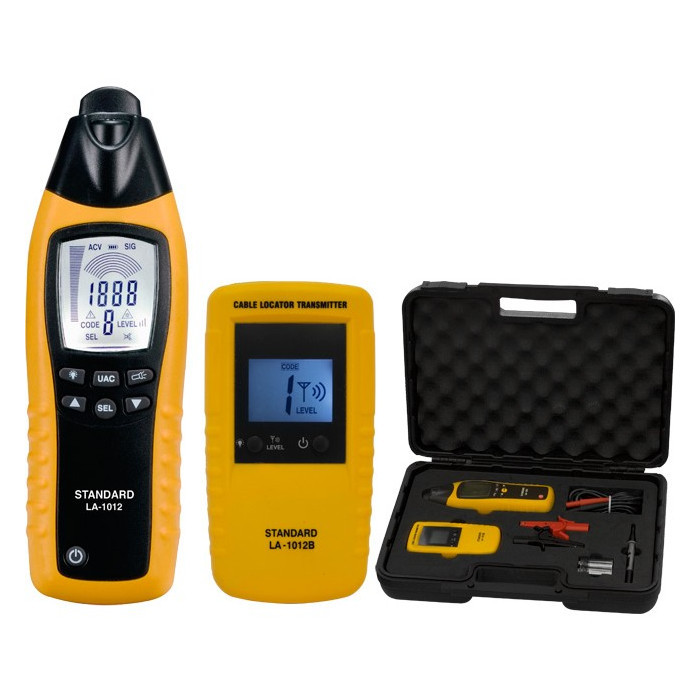

STANDARD CAT III 300V Cable Locator Tranmitter Receiver Set with Carry Case

This professional general purpose cable lacator is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose made carry case. The receiver also incorporates a torch function for working in dim light location.

Note:
Theprobe supplied in the box is not suitable for Australian power sockets

features:

For all applications ( live or dead cable ) without additional instruments
Set includes a transmitter and a receiver
Proven digitally coded sender signal guarantees clear signal identification
Transmitter with LCD-display for transmitting level, transmitting code and external voltage
Receiver with back light LCD display for level of receiving signal, code of receiving signal and live voltage indication
Automatic or manual adjustment of receiving signal sensitivity
Acoustical receiving signal switchable
Auto power off
Additional torch lamp function for working in dark environment

specifications:

Voltage measurement range: Transmitter: 12V, 50V, 120V, 230V, 400V
Frequency range: Transmitter: 0~60Hz
Output signal: Transmitter: 125kHz
Voltage: Transmitter: up to 400V AC/DC
Tracing depth cable location: Receiver: 0~2.5m wall/underground cables
Main voltage detection: Receiver: 0~0.4m
Size (H x W x D): 190mm x 60mm x 37mm
Weight: 229g

environment specifications:

Operating temperature: Transmitter: 0 to 40 °C,Receiver: 0 to 40 °C
Storage temperature: Transmitter: -20 °C to 60 °C, Receiver: -20 °C to 60 °C
Humidity (without condensation: Transmitter: Max. 80% relative, Receiver: Max. 80% relative
Operating Altitude: Transmitter up to 2000m, receiver up to 2000m
