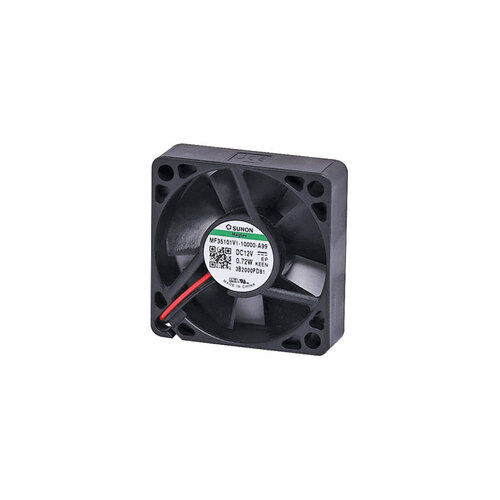

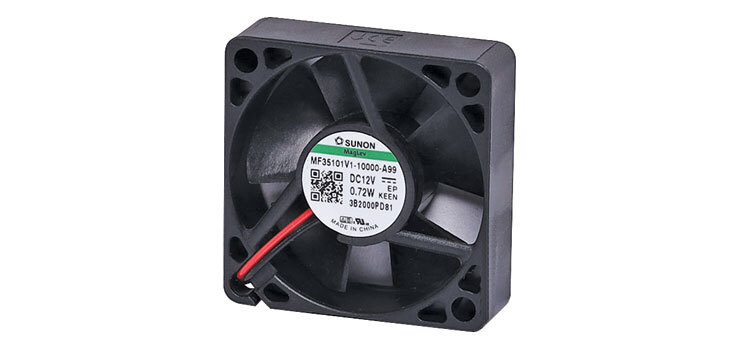

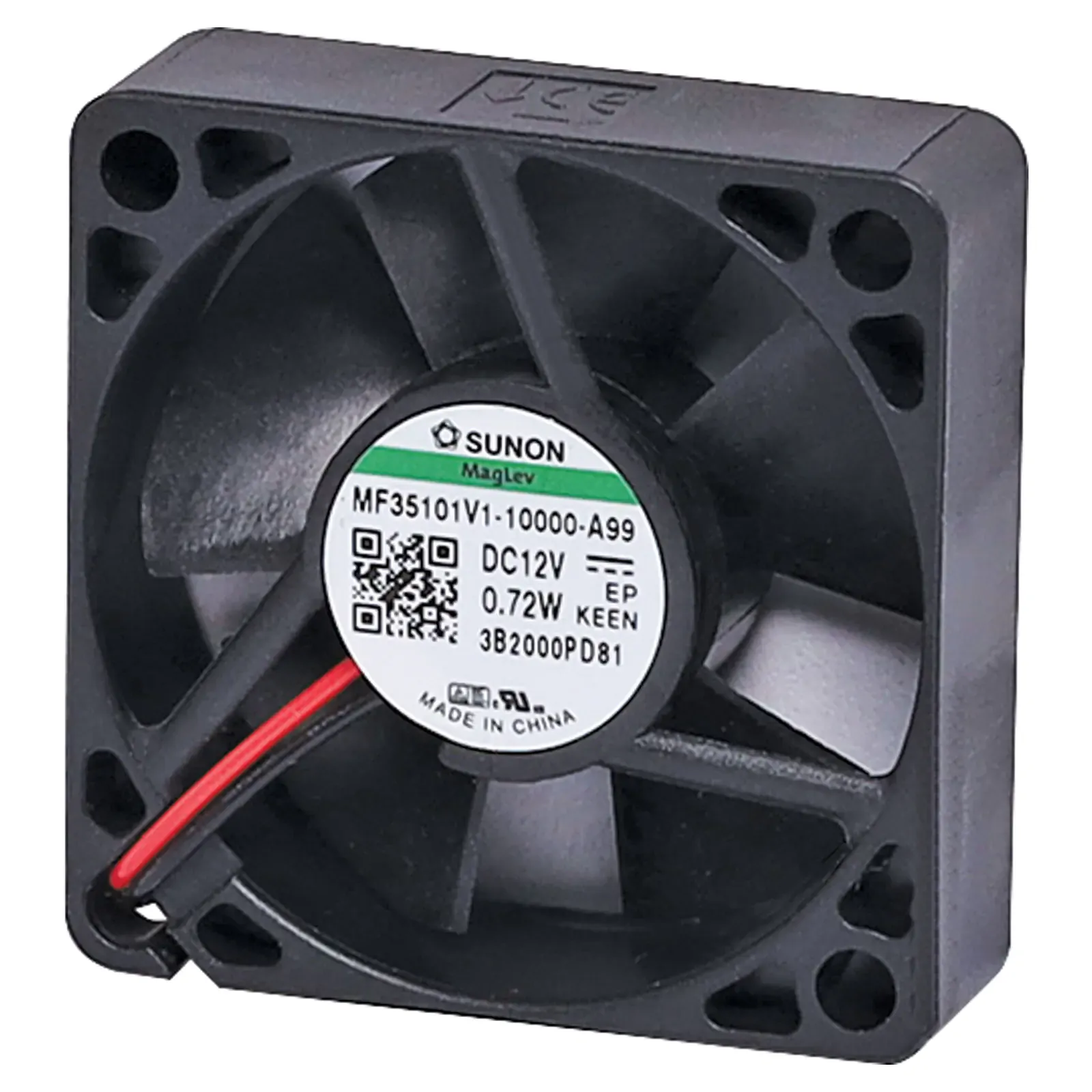

Sunon's maglev bearing system provides whisper quiet operation and superior resistance to dust and debris, extending the operational lifetime of the motor.

Specifications

  • Mechanical Characteristics
  • Motor Design: Single phase, 4 poles brushless DC motor
  • Bearing System: Vapo bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 3x 3.2mm holes
  • Weight: 10.5g
  • Dimensions: 35 x 35 x 10mm



  • Electrical Characteristics
  • Rated Voltage: 12V DC
  • Rated Current: 60mA (69mA max)
  • Rated Power Consumption: 0.72W (0.83W max)
  • Operating Voltage Range: 6~13.8V DC
  • Starting Voltage: 6V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C



  • Performance Characteristics
  • Rated Speed: 10,000 RPM ±15% at rated voltage
  • Air Flow: 7.2 CFM
  • Static Pressure: 0.22 Inch-H2O
  • Noise Level: 28dB(A)
  • Insulation Class: UL Class A
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
  • Protection: Automatic restart, polarity protection

(F1105)

12 month warranty

SKU F1105
Model # MF35101V1-10000-A99
Barcode # 9321758070239
Brand SUNON
Unit Of Measure each
