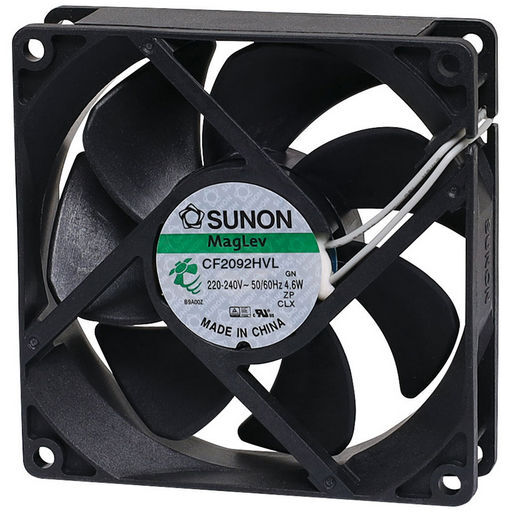

• Sunon 240V Maglev Vapo-bearing Fan - 92x92x25mm, 2900 RPM speed, 52CFM and 31dB(A) noise level. Designed for use in refrigeration
  • MAGLEV VAPO-BEARING FAN 240VAC
  • A 240V AC 92mm Sunon Maglev/Vapo Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation.
  • Powered from 2-core bare wire.
  • Motor Design: 2 phases, 4 poles brushless DC motor
  • Motor Protection: Impedance protected
  • Bearing System: Vapo bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 119.7g
  • Dimensions: 92 x 92 x 25mm
  • Rated Voltage: 220-240V AC at 50/60Hz
  • Rated Current: 225mA (230mA max)
  • Input Power: 4.2W
  • Rated Speed: 2900 RPM
  • Air Flow: 52 CFM
  • Noise Level: 31dB(A)

(FAN9225-240-302)

SKU FAN9225-240-302
Model # FAN9225-240-302
Brand SUNON
