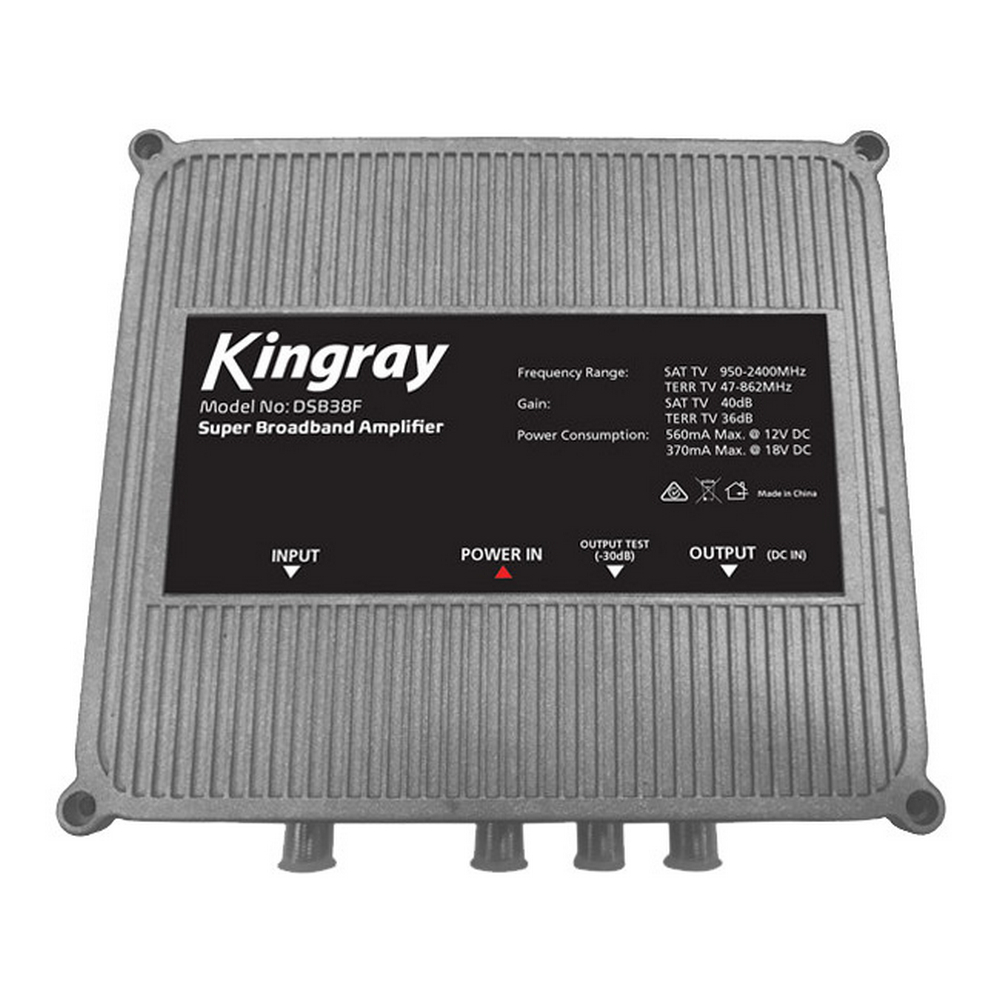

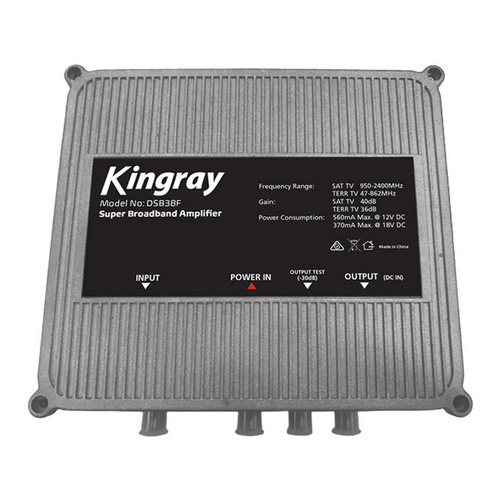

The Kingray DSB38F is a high gain Terrestrial and Satellite Distribution Amplifier for use in SMATV applications.

• It features a combined single input and single output connector, with adjustable gain and equalisation controls, as well as input attenuation, therefore making it an ideal distribution amplifier for a multistacker installation.

Features

• Frequency Range 47-862 MHz & 950-2400 MHz
• 36dB Maximum Gain (Terrestrial)
• 41dB Maximum Gain (Satellite)
• 10dB Gain Control
• 10dB Equalisation Control
• -10dB Attenation Switch on the input
• -30dB Test Port
• Maximum Output Figure of 120dB for Terrestrial (60dBuV IMR3 DIN45004B)
• Maximum Output Figure of 122dB for Satellite (35dBuV IMR3 EN50083-3)
• Connectors: F-Type
• Power Consumption: 560mA @ 12V DC
• Power Consumption: 370mA @ 18V DC
• Operating Voltage: 12-18V DC
• Can be locally or remotely powered via the RF output
• Power Supply purchased separately - Any of the following can be used: PSK18M, PSK124F or PSK183F

Specifications

• Frequency Range Terrestrial FTA 47-862 MHz
• Frequency Range Terrestrial Satellite 950-2400 MHz
• Input/Outputs 1 x Input / 1 x Outputs
• Test Port -30dB
• Maximum Gain
  1. FTA 36dB
  2. Satellite 41dB Max.
• Input 105dB Min. Input 70dB
• Return Loss >10dB
• Gain Control 10dB FTA
• Equalisation 10dB Satellite Equalisation 10dB Satellite Input Attenuator -10dB FTA Input Attenuator -10dB
• Maximum Output Level
  1. FTA - IMB3 = 60dB (DIN450004B) 120dB
  2. Satellite - IMB3 = 35dB (EN50083-3) 122dB
• Supply Voltage 12V or 18V DC
• Max. Current Consumption 560mA @ 12V DC 370mA @ 18V DC
• Powering Options
  1. Option 1 Locally via a PSK124F or PSK18F
  2. Option 2 Remotely via the RF input (800mA max.)
• Dimensions in mm 183 (L) x 150 (W) x 52 (H)
• Weight 880g
