Brand New

Selling Unit EACH

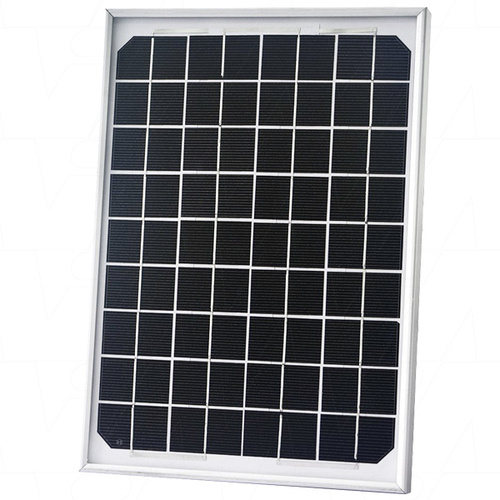

Description 12V 10W Symmetry Monocrystalline Solar Module with 8 metre fly leads and no connector
Voltage 12V
Size 10W
Width 235mm
Height 25mm
Length/Breadth/Depth 335mm
Weight 1200g

 Symmetry Solar Panels

The Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems. Available in a range of sizes from 5 watts up to 160 watts and use German manufactured mono-crystalline, A grade cells in a robust aluminium frame.

Features:

  • Product range - products range from 5 watts to 160 watts
  • High efficiency mono-crystalline silicon solar cells
  • Low iron, high transmission glass is used for strength and high power output
  • Weather-resistant IP65 junction box
  • Framed with a strong, robust and corrosion-resistant aluminium frame with multiple mounting holes for ease of installation
 Rated Power (watts)   10W
 Nominal DC Voltage  12V
 Open Circuit Voltage  22.3V
 Max. Power Voltage  17.8V
 Short Cuircuit Current  610mA
 Max. Power Current  560mA
 Max. System Voltage  1000VDC
 Power Tolerance  +/- 3%
 Temperature Range  -40°C to +85°C
 Temperature Coefficient (pmp)  -0.48% / °C
 Cell Technology  Monocrystalline
 Number of cells  36
 Junction Box  Yes, IP65, Openable

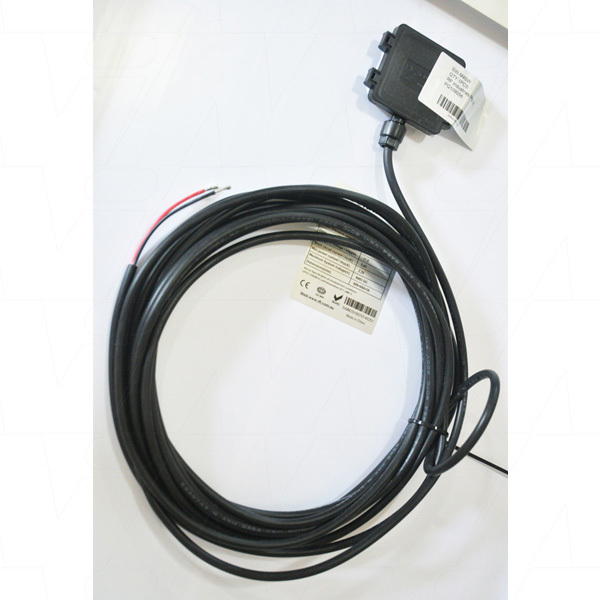

 Connectors / Output Cable  8 Metres - No Connector


(64901-002)

SKU 64901-002
