Overview

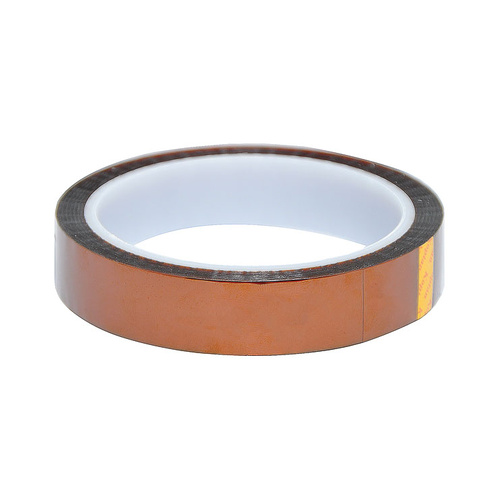

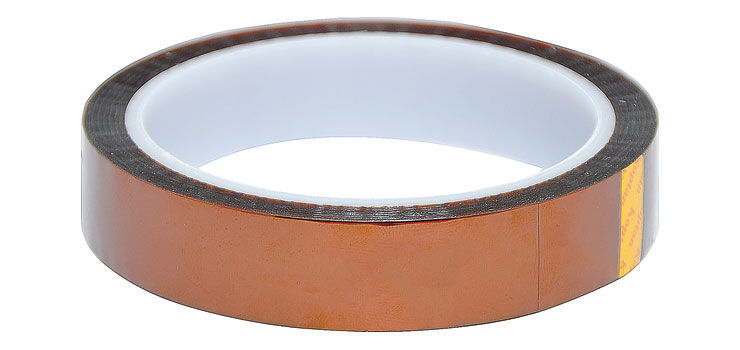

These 33m rolls of 16mm wide, high temperature polyimide tape offer high heat resistance and excellent dielectric strength. The tape removes cleanly without leaving a residue, making it ideal for use in electrical insulation or masking circuit boards during wave soldering.

Typical Applications

  • Magnet wire and cable
  • Slot liner insulation
  • lnter-layer insulation in motors and transformers
  • Flexible PCBs
  • Solder masking
  • 3D printing

Specifications

  • Total Thickness: 60±2µm
  • Backing Thickness: 25µm
  • Initial Tack: 25±2
  • Adhesion to Steel: 6.5±1
  • Holding Power: ?72hrs
  • Tensile Strength: 90
  • Elongation at Break: 70%
  • Max Temperature resistance: 260*C
  • Tape Structure: Silicon adhesive Pi film

(T2973A)

SKU T2973A
Model # T2973A
Barcode # 9321758227336
