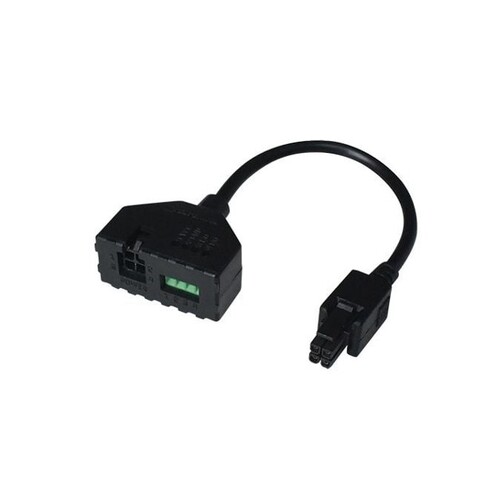

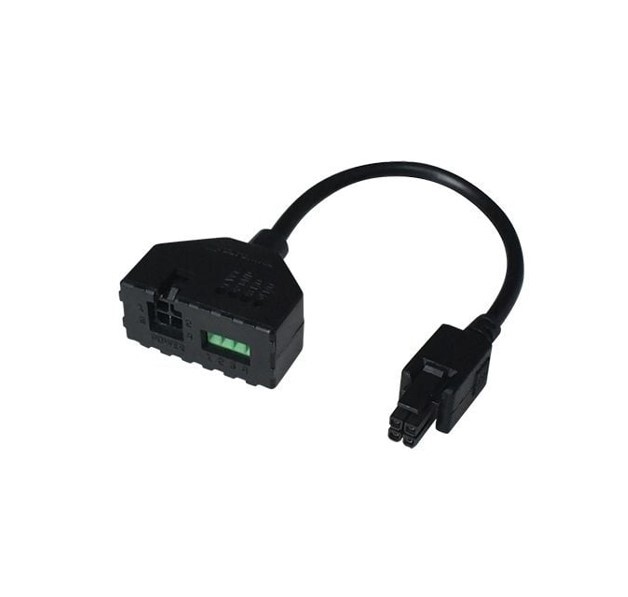

Teltonika 4-PIN POWER ADAPTER WITH I/O ACCESS

This 4-PIN power connector adapter allows you to easily access I/O functionality for compatible Teltonika Networks devices. It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs.
TECHNICAL DATA

  • Input connector :4-pin, 3 mm pitch and 4-way screw terminal block
  • Output connector: 4-pin, 3 mm pitch
  • Cable: 4 x 0.20 mm² (24 AWG), 100 mm
  • Screwdriver type Micro: slotted
  • Weight: 15 g.

CONNECTION DATA

  • Conductor cross section solid / flexible 0.14 - 0.50 mm² (26 - 20 AWG)
  • Conductor cross section flexible, with ferrule, with plastic sleeve 0.25 - 0.30 mm² (23 - 22 AWG)

Pinout

  • 1 Pin: Power +
  • 2 Pin: Ground -
  • 3 Pin: Input/Output
  • 4 Pin: Input/Output

(PR5MEC21)

24
SKU PR5MEC21
Model # PR5MEC21
Barcode # PR5MEC21
Brand Teltonika
